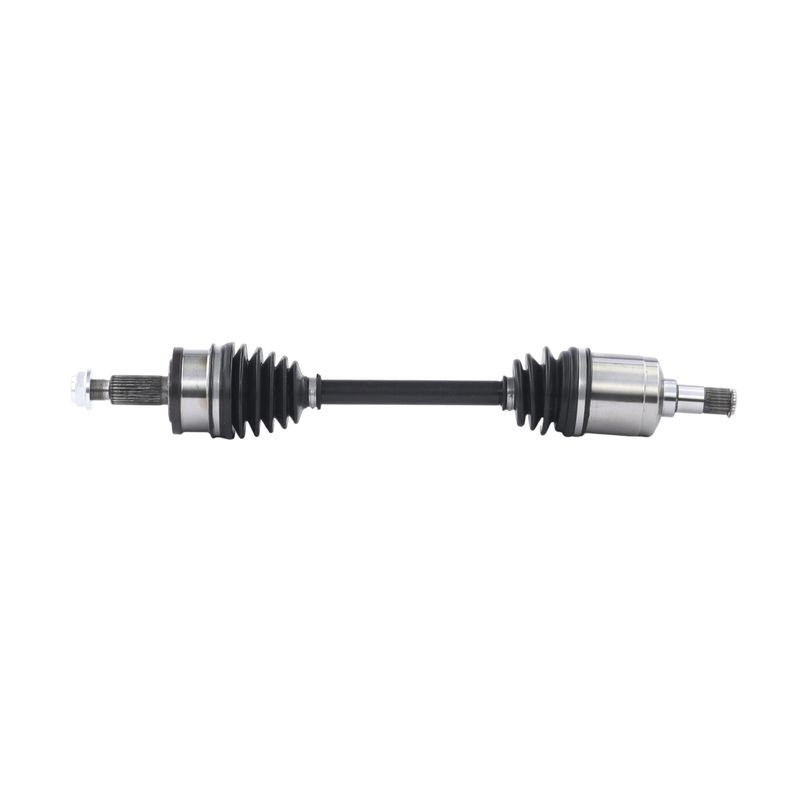

TrakMotive CH-86067 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86067 |
|---|---|
| Position | Front Right |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | Yes |
| ABS Tone Ring Tooth Quantity | 48 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.88 |
| Overall Compressed Length (mm) | 606 |
| Overall Extended Length (in) | 26 |
| Overall Extended Length (mm) | 660 |
| Product line | AAR CV Axle Shaft |
| Fits | Dodge · 3 vehicles |
OE-style replacement. Built as an AAR CV axle shaft for application-specific driveline service.
ABS-ready design. Magnetic tone ring with 48 teeth supports wheel speed signal transfer.
Premium-grade construction. Neoprene boots and a self-locking axle nut support dependable service fit.
Cross-references TrakMotive CH-86067 for the same application. See all 1.
Overview
The TrakMotive AAR CV Axle Shaft, part number CH-86067, is built for direct replacement on select applications that require an AAR-style front axle assembly. It combines a magnetic ABS ring, included axle nut, and premium-grade construction for a service-ready driveline repair.
Compatible with 2021-2023 Dodge Charger, front right. This part cross-references TrakMotive (e.g., CH-86067) for the same application.
Key Features
- Magnetic ABS ring with 48 teeth for wheel speed signal transfer.
- Included axle nut with M22x1.5 thread, hex head, and self-locking design.
- Neoprene boot material on both joints for added sealing support.
- 24 inboard splines and 27 outboard splines for application-specific fitment.
- Overall compressed length of 23.88 in and extended length of 26 in.
Product Details
The CH-86067 CV axle shaft is engineered for the front right position on select Dodge Charger models with OE AAR design requirements. Its magnetic ABS tone ring and conventional outboard joint help maintain proper driveline and wheel speed sensor function, while the male inboard joint with spline connection supports accurate engagement. TrakMotive identifies this AAR CV Axle Shaft as a premium-grade replacement, and the CH-86067 part number is useful when matching the correct axle for service work.
Common Repair Uses
- Restoring driveline operation after CV joint wear or axle shaft damage.
- Addressing clicking, vibration, or binding from a worn axle assembly.
- Replacing a damaged ABS tone ring or sensor-related axle component.
- Correcting fitment issues caused by incorrect spline count or shaft length.
Installation Notes
Verify OE AAR design requirements, front right position, spline count, and axle length before installation. Confirm the axle nut thread size and socket size match the vehicle specification. The CH-86067 is listed for non-ABS applications unless otherwise noted, so confirm ABS configuration before ordering.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified manufacturing processes for this product line.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Dodge | Charger | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Dodge | Charger | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Dodge | Charger | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
