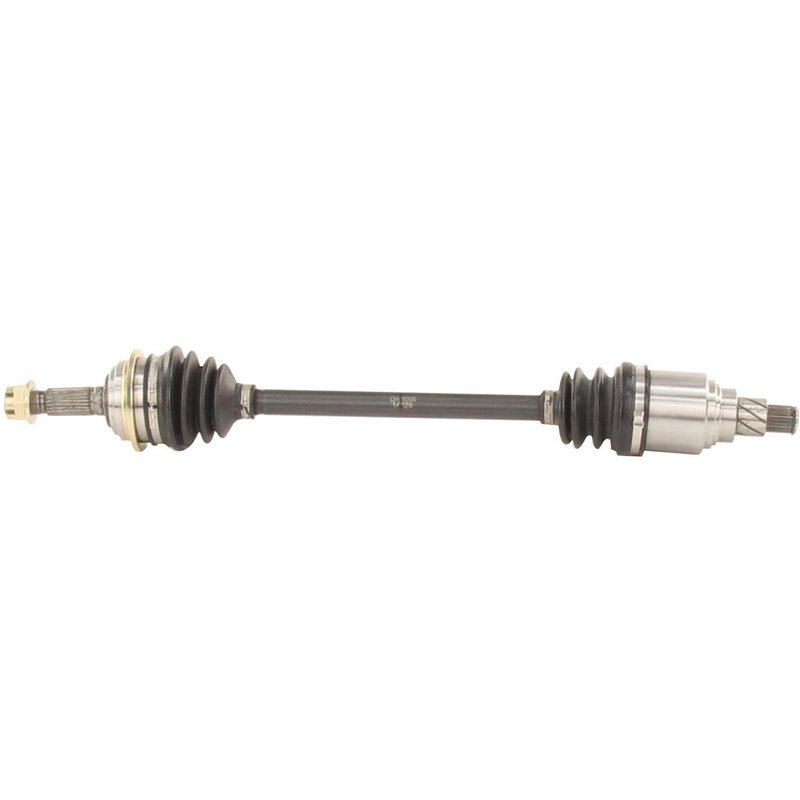

TrakMotive DA-8005 CV Axle Shaft - Front Left

Overview of the TrakMotive CV Axle Shaft DA-8005

The TrakMotive CV Axle Shaft DA-8005 is designed to provide reliable driveline performance for vehicles requiring precise axle specifications. This new CV axle shaft is engineered with durable neoprene boots and a cotter pin locking axle nut to ensure secure and long-lasting operation.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: DA-8005
• Axle Nut Type: Hex head with cotter pin locking
• Axle Nut Dimensions: 5/6 inch height (21 mm), 1 1/6 inch hex size (30 mm), 1 1/3 inch length (34.6 mm)
• Thread Size: M22 x 1.5
• Boot Material: Neoprene for enhanced durability
• Inboard Joint Type: Male with 23 splines
• Outboard Joint Type: Conventional with 24 splines
• Overall Compressed Length: 25.08 inches (637 mm)

Detailed Product Description

The TrakMotive CV Axle Shaft DA-8005 is part of the CV Axle Shaft product line, which focuses on delivering dependable constant velocity components for driveline systems. This axle shaft features a neoprene boot that resists wear and environmental damage, helping to maintain joint integrity over time. The inboard joint uses a male connection style with 23 splines, while the outboard joint is conventional with 24 splines, ensuring compatibility with specific vehicle drivetrains. The included axle nut is a hex head type with a cotter pin locking mechanism, providing secure fastening and preventing loosening during operation. With an overall compressed length of 25.08 inches, this axle shaft is engineered to meet precise fitment requirements.

Common Applications and Issues Addressed

• Replacement for worn or damaged CV axle shafts in compatible vehicles
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Fixes axle nut loosening problems with cotter pin locking design
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft DA-8005, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify spline alignment on both inboard and outboard joints to avoid premature wear. The neoprene boot should be inspected for proper seating to maintain joint protection. This part is designed for direct replacement and should be compatible with vehicles requiring the specified spline counts and axle nut dimensions.

Quality Assurance and Warranty

TrakMotive manufactures the DA-8005 CV Axle Shaft to meet industry standards for durability and performance. This new axle shaft undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, TrakMotive products typically come with coverage against manufacturing defects. Consult product documentation or supplier information for warranty terms.
