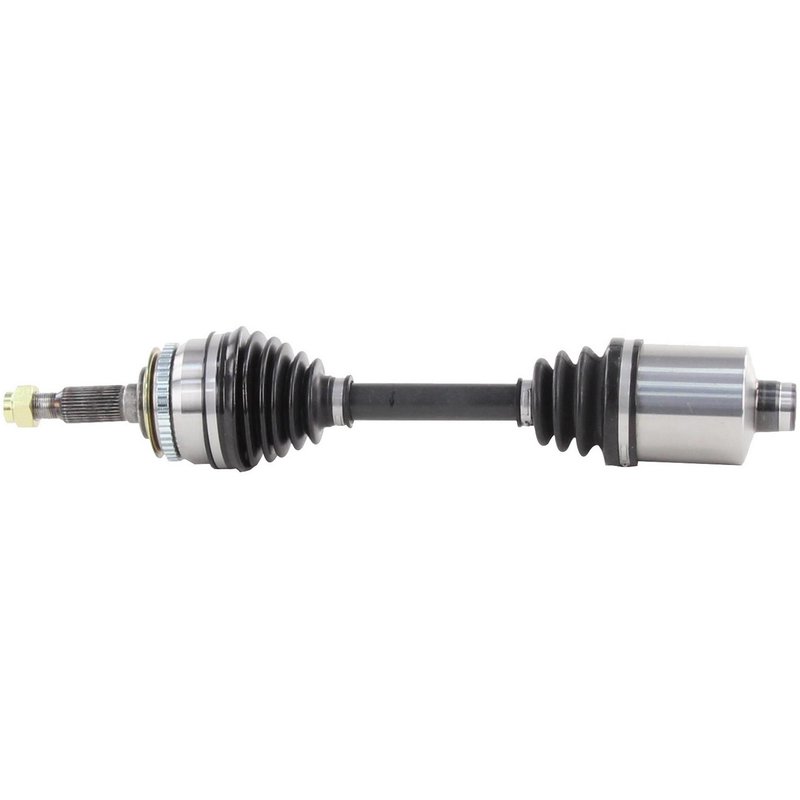

TrakMotive DW-8005 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft DW-8005

The TrakMotive CV Axle Shaft DW-8005 is engineered for reliable driveline performance in compatible vehicles. Designed with precision, this new CV axle shaft includes essential components such as a neoprene boot and a toothed ABS ring to ensure durability and proper fitment.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: DW-8005
• ABS Ring Tooth Count: 47
• ABS Ring Type: Toothed with tone ring included
• Axle Nut: Hex head, stake locking type, included
• Boot Material: Durable neoprene
• Inboard Joint Type: Female with 34 splines
• Outboard Joint Type: Conventional with 33 splines
• Overall Compressed Length: 20.47 inches (520 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV axle shafts designed to meet OEM specifications. This line emphasizes compatibility and durability, featuring components such as neoprene boots and ABS tone rings to maintain vehicle safety systems and driveline integrity. The DW-8005 model is part of this line, offering a precise fit with a hex head axle nut and a stake locking mechanism for secure installation.

Technical Specifications and Features

The DW-8005 CV axle shaft includes a 47-tooth ABS ring with a toothed design and an included tone ring, which supports accurate ABS sensor readings. The axle nut is a hex head type measuring 30 mm across flats, with a length of 34.6 mm and a height of 21.5 mm, featuring a stake locking type to prevent loosening. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint. The inboard joint is female type with 34 splines, while the outboard joint is conventional with 33 splines, ensuring compatibility with specific vehicle driveline configurations. The overall compressed length of 20.47 inches (520 mm) is designed to fit within the specified vehicle applications.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in compatible vehicles
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures axle assembly with included stake locking hex nut

Installation Notes and Tips

Ensure compatibility with your vehicle’s make and model before installation. The included hex head axle nut requires a 30 mm socket for proper torque application. Stake locking type nut should be properly staked to prevent loosening during operation. Inspect the CV boot for any damage during installation and verify the ABS tone ring is correctly positioned for sensor alignment. Professional installation is recommended to maintain driveline safety and performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft DW-8005 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to ensure long-term durability and proper function. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable operation in compatible vehicles.
