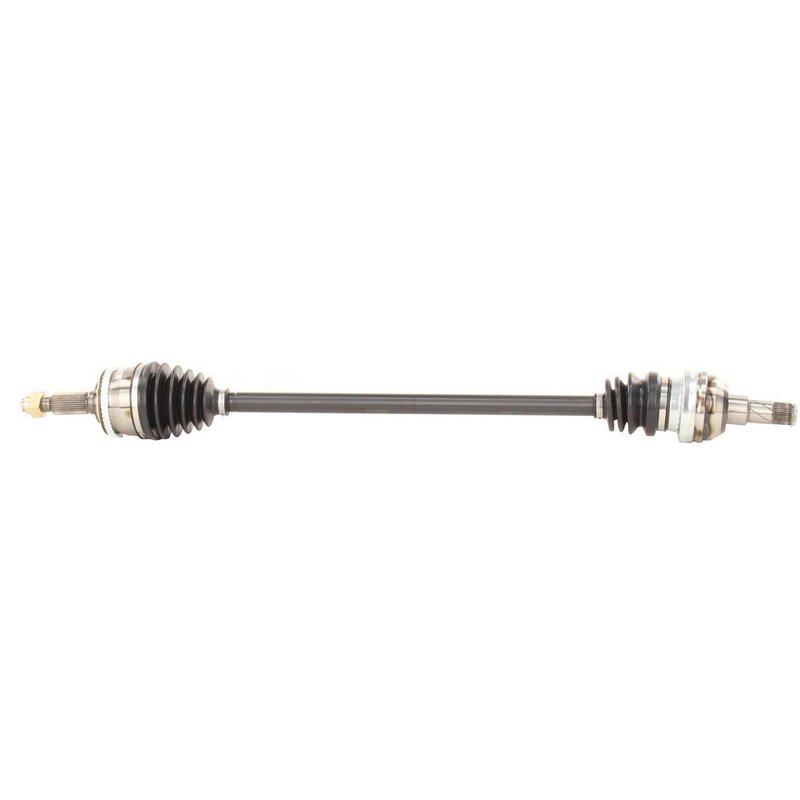

TrakMotive DW-8023 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft DW-8023

The TrakMotive CV Axle Shaft DW-8023 is engineered for reliable driveline performance in compatible vehicles. Designed with precision, this new CV axle shaft includes essential components such as a neoprene boot and a toothed ABS tone ring to ensure smooth operation and durability.

• Includes a 47-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Comes with a neoprene boot for enhanced protection against contaminants
• Equipped with a hex head axle nut (M20*1.5 thread size) featuring a stake locking mechanism
• Inboard joint type is male with 34 splines; outboard joint is conventional with 33 splines
• Overall compressed length of 35.91 inches (912 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to meet OEM specifications. This line emphasizes quality materials such as neoprene boots and includes ABS tone rings to maintain proper ABS sensor function. The DW-8023 model exemplifies this approach by combining robust joint designs and secure axle nut features to support driveline integrity.

Technical Description and Specifications

The DW-8023 CV axle shaft features a male inboard joint with 34 splines and a conventional outboard joint with 33 splines, ensuring compatibility with specific vehicle drivetrains. The included ABS tone ring has 47 teeth and a toothed design, which is critical for accurate ABS sensor readings. The axle nut is a hex type with a 30 mm hex size and a length of 34.6 mm, secured by a stake locking method to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the axle shaft.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts causing vibration or noise
• Restores proper ABS sensor function by providing a compatible ABS tone ring
• Addresses axle nut loosening issues with a stake locking design
• Prevents grease leakage and contamination with durable neoprene boots
• Ensures correct spline engagement for secure drivetrain connection

Installation Notes and Tips

When installing the TrakMotive DW-8023 CV axle shaft, verify compatibility with your vehicle’s make and model to ensure proper fitment. Use the included hex axle nut with the specified M20*1.5 thread size and torque to manufacturer specifications. Inspect the neoprene boot for any damage before installation and ensure the ABS tone ring aligns correctly with the sensor. Proper spline engagement on both inboard and outboard joints is essential for driveline performance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet industry standards for durability and performance. The inclusion of a neoprene boot and a stake locking axle nut reflects attention to long-term reliability. Warranty details should be confirmed with the product provider, but TrakMotive parts typically adhere to standard manufacturer warranties covering defects in materials and workmanship.
