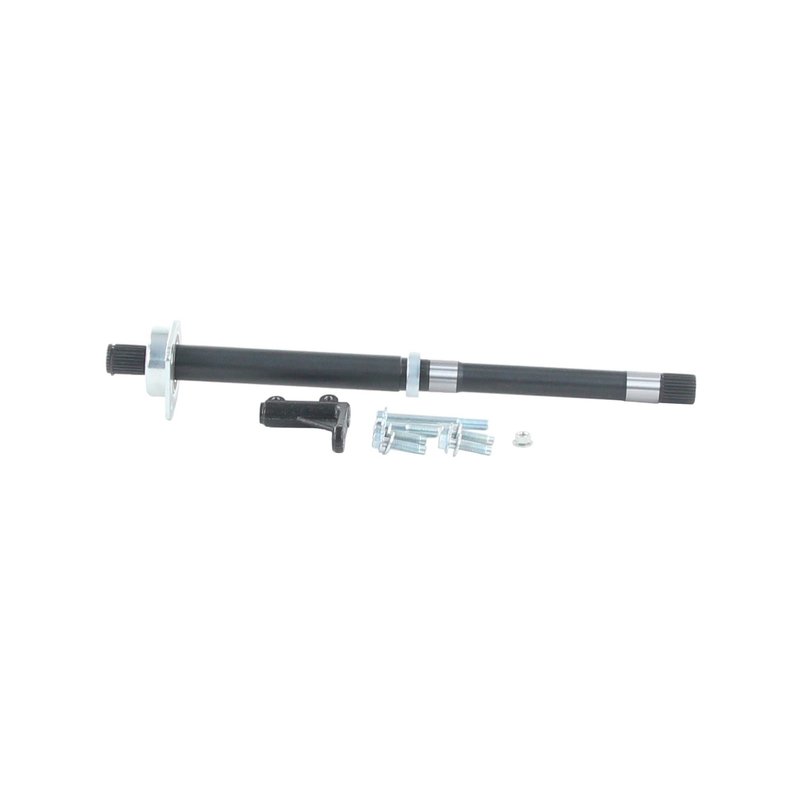

TrakMotive FD-3517 CV Intermediate Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 CV Intermediate Shaft

TrakMotive FD-3517 CV Intermediate Shaft - Front Right

Brand TrakMotive FD-3517
Position Front Right
Axle Nut Height (mm) 10
Axle Nut Included Yes
Axle Nut Length (in) .75
Axle Nut Length (mm) 19
Axle Nut Locking Type Standard
Axle Nut Thread Size M8x1.25
Grade Type Premium
Inboard Bolt Head Size (in) .5
Inboard Bolt Head Size (mm) 13
Inboard Bolt Length (in) 2.31, 1.9, 4.13
Inboard Bolt Length (mm) 58, 49, 105
Inboard Bolt Thread Size M10x1.5
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 1
Number Of Inboard Splines 27
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 27
Overall Compressed Length (in) 22
Overall Compressed Length (mm) 559
Product line CV Intermediate Shaft
Fits Ford and Lincoln · 44 vehicles

Premium grade. Built as a CV intermediate shaft with a refined component specification.

27-spline design. Provides a precise spline count for secure driveline engagement.

Axle nut included. Supplied with the hardware needed for a complete installation.

Cross-references TrakMotive FD-3517 for the same application. See all 1.

$108.85Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $108.85
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Intermediate Shaft options

CV Intermediate Shaft for Ford, Lincoln Front Right

TrakMotive FD-3517 is a CV intermediate shaft for the front right position on select Ford and Lincoln applications. It is built as a standard duty replacement for vehicles that need a direct driveline service part with the correct spline count, bolt pattern, and compressed length.

Compatible With 2010-2019 Ford Flex, front right; 2010-2019 Ford Taurus, front right; 2010-2016 Lincoln MKS, front right; and 2010-2019 Lincoln MKT, front right.

Key Features

  • Part number FD-3517 CV intermediate shaft
  • Front right application for select Ford and Lincoln vehicles
  • 27 inboard splines and 27 outboard splines
  • Overall compressed length: 22 in. (559 mm)
  • Axle nut included with standard locking type
  • Axle nut thread size: M8x1.25
  • Inboard bolt thread size: M10x1.5
  • Premium grade type
  • ISO 9001:2008 and TS 16949:2009 certified manufacturing

Detailed Description

TrakMotive FD-3517 is a CV intermediate shaft for driveline service on Ford Flex, Ford Taurus, Lincoln MKS, and Lincoln MKT front right applications. The shaft uses 27 splines at both ends and a 22-inch compressed length to match the specified driveline geometry for the listed vehicles. It also includes the axle nut and uses a standard locking type, with M8x1.25 axle nut threads and M10x1.5 inboard bolt threads for proper hardware matching.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. If you are replacing a worn intermediate shaft on a 2010-2019 Ford Flex or 2010-2019 Ford Taurus, FD-3517 provides a direct-fit service option for the front right side. The same applies to 2010-2016 Lincoln MKS and 2010-2019 Lincoln MKT models listed in the fitment data.

What It Helps Fix

  • Vibration from a worn or damaged intermediate shaft
  • Clunking or driveline noise during acceleration or load changes
  • Excessive play from spline wear or internal shaft wear
  • Fitment issues caused by incorrect shaft length or spline count
  • Service problems when the original front right shaft is no longer reliable

Installation Notes and Tips

Verify the vehicle year, model, and front right position before ordering. Confirm spline count, compressed length, axle nut thread size, and inboard bolt specifications against the original part to ensure proper fit. Inspect related driveline components, seals, and mounting hardware during replacement so the new shaft is installed on a clean, serviceable assembly.

Quality Assurance

TrakMotive identifies this CV intermediate shaft as a premium-grade replacement and states that the manufacturing facility is ISO 9001:2008 and TS 16949:2009 certified. The part is also backed by a limited lifetime warranty.

Related reading

This part fits 44 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeLitersCylindersPositionNotes
2019FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2019FordPolice Interceptor Sedan——3.7LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2019FordTaurus—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2019LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2018FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2018FordPolice Interceptor Sedan——3.7LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2018FordTaurus—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2018LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2017FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2017FordPolice Interceptor Sedan——3.7LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2017FordTaurus—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2017LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2016FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2016FordPolice Interceptor Sedan——3.7LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2016FordTaurus—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2016LincolnMKS—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2016LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2015FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2015FordPolice Interceptor Sedan——3.7LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2015FordTaurus—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2015LincolnMKS—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2015LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2014FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2014FordPolice Interceptor Sedan——3.7LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2014FordTaurus—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2014LincolnMKS—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2014LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2013FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2013FordPolice Interceptor Sedan——3.7LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2013FordTaurus—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2013LincolnMKS—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2013LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2012FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2012FordTaurusSHO—3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2012LincolnMKS—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2012LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2011FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2011FordTaurusSHO—3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2011LincolnMKS—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2011LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2010FordFlex—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2010FordTaurus—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2010LincolnMKS—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2010LincolnMKT—AWD3.5LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
