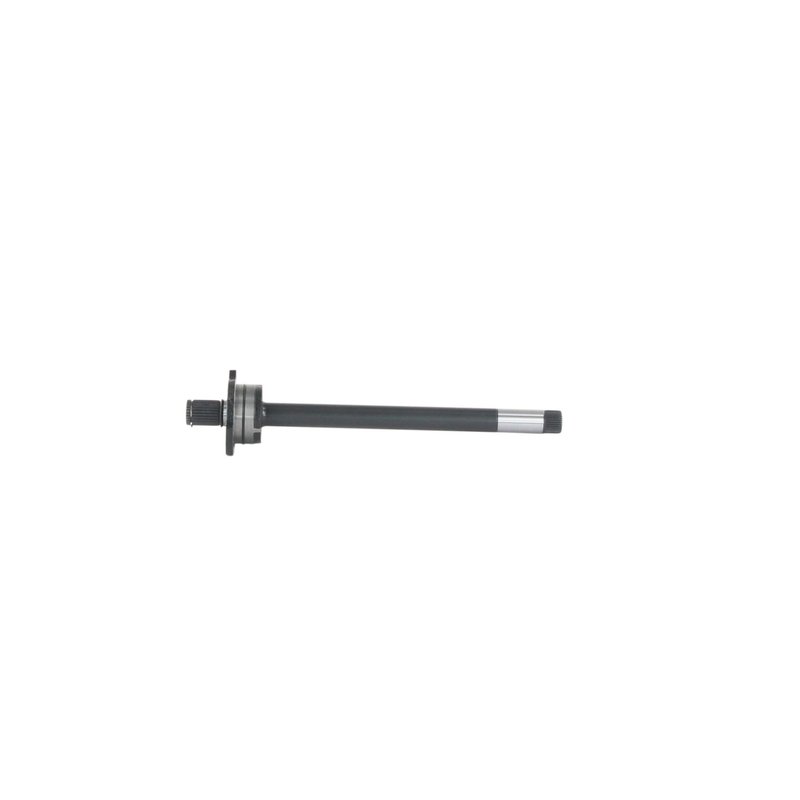

TrakMotive FD-3521 CV Intermediate Shaft - Front Right
| Brand | TrakMotive FD-3521 |
|---|---|
| Position | Front Right |
| Axle Nut Included | No |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Overall Compressed Length (in) | 16.5 |
| Overall Compressed Length (mm) | 419 |
| Product line | CV Intermediate Shaft |
| Fits | Ford and Lincoln · 7 vehicles |
Premium grade. Built as a CV intermediate shaft for dependable driveline service.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive FD-3521 for the same application. See all 1.
CV Intermediate Shaft for Ford Edge and Lincoln Nautilus
TrakMotive FD-3521 is a premium CV intermediate shaft for the front right position. It is built for 2019-2023 Ford Edge and 2019-2020 Lincoln Nautilus applications, with fitment matched to the listed spline counts and compressed length.
Key Features
- Premium-grade CV intermediate shaft for driveline service
- Front right fitment for select Ford Edge and Lincoln Nautilus models
- 35 inboard splines and 27 outboard splines
- Overall compressed length: 16.5 in. (419 mm)
- No axle nut included
- TrakMotive FD-3521 part number for direct identification
Product Details
TrakMotive’s CV Intermediate Shaft line focuses on replacement driveline components built to meet demanding fitment requirements. FD-3521 is specified for the front right side and matches the listed spline configuration and shaft length for 2019-2023 Ford Edge and 2019-2020 Lincoln Nautilus vehicles. The manufacturer notes ISO 9001:2008 and TS 16949:2009 certified production, along with a limited lifetime warranty.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Worn or damaged intermediate shaft causing driveline noise
- Vibration felt during acceleration or cruising
- Excessive play from spline wear or internal shaft damage
- Front right axle support issues on Ford Edge and Lincoln Nautilus models
- Replacement needs after CV driveline inspection failure
Installation Notes and Tips
Verify front right fitment, spline counts, and compressed length before installation. Inspect mating components, seals, and related driveline parts for wear before reassembly. Because axle nut hardware is not included, confirm all required service parts are on hand before beginning the repair.
Quality Assurance
FD-3521 is backed by TrakMotive’s limited lifetime warranty. It is produced by a company certified to ISO 9001:2008 and TS 16949:2009 standards, supporting consistent manufacturing control for driveline replacement parts.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Ford | Edge | AWD | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2022 | Ford | Edge | AWD | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2021 | Ford | Edge | AWD | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Ford | Edge | AWD | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Lincoln | Nautilus | AWD | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Ford | Edge | AWD | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Lincoln | Nautilus | AWD | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
