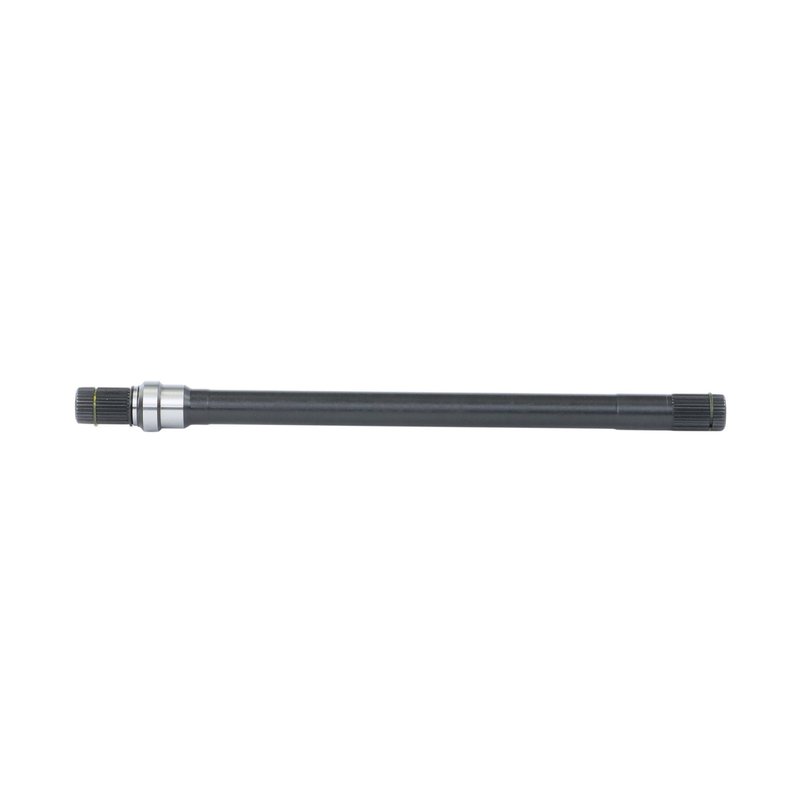

TrakMotive FD-3524 CV Intermediate Shaft - Front Right
| Brand | TrakMotive FD-3524 |
|---|---|
| Position | Front Right |
| Axle Nut Included | No |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 31 |
| Overall Compressed Length (in) | 22.875 |
| Overall Compressed Length (mm) | 581 |
| Product line | CV Intermediate Shaft |
| Fits | Ford and Lincoln · 43 vehicles |
Premium grade. Built as a CV intermediate shaft for dependable driveline performance.
31-spline design. Matched spline counts help ensure precise engagement at both ends.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-3524 for the same application. See all 1.
CV Intermediate Shaft for Ford and Lincoln
TrakMotive FD-3524 is a premium CV intermediate shaft for front right applications on select Ford and Lincoln trucks and SUVs. It is built for direct replacement service on the Expedition, Navigator, and F-150, with fitment coverage spanning 2007-2022 depending on model.
Key Features
- Premium-grade CV intermediate shaft for driveline service
- Front right position application
- 31 inboard splines and 31 outboard splines
- Overall compressed length: 22.875 in. (581 mm)
- No axle nut included
- Direct replacement for select Ford Expedition, Lincoln Navigator, and Ford F-150 applications
Product Details
TrakMotive FD-3524 is part of the CV Intermediate Shaft line, a product range focused on replacement driveline components for vehicles that use a front axle intermediate shaft assembly. This shaft is specified for the front right side and matches the listed spline count and compressed length requirements for the covered applications. It is a practical OE-style replacement for 2007-2022 Ford Expedition, 2007-2021 Lincoln Navigator, and 2009-2020 Ford F-150 models.
This part cross-references TrakMotive FD-3524 for the same application.
Common Repair Symptoms
- Vibration or shudder from the front driveline
- Clicking or binding during acceleration or turning
- Excessive play in the intermediate shaft assembly
- Noise from worn CV driveline components
- Need for a direct replacement on the front right side
Installation Notes
Verify spline count, compressed length, and front right position before installation. Confirm vehicle year and model against the fitment list for the exact application. Professional installation is recommended so the shaft is seated correctly and the driveline operates smoothly after replacement.
Quality Assurance
TrakMotive identifies this CV intermediate shaft as a premium replacement component and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled production and quality management processes.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2021 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2021 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2018 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2018 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2018 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2017 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2017 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2017 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2016 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2016 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2016 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2015 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2015 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2015 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2014 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2014 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2014 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2013 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2013 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2013 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2012 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2012 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2012 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2011 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2011 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2011 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2010 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2010 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2010 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2009 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2009 | Ford | F-150 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2009 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2008 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2008 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2007 | Ford | Expedition | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2007 | Lincoln | Navigator | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
