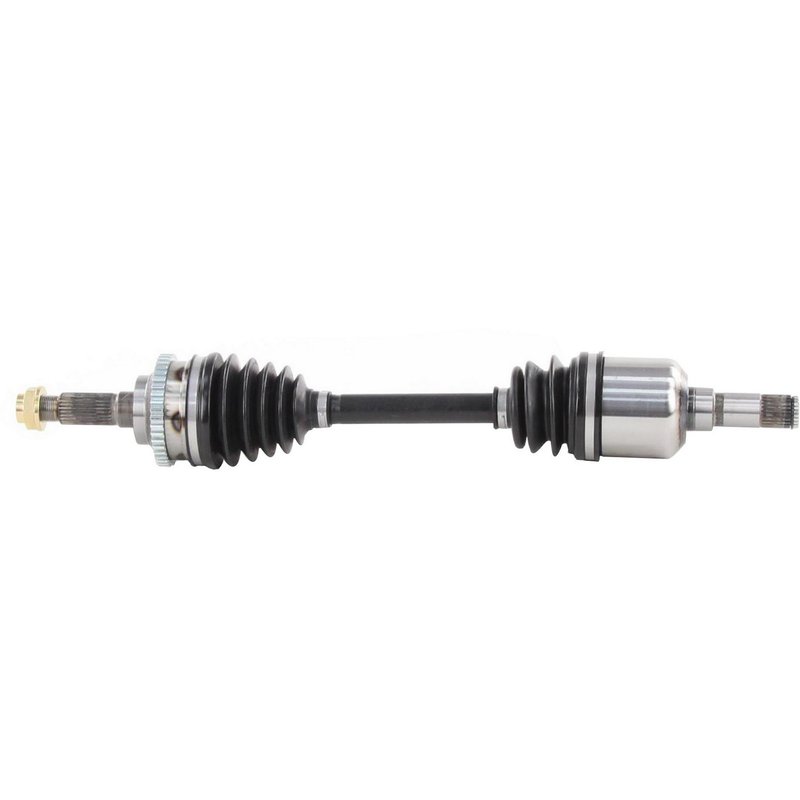

TrakMotive FD-8007 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8007

The TrakMotive CV Axle Shaft FD-8007 is engineered for reliable driveline performance in select Ford, Mazda, and Mercury vehicles. Designed specifically for models such as the Ford Escort, Mazda Protege, Protege5, and Mercury Tracer, this new axle shaft ensures precise fitment and durability.

• Compatible with Ford Escort, Mazda Protege, Protege5, and Mercury Tracer
• Includes a neoprene boot for enhanced protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Hex head axle nut with stake locking type included
• Overall compressed length of 24.02 inches (610 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance. The FD-8007 model features a male inboard joint and a conventional outboard joint, reflecting the line's attention to fitment accuracy for specific vehicle applications.

Technical Specifications and Features

The FD-8007 CV Axle Shaft includes a 44-tooth toothed ABS ring with an included tone ring, supporting accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It features a stake locking mechanism and thread size M22x1.5 for secure installation. The neoprene boot material provides resistance to wear and environmental factors, while the shaft has 26 splines on both the inboard and outboard ends, ensuring proper engagement with the vehicle's drivetrain components. The overall compressed length is 24.02 inches (610 mm), matching OEM dimensions for the specified vehicles.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Escort, Mazda Protege, Protege5, and Mercury Tracer
• Addresses issues such as axle shaft vibration or clicking noises during turns
• Resolves ABS sensor errors related to damaged or missing tone rings
• Prevents grease leakage and joint contamination with durable neoprene boots
• Corrects axle nut thread or locking failures to maintain wheel security

Installation Notes and Tips

When installing the TrakMotive FD-8007 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature joint failure. This axle shaft is designed for direct replacement on compatible Ford, Mazda, and Mercury models, requiring no modifications.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8007 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut with a stake locking type for secure fitment. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and durability in driveline applications.
