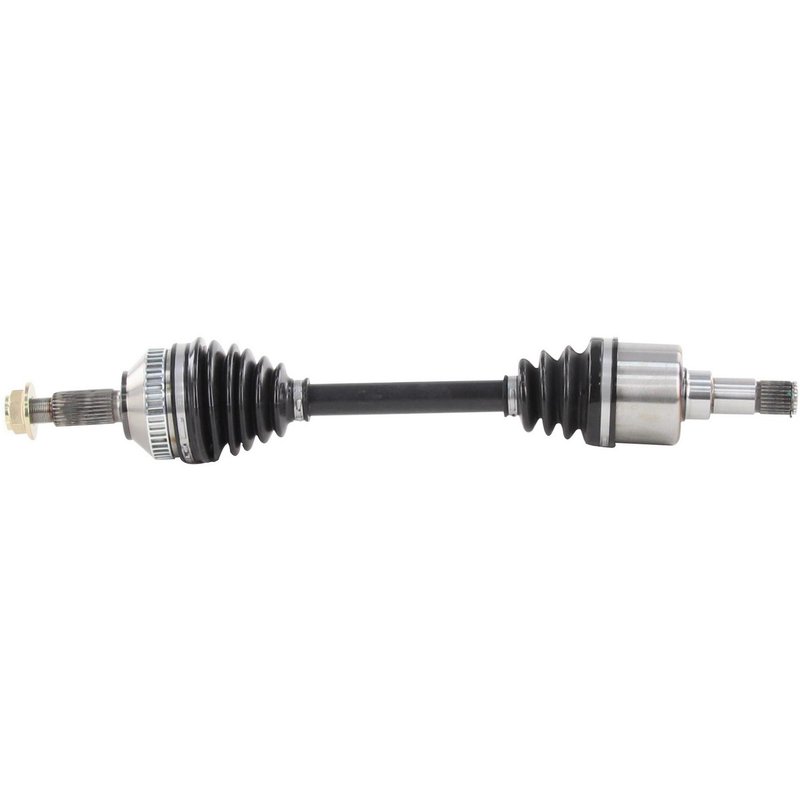

TrakMotive FD-8013 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8013

The TrakMotive CV Axle Shaft FD-8013 is engineered for reliable driveline performance in select Ford and Mercury vehicles. Designed specifically for models like the Ford Contour, Mercury Cougar, and Mercury Mystique, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Ford Contour, Mercury Cougar, and Mercury Mystique
• Includes ABS tone ring with 44 window-type teeth for accurate wheel speed sensing
• Equipped with a self-locking hex axle nut (M22x1.5 thread size) for secure installation
• Neoprene boot material for enhanced joint protection and longevity
• Overall compressed length of 24.33 inches (618 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including features like integrated ABS tone rings and durable neoprene boots, to maintain driveline integrity and vehicle safety. The FD-8013 model exemplifies these standards with its robust construction and compatibility with multiple Ford and Mercury models.

Technical Specifications and Features

This CV axle shaft features a 44-tooth window-type ABS ring included to support accurate anti-lock braking system functionality. The axle nut is a self-locking hex type, measuring 1 1/4 inches (31.8 mm) across the flats, with a height of 21.2 mm (5/6 inch) and a length of 34.4 mm (1 1/3 inch). The shaft includes 26 inboard splines with a male joint type and 27 outboard splines with a conventional joint type, ensuring proper connection and torque transfer. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Ford Contour, Mercury Cougar, and Mercury Mystique
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boots
• Secures wheel hub connection with self-locking axle nut

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. The self-locking hex axle nut requires a 1 1/4 inch (31.8 mm) socket for proper torque application. Handle the neoprene boot carefully to avoid damage during installation. Confirm the ABS tone ring is properly seated to maintain accurate wheel speed readings. It is recommended to inspect related driveline components during replacement to ensure overall system integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8013 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring for integrated system compatibility and features a self-locking axle nut for secure fitment. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Ford and Mercury vehicles.
