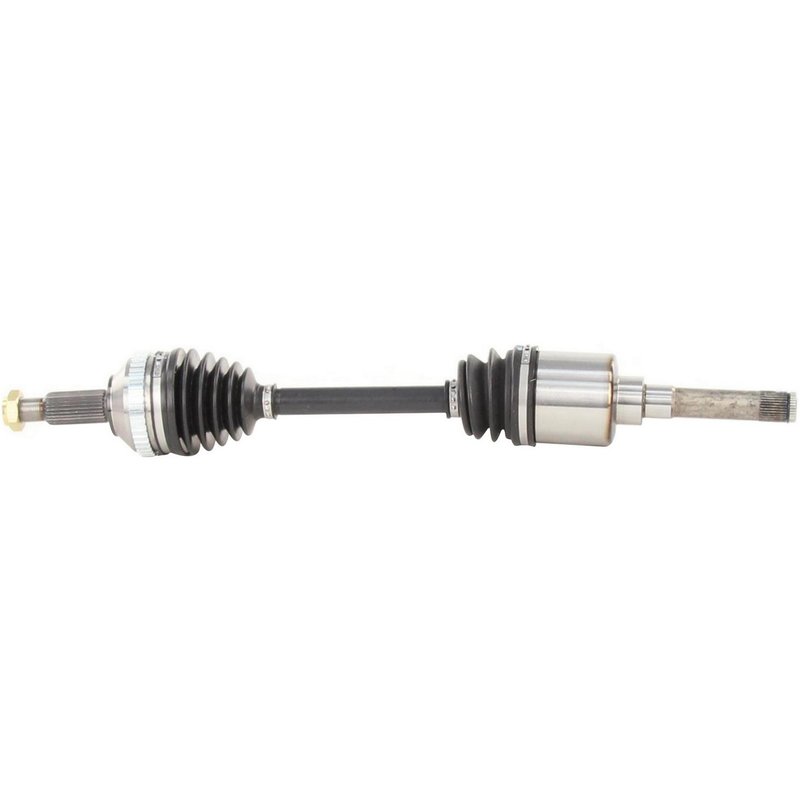

TrakMotive FD-8033 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8033

The TrakMotive CV Axle Shaft FD-8033 is engineered for reliable driveline performance in select Ford and Mercury vehicles. Designed specifically for models like the Ford Contour, Mercury Cougar, and Mercury Mystique, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Ford Contour, Mercury Cougar, and Mercury Mystique
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• 44-tooth ABS ring with included tone ring for accurate ABS sensor operation
• Overall compressed length of 26.1 inches (663 mm)
• Male inboard joint and conventional outboard joint types
• Axle nut dimensions: 1 1/4 inch hex size, 3/5 inch height, 1 1/2 inch length

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering precise driveline components tailored to specific vehicle applications. This product line emphasizes quality materials and exact specifications, such as the neoprene boot and ABS ring integration, to maintain vehicle safety systems and driveline integrity. The FD-8033 model exemplifies this approach by combining robust construction with fitment accuracy for Ford and Mercury vehicles.

Detailed Product Description

The FD-8033 CV Axle Shaft features a 44-tooth toothed ABS ring with an included tone ring, ensuring compatibility with the vehicle's anti-lock braking system. The neoprene boot material provides resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint uses a male connection style with 35 splines, while the outboard joint is conventional with 27 splines, matching factory specifications. The included self-locking hex axle nut (M22*1.5 thread size) measures 1 1/4 inches across the flats, 3/5 inch in height, and 1 1/2 inches in length, designed to secure the axle shaft firmly in place.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Ford Contour, Mercury Cougar, and Mercury Mystique
• Restores proper ABS sensor function with included toothed ABS ring and tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Ford Contour, Mercury Cougar, or Mercury Mystique before installation
• Use proper torque specifications for the M22*1.5 self-locking axle nut to ensure secure fitment
• Inspect surrounding components such as wheel bearings and suspension parts during installation
• Ensure ABS sensor alignment with the 44-tooth ABS ring for accurate system operation
• Replace any damaged or worn hardware to maintain driveline integrity

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8033 is a new, not remanufactured, component built to meet OEM standards. It includes a self-locking axle nut and is constructed with durable materials such as neoprene for the boot. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Ford and Mercury vehicles.
