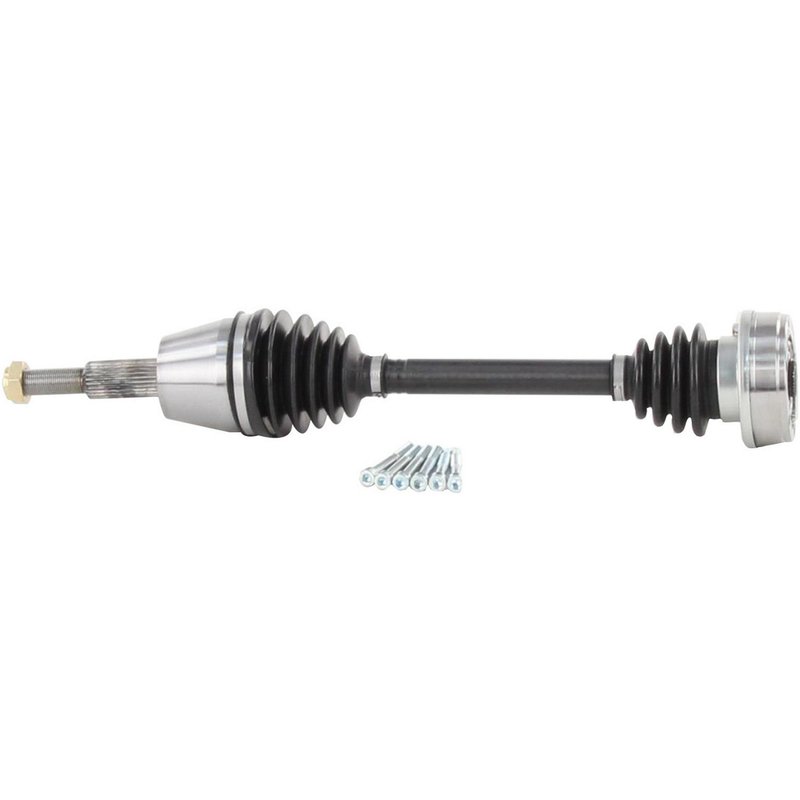

TrakMotive FD-8035 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive FD-8035 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/4 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 2/9 |
| Inboard Bolt Length (mm) | 56.5 |
| Inboard Bolt Thread Size | M8*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.4 |
| Overall Compressed Length (mm) | 569 |
| Product line | CV Axle Shaft |
| Fits | Ford · 12 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps protect the joint from dirt and moisture.
Bolt-on inboard connection. Simplifies installation with a secure, conventional design.
Cross-references Cardone New 66-2099, Cardone Reman 60-2099 and TrakMotive FD-8035 for the same application. See all 16.
CV Axle Shaft for Ford Aerostar
TrakMotive FD-8035 is a new CV axle shaft for front-wheel-drive Ford Aerostar applications. It is built for 1992-1997 Ford Aerostar front left and front right positions, with fitment coverage for the full 1992-1997 model range.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: FD-8035
- Fits 1992-1997 Ford Aerostar, front right
- Fits 1992-1997 Ford Aerostar, front left
- New axle assembly with conventional outboard joint design
- Bolt-on inboard joint and bolt-on inboard shaft connection style
- 26 outboard splines
- Neoprene boot material
- Axle nut included with self-locking design
- No ABS tone ring included
Product Details
TrakMotive FD-8035 is a CV axle shaft engineered for Ford Aerostar driveline service where a direct replacement axle is needed. The assembly uses a conventional outboard joint, a bolt-on inboard joint, and a bolt-on inboard shaft connection style to match the listed application. It measures 22.4 inches compressed overall length and includes a self-locking axle nut with M20 x 1.5 thread size and 30 mm hex size. The neoprene boot helps protect the joint area, while the 26-spline outboard end supports proper engagement in the specified Aerostar front axle positions. This part cross-references Cardone New 66-2099 and Cardone Reman 60-2099 for the same application.
Common Repair Uses
- Replacing a worn or noisy front CV axle on a Ford Aerostar
- Addressing clicking during turns from a damaged outer CV joint
- Correcting vibration caused by axle wear or imbalance
- Restoring driveline connection after boot failure or grease loss
- Servicing front left or front right axle positions on 1992-1997 Ford Aerostar models
Installation Notes
Verify axle length, spline count, and inboard connection style before installation. Confirm whether the vehicle uses ABS or non-ABS equipment, since this axle does not include an ABS tone ring. Inspect the axle seals, hub splines, and mounting points during service, and torque the axle nut to the vehicle manufacturer specification after installation. Use the listed fitment for 1992-1997 Ford Aerostar front left and front right applications only.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Ford | Aerostar | AWD | Front Right | CV Axle Shaft |
| 1997 | Ford | Aerostar | AWD | Front Left | CV Axle Shaft |
| 1996 | Ford | Aerostar | AWD | Front Right | CV Axle Shaft |
| 1996 | Ford | Aerostar | AWD | Front Left | CV Axle Shaft |
| 1995 | Ford | Aerostar | AWD | Front Right | CV Axle Shaft |
| 1995 | Ford | Aerostar | AWD | Front Left | CV Axle Shaft |
| 1994 | Ford | Aerostar | AWD | Front Right | CV Axle Shaft |
| 1994 | Ford | Aerostar | AWD | Front Left | CV Axle Shaft |
| 1993 | Ford | Aerostar | AWD | Front Right | CV Axle Shaft |
| 1993 | Ford | Aerostar | AWD | Front Left | CV Axle Shaft |
| 1992 | Ford | Aerostar | AWD | Front Right | CV Axle Shaft |
| 1992 | Ford | Aerostar | AWD | Front Left | CV Axle Shaft |
