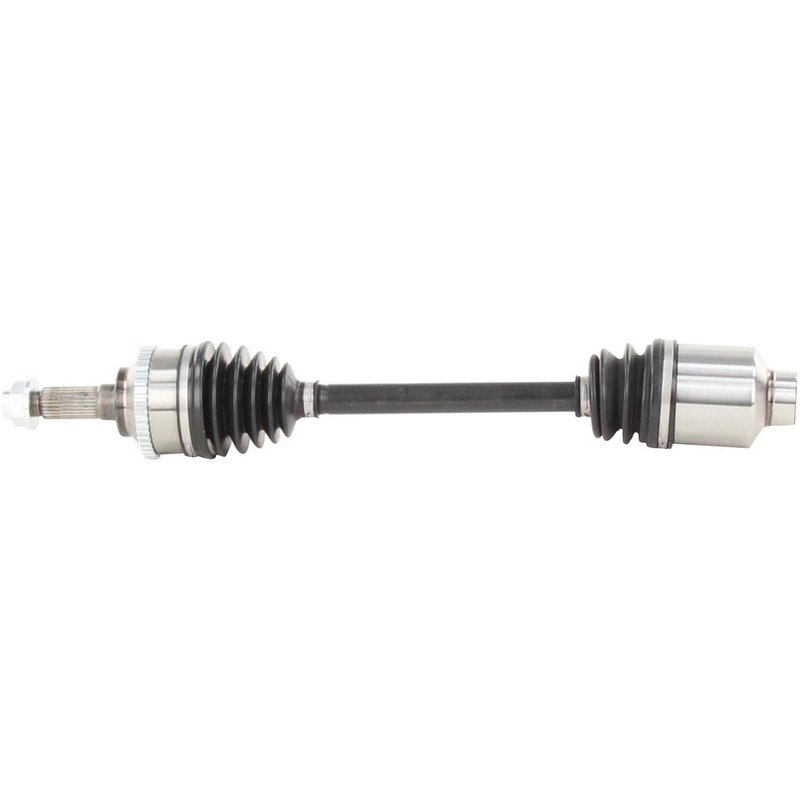

TrakMotive FD-8037 CV Axle Shaft - Front Right

Overview of TrakMotive FD-8037 CV Axle Shaft

The TrakMotive FD-8037 CV Axle Shaft is engineered for reliable driveline performance in select Ford, Mazda, and Mercury vehicles. Designed specifically for models like the Ford Escort, Mazda Protege, and Mercury Tracer, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Ford Escort, Mazda Protege, and Mercury Tracer
• Includes a neoprene boot for enhanced durability
• Equipped with a 44-tooth ABS ring and included tone ring
• Comes with a hex head axle nut (M22*1.5 thread size) with stake locking
• Overall compressed length of 24.41 inches (620 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to meet OEM specifications. This line emphasizes precise engineering, including features like female inboard joint connections and conventional outboard joints, to ensure compatibility and performance in specific vehicle applications such as the Ford Escort, Mazda Protege, and Mercury Tracer.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that provides resistance to wear and environmental factors. The inboard joint uses a female connection style with 26-2t splines, while the outboard joint is conventional with 26 splines. The included ABS ring has 44 teeth and is of the toothed type, complete with an ABS tone ring for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, 1 inch (24 mm) in height, and 1 1/2 inches (37 mm) in length, with a stake locking mechanism to secure the assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Escort, Mazda Protege, and Mercury Tracer
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Fixes axle nut loosening problems with stake locking design

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. The stake locking axle nut requires staking after torqueing to prevent loosening. Use proper tools to avoid damage to the neoprene boot and splines during installation. Check ABS sensor alignment with the toothed ABS ring to maintain accurate wheel speed readings.

Quality Assurance and Warranty

The TrakMotive FD-8037 CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Ford Escort, Mazda Protege, and Mercury Tracer vehicles.
