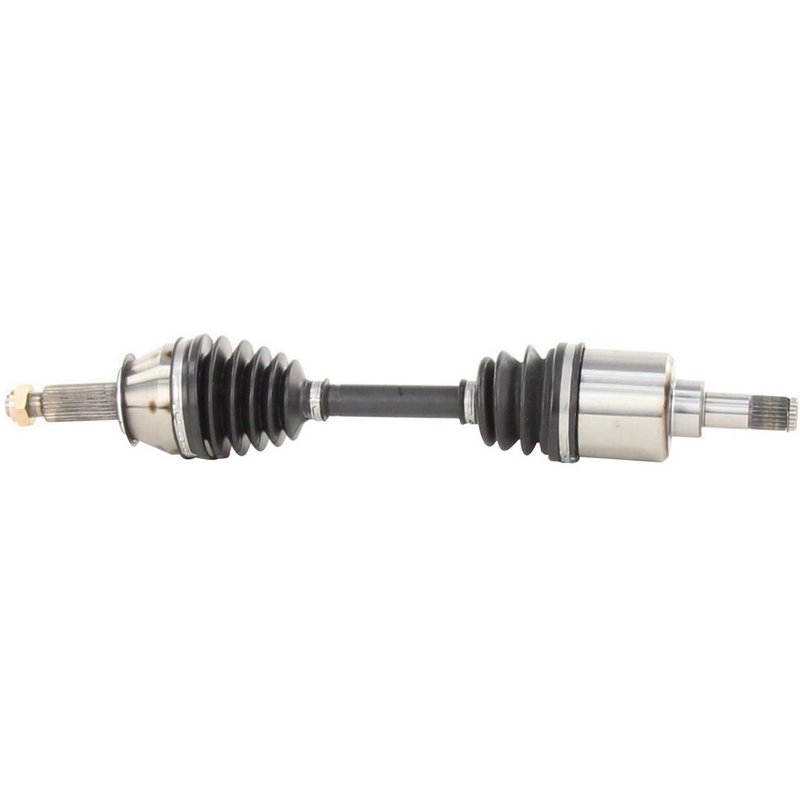

TrakMotive FD-8043 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8043

The TrakMotive CV Axle Shaft FD-8043 is designed for reliable driveline performance in select Ford and Mercury vehicles. Engineered to meet OEM specifications, this new CV axle shaft supports smooth power transfer and durability for models like the Ford Escort and Mercury Lynx.

• Compatible with Ford Escort, LN7, Lynx, Tempo, and Mercury Topaz
• Includes a self-locking hex axle nut (M20*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 22.28 inches (566 mm)
• Inboard joint with 23 splines and male connection style
• Outboard conventional joint with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for a range of vehicles. This line emphasizes quality materials and accurate engineering, ensuring that each CV axle shaft like the FD-8043 maintains proper joint function and shaft integrity under normal driving conditions.

Technical Specifications and Features

The FD-8043 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint is a male type with 23 splines, while the outboard joint is conventional with 26 splines, providing secure shaft connections. The included axle nut is a hex head type, measuring 1 1/6 inches (30 mm) across flats, with a height of 14 mm (5/9 inch) and a length of 34.6 mm (1 1/3 inch). This nut uses a self-locking mechanism to maintain secure fastening during operation.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on compatible Ford and Mercury models
• Addresses issues with axle vibration or clicking noises during turns
• Restores driveline stability and smooth power delivery
• Prevents grease leakage and joint contamination with durable neoprene boots
• Corrects axle nut fastening problems with included self-locking nut

Installation Notes and Tips

When installing the TrakMotive FD-8043 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle housing and surrounding components for wear or damage before installation. The neoprene boot should be checked for proper seating to prevent contamination. This part is designed for direct replacement on specified Ford Escort, LN7, Lynx, Tempo, and Mercury Topaz models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8043 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut to ensure secure installation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
