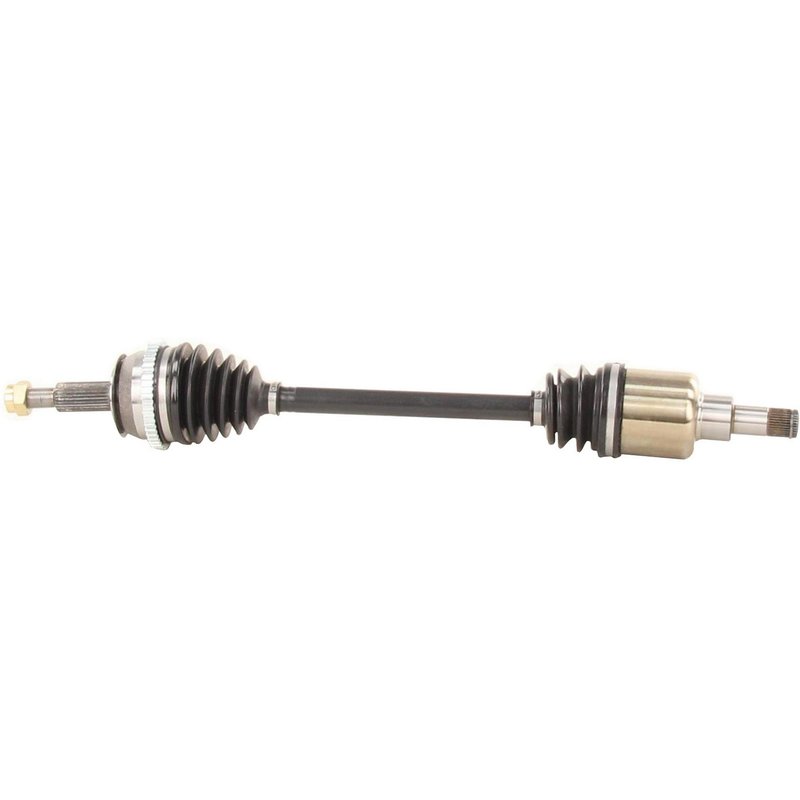

TrakMotive FD-8059 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8059 for Ford Windstar

The TrakMotive CV Axle Shaft FD-8059 is designed specifically for Ford Windstar models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Ford Windstar vehicles
• Includes ABS tone ring with 50 toothed ring teeth
• Neoprene boot material for enhanced durability
• Self-locking hex axle nut included (M20*1.5 thread size)
• Overall compressed length of 28.19 inches (716 mm)
• Inboard joint type: Male with 35 splines
• Outboard joint type: Conventional with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The FD-8059 model features a robust design with a neoprene boot and a toothed ABS ring to maintain accurate wheel speed sensor readings. This product line emphasizes compatibility and quality to meet the demands of Ford Windstar driveline systems.

Technical Specifications and Features

This CV axle shaft includes a 50-tooth ABS ring with a toothed design, ensuring proper interaction with the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut is a self-locking hex type, measuring 29.4 mm across flats and 20 mm in height, with a thread size of M20*1.5, included for secure installation. The inboard joint is male type with 35 splines, while the outboard joint is conventional with 26 splines, providing a precise fit for the Ford Windstar. The overall compressed length of 28.19 inches (716 mm) matches OEM specifications for proper driveline geometry.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Windstar
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft FD-8059 on a Ford Windstar, ensure the ABS tone ring aligns correctly with the sensor. Use the included self-locking hex axle nut (M20*1.5) and torque to manufacturer specifications. Inspect the neoprene boot for any damage during installation to maintain joint protection. Proper spline engagement on both inboard and outboard joints is critical for driveline performance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. The inclusion of a self-locking axle nut and durable neoprene boot reflects attention to quality and reliability. Please refer to TrakMotive's warranty policy for coverage details on this FD-8059 CV axle shaft.
