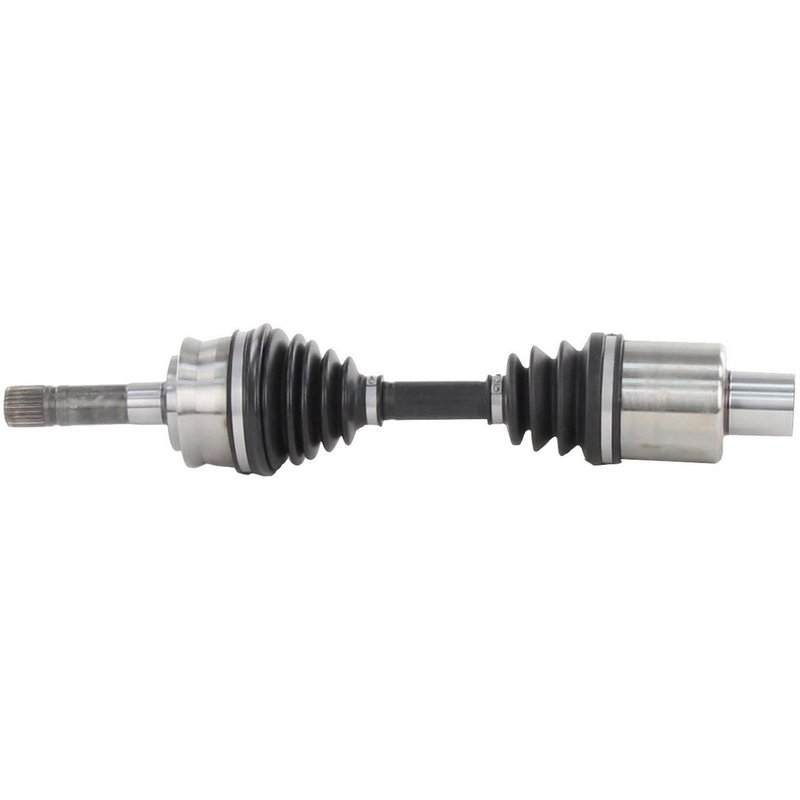

TrakMotive FD-8063 CV Axle Shaft - Front Right

Brand	TrakMotive FD-8063
Position	Front Right
Abs Tone Ring Included	No
Axle Nut Included	No
Boot Material	Neoprene
Inboard Joint Type	Female
Inboard Shaft Connection Style	Female
New Or Remanufactured	New
Number Of Inboard Splines	27-1T
Number Of Outboard Splines	27
Outboard Joint Type	Conventional
Outboard Shaft Connection Style	Conventional
Overall Compressed Length (in)	20.24
Overall Compressed Length (mm)	514
Product line	CV Axle Shaft
Fits	Ford and Mazda · 12 vehicles

New CV axle shaft. A direct replacement for restoring driveline performance.

Neoprene boot. Helps resist wear while keeping the joint protected.

ISO certified company. Built under ISO 9001 and TS 16949 quality standards.

Cross-references Anchor 9390, Cardone Reman 60-2148 and TrakMotive FD-8063 for the same application. See all 15.

$91.77Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

Front Right CV Axle Shaft for Ranger and Mazda B-Series

TrakMotive FD-8063 is a new front right CV axle shaft built for specific Ford Ranger and Mazda B-Series applications. It features a neoprene boot, female inboard connection, and conventional outboard joint design for direct replacement service on listed vehicles.

Key Features

New CV axle shaft for front right driveline service
Neoprene boot material for flexible joint protection
Female inboard shaft connection style
Conventional outboard joint and shaft connection style
27 inboard splines and 27 outboard splines
Overall compressed length: 20.24 in. (514 mm)
No ABS tone ring included
No axle nut included

Product Details

TrakMotive CV Axle Shaft FD-8063 is engineered for direct-fit replacement on select 1998-2000 Ford Ranger and Mazda B-Series front right applications. This axle shaft is specified for vehicles including the 2000 Ford Ranger with pulse vacuum hub lock, 1998-1999 Ford Ranger, 1998-2000 Mazda B2500, 1998-1999 Mazda B3000, and 1998-1999 Mazda B4000. The TrakMotive CV Axle Shaft line focuses on replacement driveline components built to match the listed fitment and connection style requirements.

This part cross-references Anchor 9390 for the same application.

What This Part Helps Address

Clicking or popping from a worn front CV joint
Vibration during acceleration from a damaged axle shaft
Torn or deteriorated axle boot condition
Front right driveline noise on Ranger and Mazda B-Series trucks
Loss of smooth power transfer through the front axle assembly

Installation Notes and Tips

Verify front right fitment by year, make, model, and notes before installation. This axle is listed without an ABS tone ring and without an axle nut, so confirm the vehicle’s original configuration and reuse or source any required related components separately. Check spline count, compressed length, and hub-lock or ABS requirements against the removed part before assembly.

Quality Assurance

TrakMotive lists this axle shaft as a new part and identifies the manufacturing program under ISO 9001:1007 and TS 16949:2009 certified company standards. Limited lifetime warranty coverage is stated by the manufacturer.

This part fits 12 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Drive Type	Position	Notes
2000	Ford	Ranger	4WD	Front Right	w/ Pulse Vacuum Hub Lock; CV Axle Shaft
2000	Mazda	B2500	—	Front Right	Thru 10/27/99; CV Axle Shaft
2000	Mazda	B3000	4WD	Front Right	To 10/27/1999; CV Axle Shaft
2000	Mazda	B4000	4WD	Front Right	To 10/27/1999; CV Axle Shaft
1999	Ford	Ranger	4WD	Front Right	CV Axle Shaft
1999	Mazda	B2500	—	Front Right	CV Axle Shaft
1999	Mazda	B3000	4WD	Front Right	To 10/27/1999; CV Axle Shaft
1999	Mazda	B4000	4WD	Front Right	To 10/27/1999; CV Axle Shaft
1998	Ford	Ranger	4WD	Front Right	CV Axle Shaft
1998	Mazda	B2500	—	Front Right	CV Axle Shaft
1998	Mazda	B3000	4WD	Front Right	CV Axle Shaft
1998	Mazda	B4000	4WD	Front Right	CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 15 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Anchor — 9390Cardone Reman — 60-2148TrakMotive — FD-806340-1507680-2917411000709461AX-9461CV3997CV4162F87Z3B436AAF87Z3B436ABFD-8-8535FD-5076NCV47096
