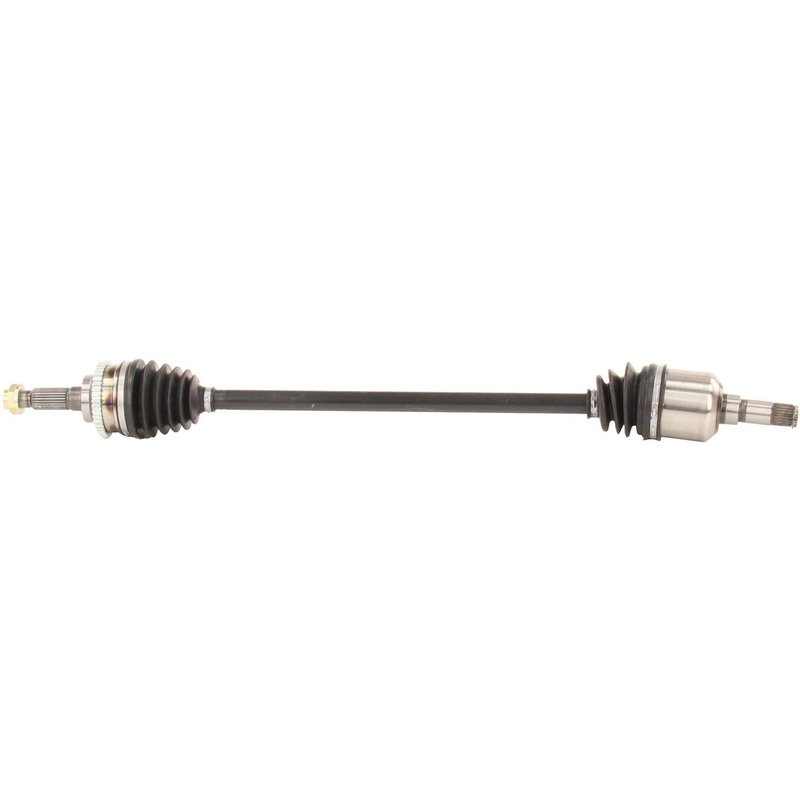

TrakMotive FD-8065 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8065

The TrakMotive CV Axle Shaft FD-8065 is engineered for reliable driveline performance in Ford Escort and Mercury Tracer vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and smooth operation.

• Compatible with Ford Escort and Mercury Tracer models
• Includes a neoprene boot for enhanced durability
• Equipped with a 44-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking
• Overall compressed length of 35.98 inches (914 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed for precise fit and function. This line includes shafts with both male inboard joint types and conventional outboard joints, ensuring compatibility with a range of vehicle drivetrains. The FD-8065 model incorporates these design elements to provide a direct replacement part that maintains factory performance standards.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors. The axle nut included is a hex type with a 1 1/4 inch (31.8 mm) hex size, 4/5 inch (20 mm) height, and a length of 1 1/3 inch (34.4 mm), secured with a stake locking mechanism. The shaft has 26 splines on both the inboard and outboard ends, with the inboard joint designed as male and the outboard joint conventional. The ABS ring is toothed with 44 teeth and includes a tone ring for ABS sensor compatibility.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Ford Escort and Mercury Tracer
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses boot damage or grease leakage to prevent joint failure
• Corrects ABS sensor errors caused by faulty tone rings
• Restores driveline integrity for smooth power delivery

Installation Notes and Tips

Ensure the axle nut thread size M22*1.5 matches the vehicle specifications before installation. Use proper torque settings and stake the axle nut to secure it firmly. Inspect the neoprene boot for any damage during installation to maintain joint protection. Verify the ABS tone ring alignment for accurate sensor readings. This CV axle shaft is designed for direct fitment on compatible Ford Escort and Mercury Tracer models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8065 is a new, not remanufactured, component built to meet OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance.
