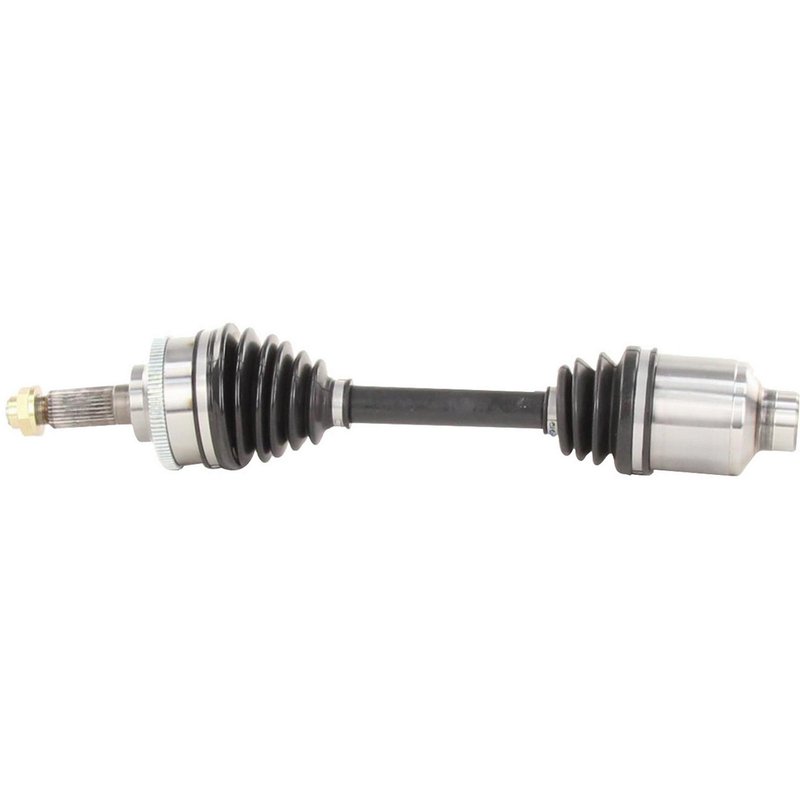

TrakMotive FD-8066 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8066

The TrakMotive CV Axle Shaft FD-8066 is engineered for reliable driveline performance in select Ford and Mazda vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures smooth power transfer and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Ford 626, Mazda MX-6, and Mazda Probe models
• Includes a neoprene boot for enhanced protection against contaminants
• Equipped with a 90-tooth ABS ring and included ABS tone ring for accurate wheel speed sensing
• Features a hex head axle nut with stake locking for secure installation
• Overall compressed length of 21.81 inches (554 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to restore driveline integrity. This line emphasizes quality materials such as neoprene boots and precise spline counts to ensure compatibility and longevity. The FD-8066 model exemplifies this approach by combining a female inboard joint and conventional outboard joint to match factory specifications for Ford and Mazda vehicles.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 28-2 splines and a conventional outboard joint with 28 splines, ensuring proper engagement with the vehicle’s drivetrain. The included ABS tone ring with 90 toothed ABS ring teeth supports accurate anti-lock braking system operation. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inch (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to maintain secure fastening during operation.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Ford 626, Mazda MX-6, and Mazda Probe
• Resolves issues related to torn or leaking CV boots that cause grease loss and joint wear
• Addresses vibrations or clicking noises during turns caused by failing CV joints
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle nut loosening problems with stake locking nut design

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify the spline counts and joint types match the replacement FD-8066 part. Use the included hex head axle nut and torque to manufacturer specifications, staking the nut to prevent loosening. Inspect the axle boot for proper seating and clamp installation to avoid premature failure.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8066 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot for durability and protection against environmental damage. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable performance in compatible Ford and Mazda vehicles.
