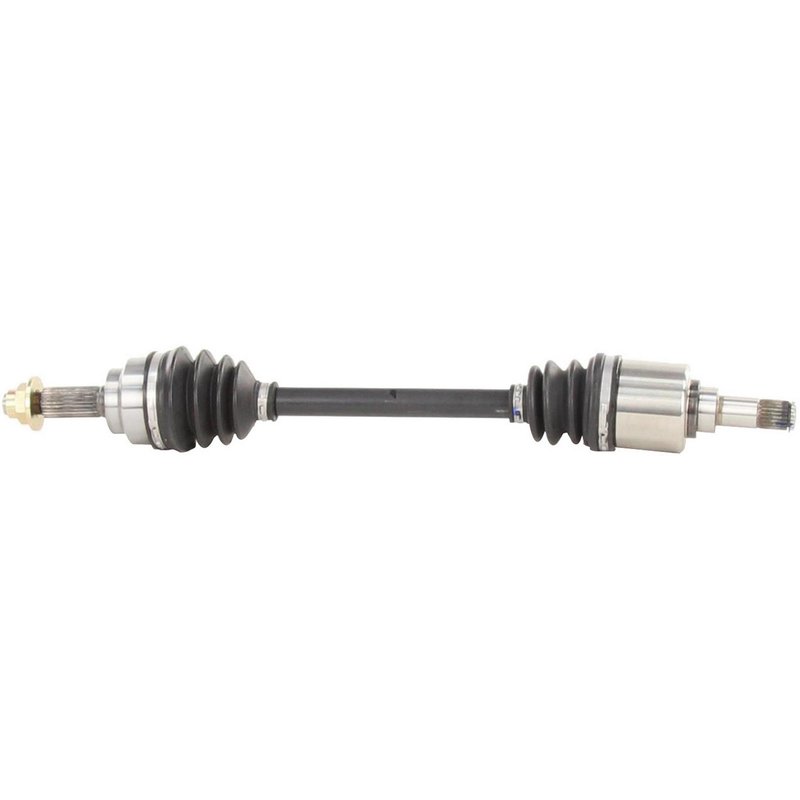

TrakMotive FD-8069 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8069 for Ford Festiva

The TrakMotive CV Axle Shaft FD-8069 is designed specifically for Ford Festiva models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Ford Festiva vehicles
• Includes stake-type locking axle nut (M20*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with 28.8 mm (1 1/7 inch) hex size
• Overall compressed length of 606 mm (23.86 inches)
• Male inboard joint with 22 splines and conventional outboard joint with 24 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This line emphasizes quality materials and accurate specifications, such as spline counts and joint types, to ensure compatibility and performance. The FD-8069 model exemplifies this approach by matching the exact requirements of the Ford Festiva's front axle assembly.

Technical Description and Specifications

The FD-8069 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, protecting the constant velocity joints. The inboard joint is a male type with 22 splines, while the outboard joint is conventional with 24 splines, ensuring proper engagement with the vehicle's transmission and wheel hub. The included axle nut is a hex head type with a stake locking mechanism, measuring 22.6 mm in height and 28.8 mm across the flats, designed to secure the axle firmly in place. The overall compressed length of 606 mm allows for correct fitment within the Ford Festiva's driveline system.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Festiva
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Ensures secure wheel attachment with included stake-type locking axle nut

Installation Notes and Tips

When installing the FD-8069 CV axle shaft on a Ford Festiva, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Inspect the mating surfaces for cleanliness and damage before assembly. The neoprene boot should be checked for proper seating to avoid premature wear. Use appropriate tools for the 28.8 mm hex axle nut to avoid rounding or damage.

Quality Assurance and Warranty Information

This TrakMotive CV Axle Shaft FD-8069 is a new, not remanufactured, component manufactured to meet OEM standards. It undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
