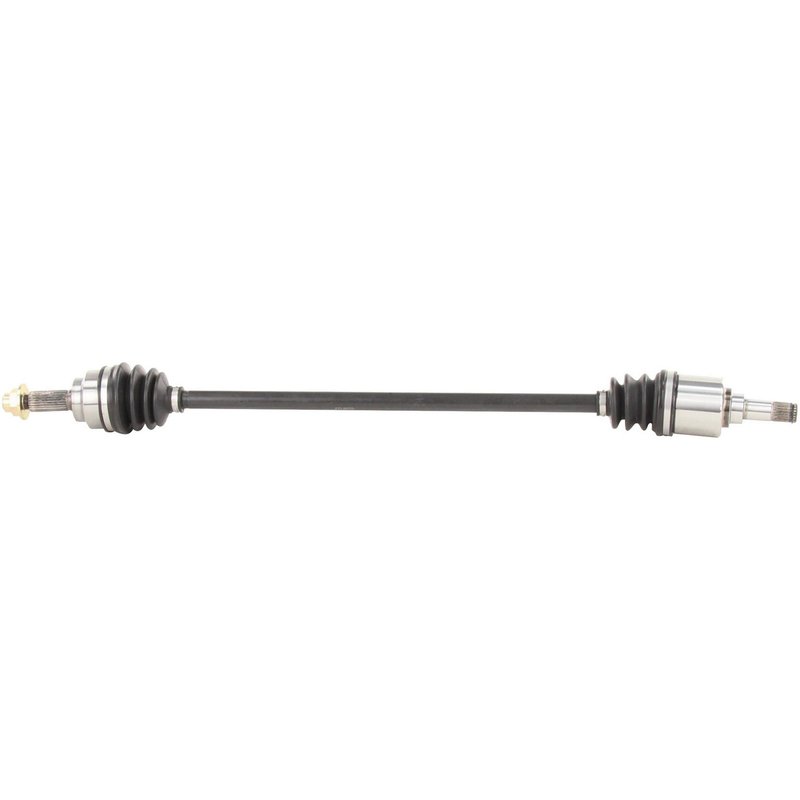

TrakMotive FD-8070 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8070 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 8/9 |
| Axle Nut Height (mm) | 22.6 |
| Axle Nut Hex Size (in) | 1 1/7 |
| Axle Nut Hex Size (mm) | 28.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 33.3 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 34.69 |
| Overall Compressed Length (mm) | 881 |
| Product line | CV Axle Shaft |
| Fits | Ford · 6 vehicles |
New. A fresh CV axle shaft built for dependable replacement use.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with the hardware needed for installation.
Cross-references Ansa 8332, Cardone New 66-2018 and Cardone Reman 60-2018 for the same application. See all 19.
CV Axle Shaft for Ford Festiva Front Right
TrakMotive FD-8070 is a new CV axle shaft for the front right position on 1988-1993 Ford Festiva models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 1988-1993 Ford Festiva, front right
- New CV axle shaft for driveline and axle repair
- Neoprene boot material for joint protection
- Male inboard shaft connection with 22 inboard splines
- Conventional outboard shaft connection with 24 outboard splines
- Includes axle nut with M20 x 1.5 thread size
- Overall compressed length: 34.69 in (881 mm)
- TrakMotive FD-8070 part number for ordering and lookup
Detailed Description
TrakMotive FD-8070 is a CV axle shaft for the front right side of the Ford Festiva, covering 1988-1993 model years. This axle shaft is a new replacement unit with a male inboard joint, conventional outboard joint, and a neoprene boot to help protect the CV joints during operation. The axle nut is included, and the assembly uses an M20 x 1.5 thread specification with a stake-style locking design. TrakMotive FD-8070 is a direct-fit driveline service part for Ford Festiva front right axle replacement needs.
This part cross-references Cardone New 66-2018 for the same application.
Common Repair Uses
- Replacing a worn or noisy front right CV axle on a Ford Festiva
- Addressing clicking or popping during turns caused by CV joint wear
- Correcting vibration from a damaged or imbalanced axle shaft
- Repairing torn boot-related grease loss and joint contamination
- Restoring driveline function after axle spline or joint damage
Installation Notes and Tips
Verify front right fitment against the vehicle’s original axle configuration before installation. Confirm spline count, axle nut thread size, and compressed length match the removed part. Inspect the hub, seals, and surrounding driveline components for wear before installing the new axle shaft. Use proper torque procedures for the axle nut and follow the vehicle service manual for final tightening and staking requirements.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certification. The FD-8070 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1993 | Ford | Festiva | Manual | Front Right | CV Axle Shaft |
| 1992 | Ford | Festiva | Manual | Front Right | CV Axle Shaft |
| 1991 | Ford | Festiva | Manual | Front Right | CV Axle Shaft |
| 1990 | Ford | Festiva | Manual | Front Right | CV Axle Shaft |
| 1989 | Ford | Festiva | Manual | Front Right | CV Axle Shaft |
| 1988 | Ford | Festiva | — | Front Right | CV Axle Shaft |
