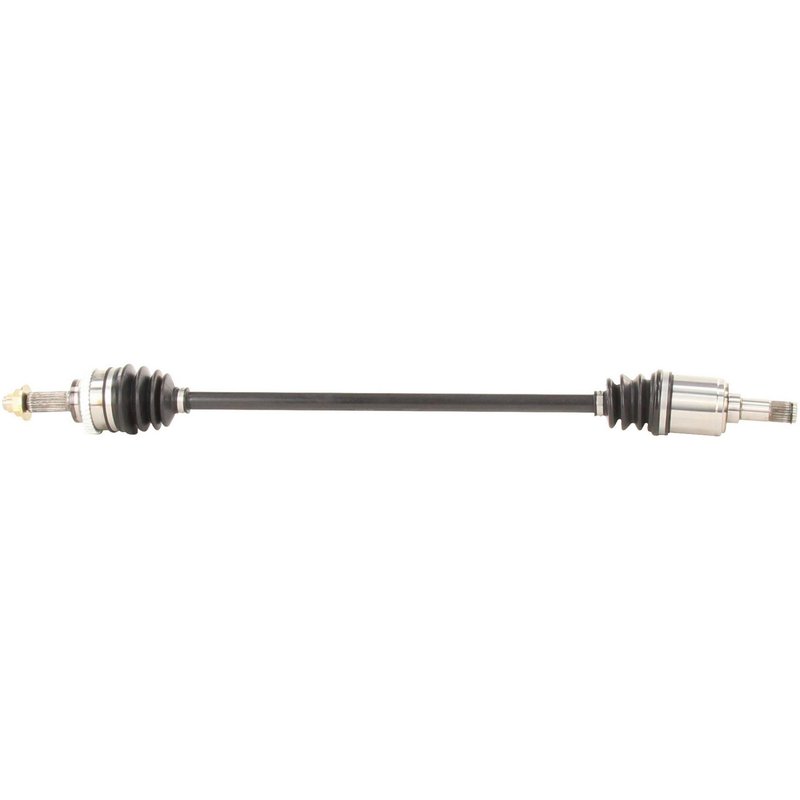

TrakMotive FD-8072 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8072 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 8/9 |
| Axle Nut Height (mm) | 22.6 |
| Axle Nut Hex Size (in) | 1 1/7 |
| Axle Nut Hex Size (mm) | 28.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 33.3 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 35.12 |
| Overall Compressed Length (mm) | 892 |
| Product line | CV Axle Shaft |
| Fits | Ford, Mercury, and Mazda · 20 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Comes with a toothed ring and axle nut for installation.
Cross-references Anchor 9320, Cardone New 66-2070 and Cardone Reman 60-2026 for the same application. See all 44.
CV Axle Shaft for Front Right Applications
TrakMotive FD-8072 is a new CV axle shaft built for front right driveline service on select Ford, Mercury, and Mazda applications. It is specified with a 24-spline inboard connection, 24-spline outboard connection, and a 35.12-inch compressed length for the listed fitments.
This CV axle shaft is part of TrakMotive’s CV Axle Shaft line and is built for direct replacement use on vehicles such as the Ford Aspire, Mercury Capri, Ford Festiva, Mazda 323, and Mercury Tracer. The FD-8072 part number is also referenced in interchange listings for related aftermarket applications.
- New CV axle shaft for front right installation
- 24 inboard splines and 24 outboard splines
- Male inboard shaft connection with conventional outboard joint type
- Neoprene boot material for driveline protection
- ABS tone ring included with 44-tooth toothed ring
- Axle nut included: M20 x 1.5 thread, hex head, stake locking type
- Overall compressed length: 35.12 in. (892 mm)
Detailed Product Information
TrakMotive FD-8072 is a replacement CV axle shaft engineered for front right driveline service on the listed compact Ford, Mercury, and Mazda vehicles. It uses a male inboard shaft connection and a conventional outboard joint design, with a neoprene boot and an ABS tone ring included for applications that require wheel speed signal support. The axle nut is included and specified with an M20 x 1.5 thread, 28.8 mm hex size, and stake-style locking design. This part number, FD-8072, is a direct reference for buyers searching by OE-style replacement number or by vehicle fitment.
Fits 1994-1997 Ford Aspire, front right. Fits 1991-1994 Mercury Capri, front right. Fits 1989-1993 Ford Festiva, front right. Fits 1986-1989 Mazda 323, front right. Fits 1987-1989 Mercury Tracer, front right.
What This Axle Shaft Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn or failing front right axle assembly
- ABS signal issues when the original tone ring is damaged or missing
Installation Notes and Tips
Verify spline count, compressed length, and axle nut thread size before installation. Confirm whether the vehicle uses ABS and compare the existing tone ring setup to the replacement axle. Always inspect the hub, seals, and surrounding suspension components during axle replacement, and torque the axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and that its production is supported by ISO 9001:1007 and TS 16949:2009 certification standards.
| Year | Make | Model | Submodel | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1997 | Ford | Aspire | — | — | Automatic | Front Right | CV Axle Shaft |
| 1996 | Ford | Aspire | — | — | Automatic | Front Right | CV Axle Shaft |
| 1995 | Ford | Aspire | — | — | Automatic | Front Right | CV Axle Shaft |
| 1994 | Ford | Aspire | — | — | Automatic | Front Right | CV Axle Shaft |
| 1994 | Mercury | Capri | Base | — | — | Front Right | CV Axle Shaft |
| 1993 | Ford | Festiva | — | — | Automatic | Front Right | CV Axle Shaft |
| 1993 | Mercury | Capri | Base | — | — | Front Right | CV Axle Shaft |
| 1992 | Ford | Festiva | — | — | Automatic | Front Right | CV Axle Shaft |
| 1992 | Mercury | Capri | Base | — | — | Front Right | CV Axle Shaft |
| 1991 | Ford | Festiva | — | — | Automatic | Front Right | CV Axle Shaft |
| 1991 | Mercury | Capri | Base | — | — | Front Right | CV Axle Shaft |
| 1990 | Ford | Festiva | — | — | Automatic | Front Right | CV Axle Shaft |
| 1989 | Ford | Festiva | — | — | Automatic | Front Right | CV Axle Shaft |
| 1989 | Mazda | 323 | — | FWD | — | Front Right | CV Axle Shaft |
| 1989 | Mercury | Tracer | — | — | — | Front Right | CV Axle Shaft |
| 1988 | Mazda | 323 | — | FWD | — | Front Right | CV Axle Shaft |
| 1988 | Mercury | Tracer | — | — | — | Front Right | CV Axle Shaft |
| 1987 | Mazda | 323 | — | FWD | — | Front Right | CV Axle Shaft |
| 1987 | Mercury | Tracer | — | — | — | Front Right | CV Axle Shaft |
| 1986 | Mazda | 323 | — | FWD | — | Front Right | CV Axle Shaft |
