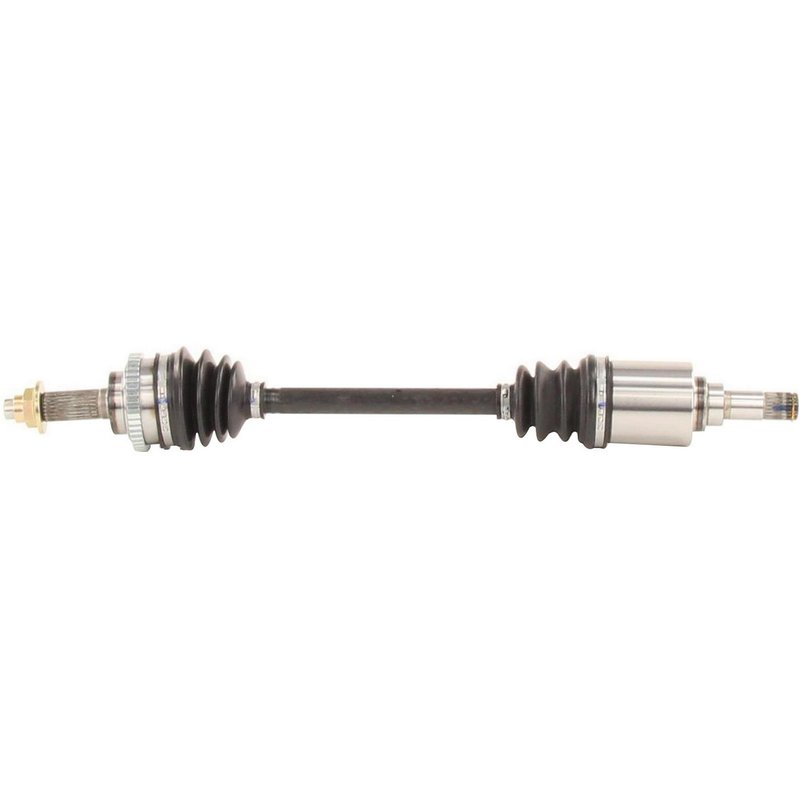

TrakMotive FD-8091 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8091 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 8/9 |
| Axle Nut Height (mm) | 22.6 |
| Axle Nut Hex Size (in) | 1 1/7 |
| Axle Nut Hex Size (mm) | 28.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 33.3 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.02 |
| Overall Compressed Length (mm) | 610 |
| Product line | CV Axle Shaft |
| Fits | Ford · 4 vehicles |
New CV axle shaft. Fresh replacement part for restoring driveline performance.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Anchor 9311, Cardone Reman 60-2107 and Dayco 71503 for the same application. See all 21.
CV Axle Shaft for Ford Aspire
TrakMotive FD-8091 is a new CV axle shaft for the front left position on 1994-1997 Ford Aspire models. It is built with a 24.02 in. compressed length, a neoprene boot, and a toothed ABS tone ring with 44 teeth for applications that use ABS sensing at the axle.
Key Features
- Fits 1994-1997 Ford Aspire, front left
- New CV axle shaft for driveline and axle service
- Inboard joint type: male; outboard joint type: conventional
- 22 inboard splines and 24 outboard splines
- ABS tone ring included with 44-tooth toothed ring
- Axle nut included with M20 x 1.5 thread, hex head, and stake locking type
- Neoprene boot material for axle joint protection
- Overall compressed length: 24.02 in. (610 mm)
Product Details
TrakMotive CV Axle Shaft FD-8091 is a direct-fit driveline replacement for the Ford Aspire front left position. The axle is engineered as a new assembly with the specified spline counts, male inboard connection, and conventional outboard connection to match the listed application. The included ABS tone ring and axle nut support proper service on vehicles using the confirmed fitment. This part cross-references Cardone Reman 60-2107 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint during turns
- Vibration caused by a damaged or out-of-balance axle shaft
- Boot failure that leads to grease loss and joint wear
- ABS warning concerns related to a damaged tone ring
- Driveline noise from excessive axle play or spline wear
Installation Notes and Tips
Verify spline count, axle length, and axle nut thread size before installation. Inspect the hub, seals, and mating components for wear before fitting the new axle. Torque the axle nut to the vehicle manufacturer specification and stake it as required. Confirm ABS sensor operation after installation on 1994-1997 Ford Aspire front left applications.
Quality Assurance
TrakMotive identifies this axle as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company processes. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Ford | Aspire | Manual | Front Left | CV Axle Shaft |
| 1996 | Ford | Aspire | Manual | Front Left | CV Axle Shaft |
| 1995 | Ford | Aspire | Manual | Front Left | CV Axle Shaft |
| 1994 | Ford | Aspire | Manual | Front Left | CV Axle Shaft |
