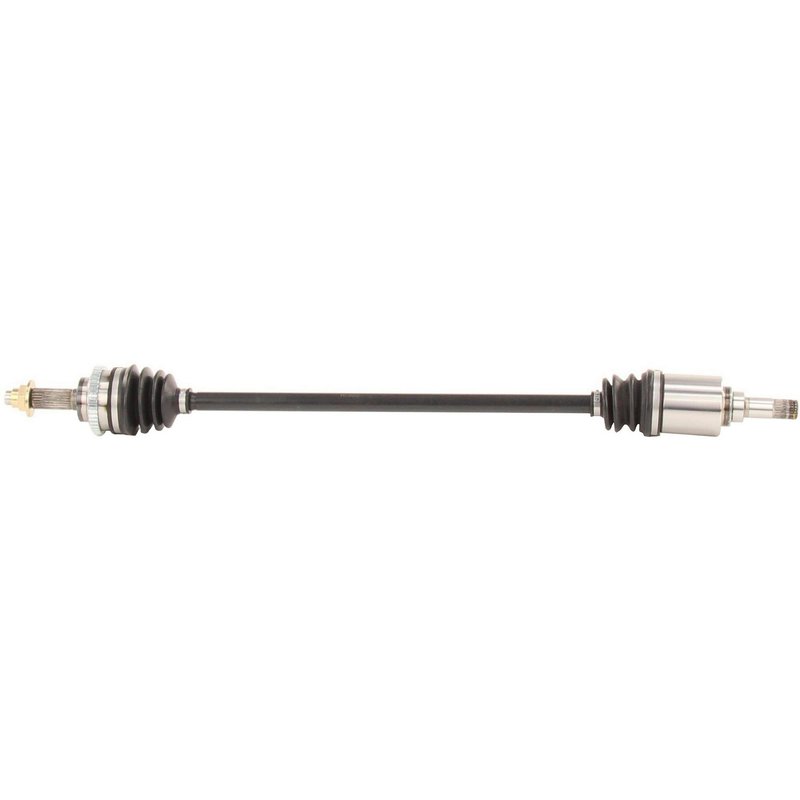

TrakMotive FD-8092 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8092 for Ford Aspire

The TrakMotive CV Axle Shaft FD-8092 is engineered specifically for the Ford Aspire, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures compatibility and durability for your vehicle's CV components.

• Compatible with Ford Aspire models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Comes with a hex head axle nut (M20*1.5 thread size)
• Overall compressed length of 35 inches (889 mm)
• Inboard joint type: Male with 22 splines
• Outboard joint type: Conventional with 24 splines
• Axle nut locking type: Stake

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and function for driveline and axle components. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts to provide a complete replacement solution. The FD-8092 model exemplifies this approach by integrating a toothed ABS ring and a stake-type locking axle nut to maintain secure and consistent performance in the Ford Aspire.

Technical Specifications and Features

The FD-8092 CV Axle Shaft features a 44-tooth ABS ring designed to work seamlessly with the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included is a hex head type with a 28.8 mm (1 1/7 inch) hex size and a length of 33.3 mm (1 1/3 inch), secured by a stake locking mechanism to prevent loosening during operation. The inboard joint uses a male connection style with 22 splines, while the outboard joint is conventional with 24 splines, ensuring proper fitment and torque transfer. The overall compressed length of 35 inches (889 mm) matches OEM specifications for the Ford Aspire.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Ford Aspire vehicles
• Restoring proper ABS sensor function with included toothed ABS ring
• Eliminating axle vibration or clicking noises caused by joint wear
• Addressing boot damage to prevent grease leakage and contamination
• Securing axle connection with included stake-type locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft FD-8092, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to ensure long-term protection. This axle shaft is designed for direct replacement on Ford Aspire models, so no modifications should be necessary.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The inclusion of the ABS tone ring and axle nut provides a comprehensive replacement package. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in driveline applications.
