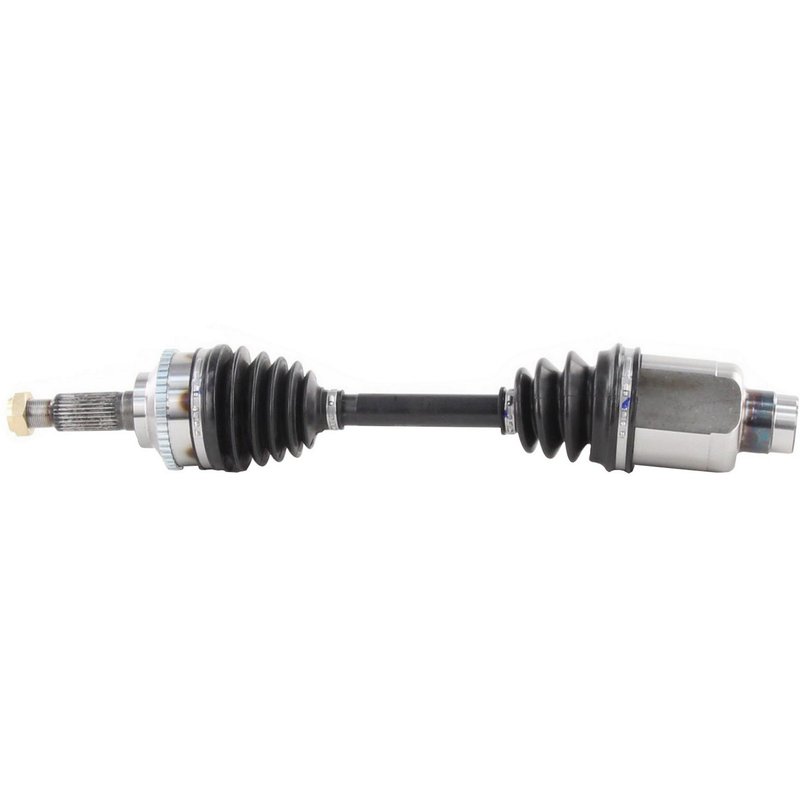

TrakMotive FD-8095 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8095

The TrakMotive CV Axle Shaft FD-8095 is engineered for reliable driveline performance in Ford Escape, Mazda Tribute, and Mercury Mariner vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Ford Escape, Mazda Tribute, and Mercury Mariner models
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• 44-tooth ABS ring with included tone ring for accurate wheel speed sensing
• Overall compressed length of 21.46 inches (545 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This CV Axle Shaft FD-8095 features a conventional outboard joint and a female inboard joint connection style, ensuring compatibility with the specified vehicle models. The inclusion of a toothed ABS ring and tone ring supports proper ABS functionality, critical for vehicle safety systems.

Technical Specifications and Features

This CV axle shaft includes a 44-tooth ABS ring with a toothed design and an ABS tone ring, which are essential for accurate wheel speed monitoring. The axle nut is a self-locking type with a hex head measuring 1 1/4 inches (32 mm) across flats, 3/5 inches (15 mm) in height, and 1 1/2 inches (37 mm) in length, ensuring secure installation. The neoprene boot material provides resistance to wear and environmental factors, protecting the joints from contaminants. The inboard joint is female with 35-1t splines, while the outboard joint is conventional with 28 splines, matching the original equipment specifications.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Ford Escape, Mazda Tribute, and Mercury Mariner
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boots
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft FD-8095, verify compatibility with your vehicle’s make and model. Use the included self-locking hex axle nut (M22*1.5 thread) and torque to manufacturer specifications. Inspect the axle splines and joints for proper engagement and ensure the neoprene boots are seated correctly to prevent premature wear. The ABS tone ring must be properly aligned to maintain accurate wheel speed sensor readings.

Quality Assurance and Warranty

This CV axle shaft is a new, direct replacement part manufactured to meet OEM standards. It includes a self-locking axle nut and ABS components to maintain vehicle safety and performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Ford Escape, Mazda Tribute, and Mercury Mariner vehicles.
