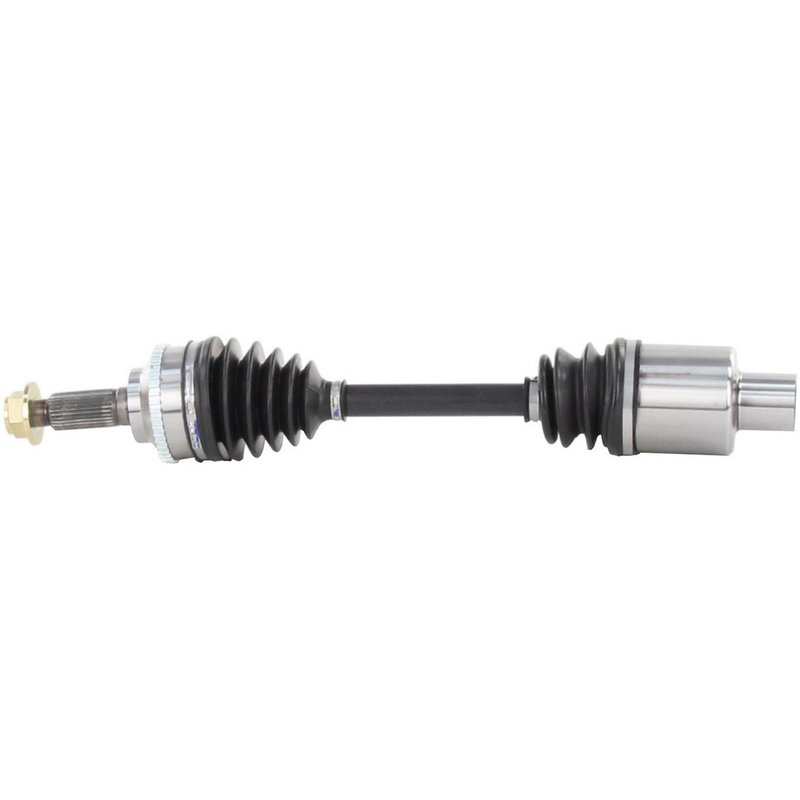

TrakMotive FD-8099 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8099

The TrakMotive CV Axle Shaft FD-8099 is designed for reliable driveline performance in Ford Escape and Mazda Tribute vehicles. This new CV axle shaft ensures proper torque transfer and smooth operation, featuring key components like a neoprene boot and a self-locking axle nut.

• Compatible with Ford Escape and Mazda Tribute models
• Includes a 44-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for durability and protection
• Self-locking hex axle nut (M22*1.5 thread size) included
• Overall compressed length of 22.28 inches (566 mm)
• Female inboard joint with 35 splines and conventional outboard joint with 28 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and function for driveline and axle components. This line emphasizes quality materials and accurate specifications, such as the inclusion of ABS tone rings and robust joint designs, to maintain vehicle safety and performance. The FD-8099 model exemplifies these standards with its detailed engineering tailored for specific Ford and Mazda applications.

Technical Specifications and Features

The FD-8099 CV axle shaft features a 44-tooth ABS ring with a toothed design, which is included to ensure proper ABS sensor function. The axle nut is a self-locking hex type, measuring 1 1/4 inches (31.8 mm) across the flats, with a height of 21.2 mm (5/6 inch) and a length of 34.4 mm (1 1/3 inch). The boot is made from neoprene, providing resistance to wear and environmental factors. The inboard joint is female with 35 splines, while the outboard joint is conventional with 28 splines, ensuring compatibility with the specified vehicle models. The overall compressed length of 22.28 inches (566 mm) fits the driveline requirements of the Ford Escape and Mazda Tribute.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Ford Escape and Mazda Tribute
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

When installing the FD-8099 CV axle shaft, verify compatibility with your specific Ford Escape or Mazda Tribute model year. Use proper torque specifications for the M22*1.5 self-locking axle nut to ensure secure fitment. Inspect the neoprene boot for any damage during installation to maintain joint protection. It is recommended to replace axle nuts with the included new hardware to maintain locking integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8099 is a new, not remanufactured, component engineered to meet OEM standards. It includes a self-locking axle nut and ABS tone ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and fitment accuracy.
