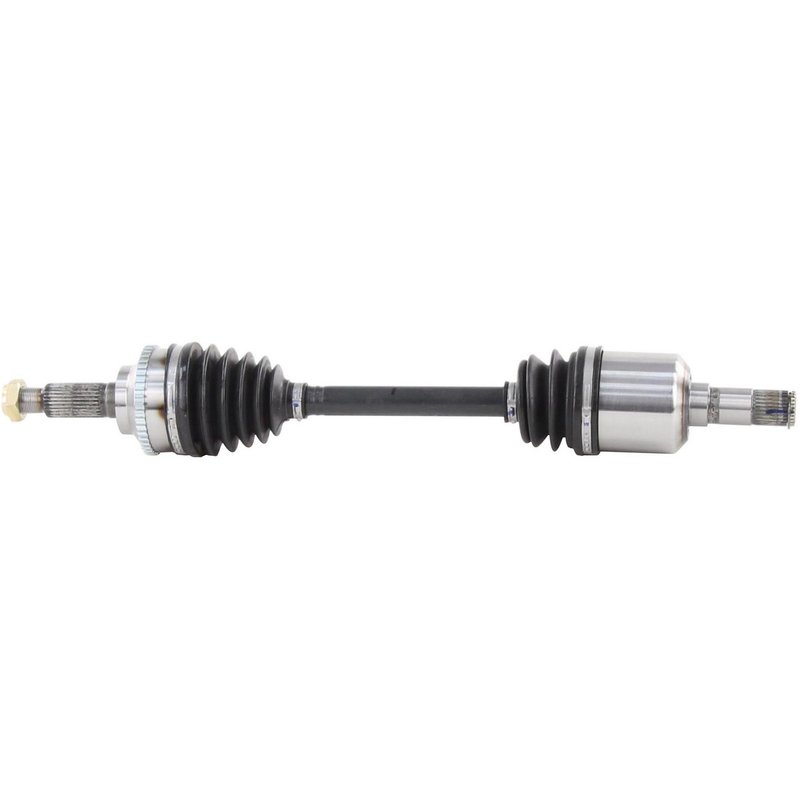

TrakMotive FD-8100 CV Axle Shaft - Front Left

Overview of TrakMotive FD-8100 CV Axle Shaft

The TrakMotive FD-8100 CV Axle Shaft is designed specifically for Ford Escape and Mazda Tribute models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Ford Escape and Mazda Tribute vehicles
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced durability and protection
• 44-tooth ABS ring with a toothed design and included tone ring
• Overall compressed length of 24.69 inches (627 mm)
• 28 splines on both inboard and outboard joints for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and includes essential hardware like self-locking axle nuts to ensure proper installation and long-term performance. The FD-8100 model exemplifies this approach by combining exact fitment features with durable construction for Ford Escape and Mazda Tribute models.

Technical Specifications and Features

The FD-8100 CV Axle Shaft includes a 44-tooth ABS ring with a toothed design and an included tone ring, which supports accurate ABS sensor readings. The axle nut is a hex head type, measuring 1 1/4 inches (32 mm) across flats, with a height of 3/5 inch (15 mm) and a length of 1 1/2 inches (37 mm). It features a self-locking mechanism to maintain secure fastening. Both the inboard and outboard joints have 28 splines, with the inboard joint designed as a male type and the outboard joint as conventional. The neoprene boot material offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The overall compressed length of the axle shaft is 24.69 inches (627 mm), ensuring proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Escape and Mazda Tribute
• Restores proper ABS sensor function with included toothed ABS ring and tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Addresses grease leakage issues by providing a durable neoprene boot
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

When installing the FD-8100 CV Axle Shaft, verify compatibility with your specific Ford Escape or Mazda Tribute model year. Use the included self-locking hex axle nut (M22*1.5 thread) and torque to manufacturer specifications. Inspect the axle splines and joint connections for proper engagement. The neoprene boot should be carefully positioned to avoid pinching or damage during installation. Ensure the ABS tone ring is correctly aligned to maintain accurate sensor readings.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards. It includes all necessary hardware for installation and is manufactured with quality materials such as neoprene boots and precision-machined splines. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Ford Escape and Mazda Tribute vehicles.
