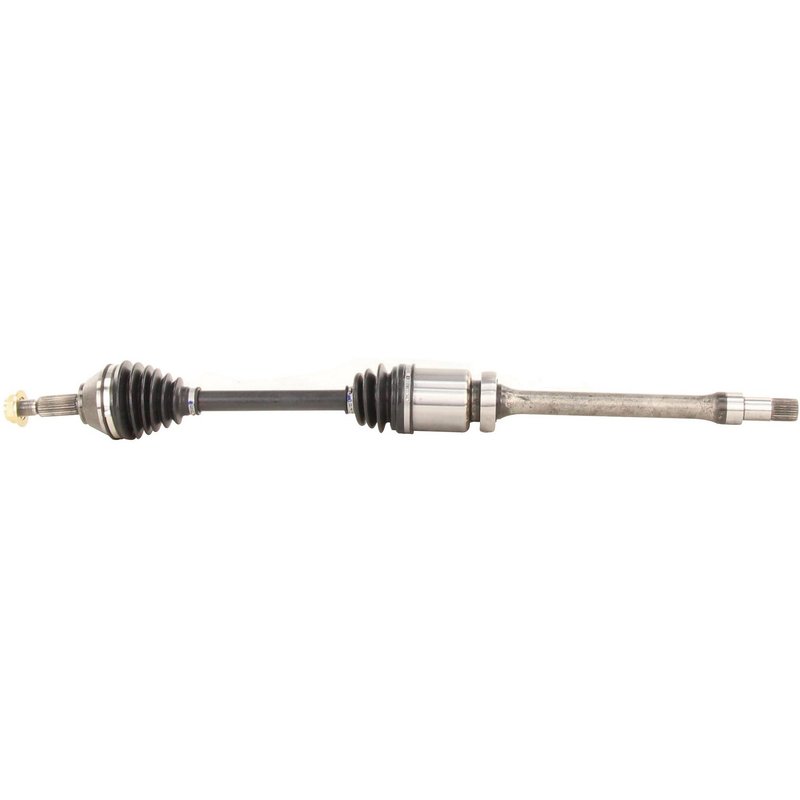

TrakMotive FD-8107 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8107

The TrakMotive CV Axle Shaft FD-8107 is designed specifically for Ford Transit Connect vehicles, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Ford Transit Connect models
• Includes self-locking axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with 1 1/4 inch (32 mm) hex size
• Overall compressed length of 37.83 inches (961 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for precise fit and function. This line includes new axle shafts designed to meet OEM specifications, featuring durable neoprene boots and reliable joint types to maintain driveline integrity. The FD-8107 model is part of this line, offering a balance of strength and compatibility for Ford Transit Connect vehicles.

Technical Specifications and Features

The FD-8107 CV axle shaft features a male inboard joint type with 26 splines and a conventional outboard joint with 25 splines, ensuring secure shaft connections. The included axle nut is a self-locking type with a hex head measuring 1 1/4 inches across flats and a height of 4/5 inch (20 mm). The axle nut length is 1 1/2 inches (37 mm), designed to provide a secure fit. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joints from contaminants and extending service life.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Ford Transit Connect
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage from torn or degraded CV boots
• Fixes axle shaft failure due to joint wear or spline damage
• Restores driveline stability and smooth power transfer to front wheels

Installation Notes and Tips

When installing the TrakMotive FD-8107 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle splines and joint connections for proper engagement before final assembly. Use appropriate tools for the 1 1/4 inch hex axle nut to avoid rounding. Verify the neoprene boot is seated correctly to prevent contamination and premature wear.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards for fit and function. TrakMotive products undergo quality control inspections to ensure durability and performance. While specific warranty details are not provided, the new condition and OEM-level construction support reliable service life when installed correctly.
