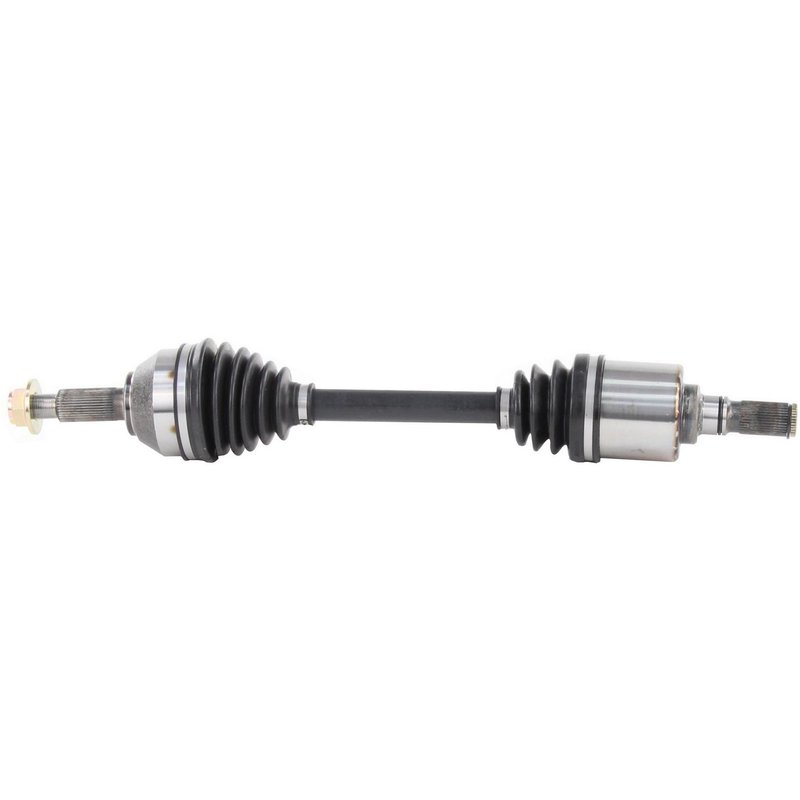

TrakMotive FD-8117 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8117 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21.2 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.2 |
| Overall Compressed Length (mm) | 640 |
| Product line | CV Axle Shaft |
| Fits | Ford and Mercury · 18 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Self-locking hardware is ready for installation.
Cross-references Cardone New 66-2164, Cardone Reman 60-2164 and Dayco 70687 for the same application. See all 15.
Front Left CV Axle Shaft for Ford and Mercury
TrakMotive FD-8117 is a new front left CV axle shaft for select 2005-2007 Ford Five Hundred, Ford Freestyle, and Mercury Montego applications. It is built with a neoprene boot, a self-lock axle nut, and the correct spline counts for direct replacement service.
Key Features
- New CV axle shaft for front left driveline service
- Overall compressed length: 25.2 in. (640 mm)
- Inboard joint type: male; outboard joint type: conventional
- 37 inboard splines and 38 outboard splines
- Neoprene boot material for axle joint protection
- Axle nut included with hex head, M22 x 1.5 thread, self-lock design
- No ABS tone ring included
- TrakMotive FD-8117 cross-references Cardone New 66-2164 and Cardone Reman 60-2164 for the same application
Detailed Description
TrakMotive CV Axle Shaft FD-8117 is a direct-fit driveline replacement for front left applications on the 2005-2007 Ford Five Hundred, 2005-2007 Ford Freestyle, and 2005-2007 Mercury Montego. This CV axle shaft uses a male inboard connection, a conventional outboard connection, and the specified spline counts to match the original driveline layout. The included axle nut features a 31.8 mm hex size and M22 x 1.5 thread size for proper service fitment. TrakMotive FD-8117 is a practical choice when replacing a worn axle on a Ford Five Hundred front left or Mercury Montego front left setup.
The TrakMotive CV Axle Shaft line is positioned for replacement applications where correct fit, joint style, and compressed length matter. This part number, FD-8117, is built as a new unit and is backed by TrakMotive’s manufacturing quality standards, including ISO 9001:1007 and TS 16949:2009 certification.
What It Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Axle noise caused by spline or joint wear
- Front left driveline replacement after axle damage
Installation Notes and Tips
Verify front left fitment by year, make, model, spline count, and compressed length before installation. This axle does not include an ABS tone ring, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Confirm axle nut thread size, hex size, and locking style during service to ensure proper assembly. Always inspect related hub, bearing, and suspension components when replacing a CV axle shaft.
Quality Assurance
TrakMotive FD-8117 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Ford | Five Hundred | FWD | Automatic CVT | Front Left | (Select Shift); CV Axle Shaft |
| 2007 | Ford | Five Hundred | AWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2007 | Ford | Freestyle | FWD | — | Front Left | CV Axle Shaft |
| 2007 | Ford | Freestyle | AWD | — | Front Left | CV Axle Shaft |
| 2007 | Mercury | Montego | FWD | Automatic CVT | Front Left | (Select Shift); CV Axle Shaft |
| 2007 | Mercury | Montego | AWD | — | Front Left | CV Axle Shaft |
| 2006 | Ford | Five Hundred | FWD | Automatic CVT | Front Left | (Select Shift); CV Axle Shaft |
| 2006 | Ford | Five Hundred | AWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2006 | Ford | Freestyle | FWD | — | Front Left | CV Axle Shaft |
| 2006 | Ford | Freestyle | AWD | — | Front Left | CV Axle Shaft |
| 2006 | Mercury | Montego | FWD | Automatic CVT | Front Left | (Select Shift); CV Axle Shaft |
| 2006 | Mercury | Montego | AWD | — | Front Left | CV Axle Shaft |
| 2005 | Ford | Five Hundred | FWD | Automatic CVT | Front Left | (Select Shift); CV Axle Shaft |
| 2005 | Ford | Five Hundred | AWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2005 | Ford | Freestyle | FWD | — | Front Left | CV Axle Shaft |
| 2005 | Ford | Freestyle | AWD | — | Front Left | CV Axle Shaft |
| 2005 | Mercury | Montego | FWD | Automatic CVT | Front Left | (Select Shift); CV Axle Shaft |
| 2005 | Mercury | Montego | AWD | — | Front Left | CV Axle Shaft |
