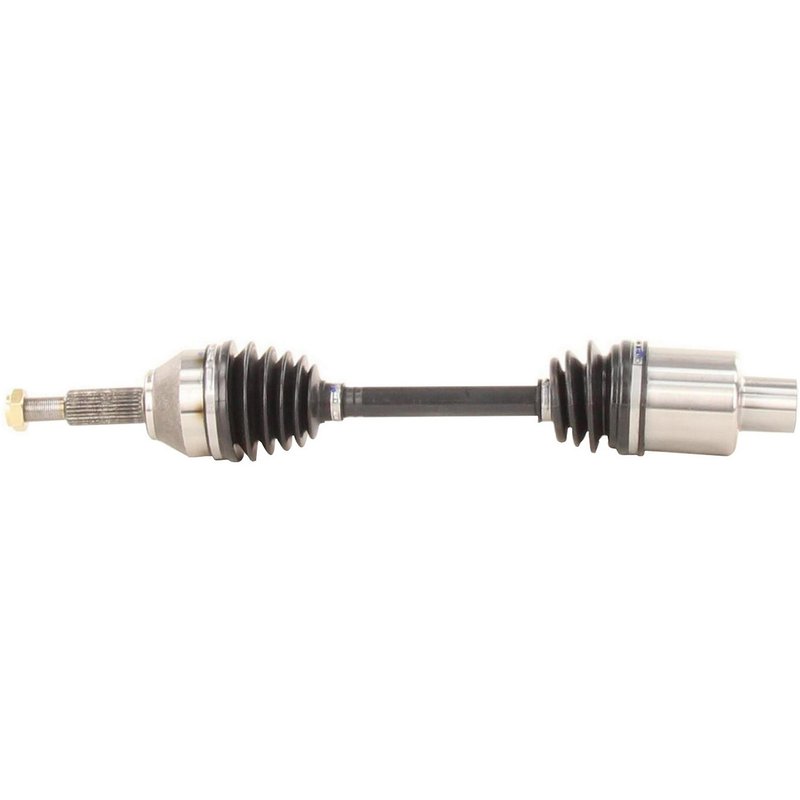

TrakMotive FD-8120 CV Axle Shaft - Front Left

TrakMotive FD-8120 CV Axle Shaft

The TrakMotive FD-8120 CV axle shaft is a new front left driveline replacement for select Ford Freestar models. Built for 2004-2007 Ford Freestar applications, this CV axle shaft is specified with a 588 mm overall compressed length, 35 inboard splines, and 26 outboard splines for direct-fit service.

TrakMotive’s CV Axle Shaft line focuses on application-specific driveline replacement parts, and this FD-8120 unit follows that approach with OE-style dimensions and connection styles. It is a front left CV axle shaft for Ford Freestar service, and it includes a self-lock axle nut with M20 x 1.5 thread size.

Key Features

• Fits 2004-2007 Ford Freestar, front left
• New CV axle shaft for driveline repair
• Overall compressed length: 23.15 in. (588 mm)
• 35 inboard splines and 26 outboard splines
• Female inboard shaft connection style
• Conventional outboard joint type
• Neoprene boot material
• Axle nut included with hex head, self-lock design
• Axle nut thread size: M20 x 1.5
• No ABS tone ring included

Detailed Description

TrakMotive FD-8120 is a front left CV axle shaft for the 2004-2007 Ford Freestar. It is a new replacement axle built with a female inboard connection, conventional outboard joint, and the specified spline counts to match the original driveline layout. The neoprene boot helps protect the joint assembly, while the included axle nut supports a complete axle service on the correct application.

This part cross-references Cardone New 66-2156 for the same application. If you are replacing a worn or noisy Ford Freestar front axle, FD-8120 provides the correct fitment profile for the listed vehicle range and position. Search terms such as Ford Freestar front left CV axle shaft, 2004 Ford Freestar axle replacement, and 2007 Ford Freestar driveline repair all point to this application.

What It Helps Fix

• Clicking or popping from a worn CV joint during turns
• Vibration or shudder from a damaged axle shaft
• Grease leakage from a torn axle boot
• Excessive play in the front driveline
• Noise caused by spline or joint wear

Installation Notes and Tips

• Verify front left position and match the listed 2004-2007 Ford Freestar fitment before installation.
• Confirm axle length, spline count, and axle nut thread size against the original part.
• Inspect hub, bearing, and suspension components for wear before installing the new axle.
• Use proper torque procedures for the included self-lock axle nut.
• Check ABS-related components on the vehicle, since this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive manufactures this CV axle shaft as a new replacement part and identifies the FD-8120 under its CV Axle Shaft product line. The manufacturer states that its products are backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified.
