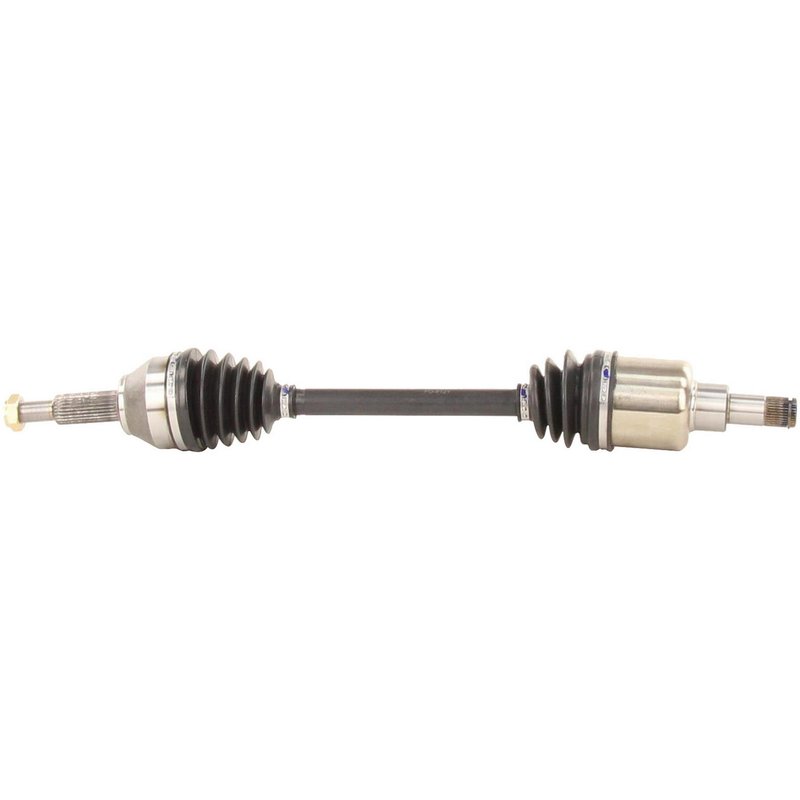

TrakMotive FD-8121 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8121 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.17 |
| Overall Compressed Length (mm) | 690 |
| Product line | CV Axle Shaft |
| Fits | Ford and Mercury · 4 vehicles |
New CV axle shaft. Built as a direct-fit replacement for driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Self-locking axle nut. Included for a secure, ready-to-install setup.
Cross-references Cardone New 66-2157, Cardone Reman 60-2157 and Dayco 72064 for the same application. See all 14.
Front Right CV Axle Shaft for Freestar
Restore driveline performance with this TrakMotive CV Axle Shaft, part number FD-8121, for the front right position on 2004-2007 Ford Freestar models. It is a new axle assembly built with a neoprene boot, included axle nut, and application-specific spline counts for a direct replacement on the listed vehicle fitment.
Key Features
- TrakMotive CV Axle Shaft, part number FD-8121
- Fits 2004-2007 Ford Freestar, front right
- New construction for replacement service
- Neoprene boot material for joint protection
- Included axle nut with M20 x 1.5 thread, 30 mm hex size, and self-lock design
- 35 inboard splines and 26 outboard splines
- Overall compressed length: 27.17 in. (690 mm)
- Male inboard shaft connection with conventional outboard joint type
- No ABS tone ring included
Product Details
The TrakMotive FD-8121 CV axle shaft is a direct-fit driveline replacement for the front right side of the Ford Freestar from 2004 through 2007. It is built as a new axle assembly with a male inboard connection, conventional outboard joint, and the correct compressed length for the listed application. The included axle nut and specified spline counts help match OE-style fitment requirements for this vehicle platform. This part cross-references Cardone New 66-2157 for the same application.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this FD-8121 follows that approach with application-specific dimensions and hardware details. It is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration during acceleration caused by axle wear or imbalance
- Torn or deteriorated axle boot allowing grease loss and contamination
- Excessive driveline play from a damaged axle shaft
- Front right axle failure on a 2004-2007 Ford Freestar
Installation Notes and Tips
Verify the vehicle’s front right application, spline count, and axle length before installation. Confirm whether the vehicle is equipped for a non-ABS axle configuration, since this axle does not include an ABS tone ring. Inspect the hub, seals, and surrounding driveline components during replacement, and torque the included axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive identifies this axle shaft as a new replacement part and states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certification. The FD-8121 is also backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Ford | Freestar | Front Right | CV Axle Shaft |
| 2006 | Ford | Freestar | Front Right | CV Axle Shaft |
| 2005 | Ford | Freestar | Front Right | CV Axle Shaft |
| 2004 | Ford | Freestar | Front Right | CV Axle Shaft |
