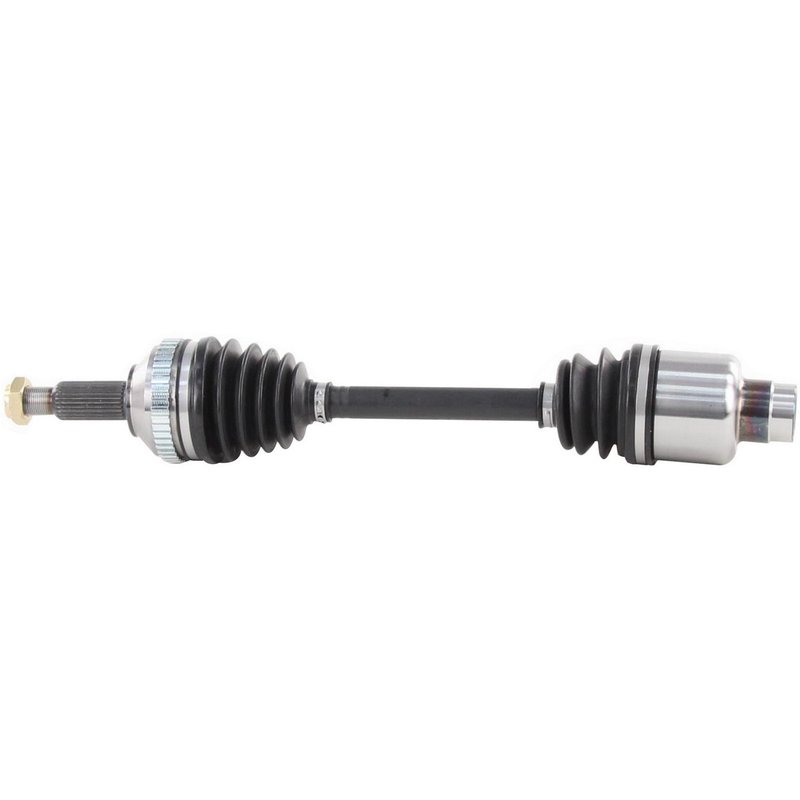

TrakMotive FD-8124 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Ford and Mercury Vehicles

The TrakMotive FD-8124 CV Axle Shaft is engineered to meet the specific driveline needs of Ford Contour, Mercury Cougar, and Mystique models. Designed for durability and precise fitment, this new CV axle shaft ensures smooth power transfer and reliable vehicle performance.

Key Features of the TrakMotive FD-8124 CV Axle Shaft

• ABS ring with 44 toothed teeth for accurate wheel speed sensing
• Includes ABS tone ring for enhanced braking system compatibility
• Hex head axle nut with self-locking design for secure installation
• Neoprene boot material for superior protection against contaminants
• Female inboard joint and conventional outboard joint for proper drivetrain connection
• Overall compressed length of 22.32 inches (567 mm) for exact fitment
• Axle nut thread size M22*1.5 with 1 1/4 inch hex size

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering high-quality constant velocity components tailored for specific vehicle applications. This product line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance. The FD-8124 model exemplifies this approach by matching the exact specifications required for select Ford and Mercury vehicles.

Detailed Product Description

The FD-8124 CV Axle Shaft from TrakMotive is a new, direct replacement part designed for the Ford Contour, Mercury Cougar, and Mystique. It features a 44-tooth ABS ring and includes the ABS tone ring, which is essential for maintaining proper ABS function. The axle nut is a self-locking hex type, measuring 1 1/4 inches across flats and 1 1/2 inches in length, ensuring a secure fit. The neoprene boot protects the CV joints from dirt and moisture, extending the life of the axle. The inboard joint uses a female connection style with 35-1t splines, while the outboard joint is conventional with 27 splines, matching factory specifications for these vehicles. The overall compressed length of 22.32 inches (567 mm) ensures proper fitment without modification.

Common Issues Addressed by This CV Axle Shaft

• Eliminates clicking or popping noises during turns caused by worn CV joints
• Restores smooth power transfer to the wheels for improved drivability
• Prevents vibration or shuddering at higher speeds due to axle imbalance
• Replaces damaged or torn boots to protect internal components
• Maintains ABS sensor functionality with included tone ring

Installation Notes and Tips

• Verify vehicle compatibility with Ford Contour, Mercury Cougar, or Mystique before installation
• Use the included self-locking hex axle nut (M22*1.5 thread) and torque to manufacturer specifications
• Inspect surrounding suspension and drivetrain components during installation for wear
• Ensure the ABS tone ring is properly seated to maintain sensor accuracy
• Grease CV joints as recommended to prevent premature wear

Quality Assurance and Warranty

The TrakMotive FD-8124 CV Axle Shaft is manufactured to meet or exceed OEM standards for fit and function. This new axle shaft undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
