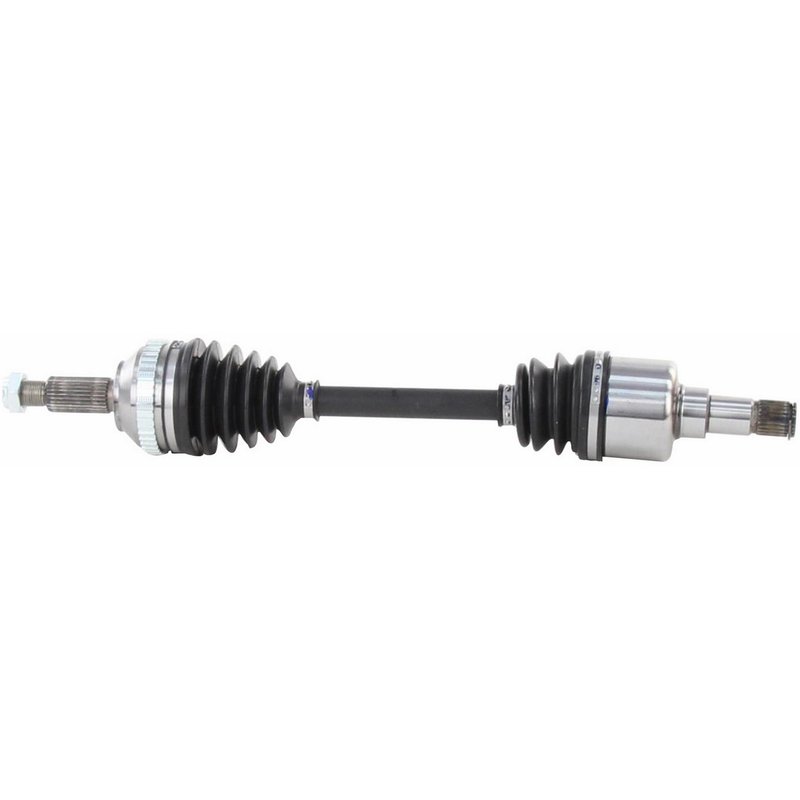

TrakMotive FD-8125 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8125

The TrakMotive CV Axle Shaft FD-8125 is engineered for reliable driveline performance in select Ford and Mercury vehicles. Designed specifically for models like the Ford Contour, Mercury Cougar, and Mercury Mystique, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Ford Contour, Mercury Cougar, and Mercury Mystique
• Includes ABS tone ring with 44 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a self-locking hex axle nut (M22*1.5 thread size) included for secure installation
• Overall compressed length of 24.37 inches (619 mm) for exact fit
• Inboard joint type: male with 26 splines; outboard joint type: conventional with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This line emphasizes quality materials and accurate specifications, such as the inclusion of ABS tone rings and durable neoprene boots, to maintain vehicle safety and performance. The FD-8125 model exemplifies these standards with its detailed engineering for Ford and Mercury models.

Technical Specifications and Features

The FD-8125 CV axle shaft includes a 44-tooth ABS ring with a toothed design, ensuring compatibility with the vehicle's anti-lock braking system. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The axle nut is a self-locking hex type, measuring 1 1/4 inches (32 mm) across flats, with a height of 15 mm (3/5 inch) and length of 37 mm (1 1/2 inch), designed to maintain secure fastening under operating conditions. The inboard joint features a male connection style with 26 splines, while the outboard joint uses a conventional connection with 27 splines. The overall compressed length of 24.37 inches (619 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Contour, Mercury Cougar, and Mercury Mystique
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures driveline connection with included self-locking axle nut

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. Use proper torque specifications for the M22*1.5 self-locking axle nut to maintain secure fitment. Inspect the axle shaft splines and joint connections for damage prior to installation. The included ABS tone ring should be handled carefully to avoid damage to the teeth, which are critical for ABS sensor accuracy. It is recommended to replace the axle nut with the new one provided to ensure locking integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8125 is a new, not remanufactured, component designed to meet OEM specifications. Manufactured with quality materials such as neoprene boots and precision-machined splines, this axle shaft supports reliable vehicle operation. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
