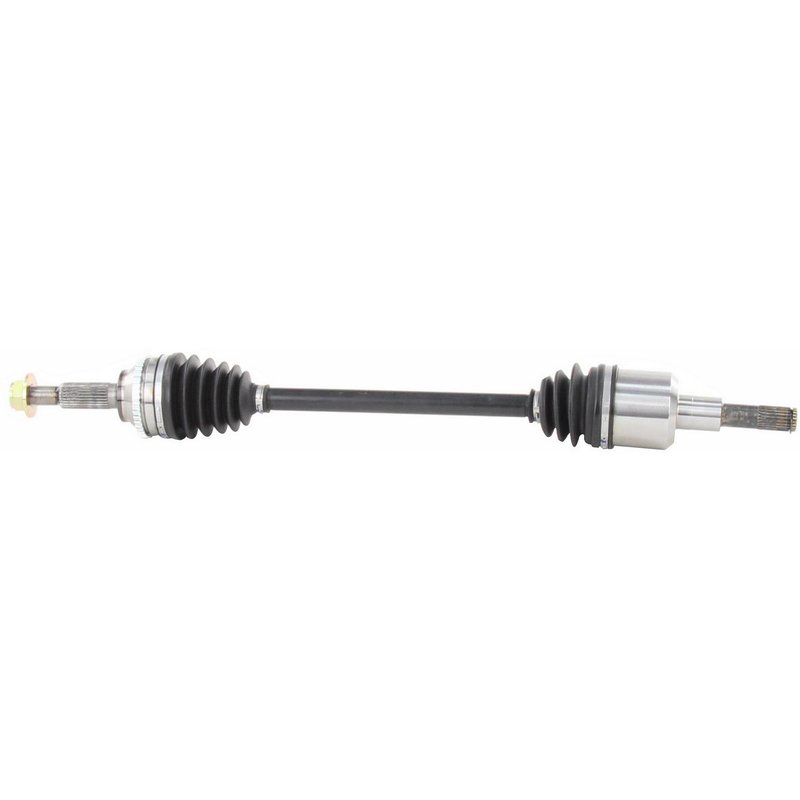

TrakMotive FD-8133 CV Axle Shaft - Rear Left
| Brand | TrakMotive FD-8133 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/5 |
| Axle Nut Hex Size (mm) | 30.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 2/5 |
| Axle Nut Length (mm) | 35.56 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 31.42 |
| Overall Compressed Length (mm) | 798 |
| Product line | CV Axle Shaft |
| Fits | Ford, Mercury, and Mazda · 22 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references Cardone New 66-2098, Cardone Reman 60-2098 and Dayco 71533 for the same application. See all 18.
Rear Left CV Axle Shaft for Ford Escape, Mariner, Tribute
Restore driveline performance with the TrakMotive FD-8133 CV axle shaft. This new rear left axle is built for 2001-2007 Ford Escape, 2005-2007 Mercury Mariner, and 2001-2006 Mazda Tribute applications, with fitment matched to the listed spline counts, ABS tone ring, and axle nut specifications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: FD-8133
- Fits rear left applications on Ford Escape, Mercury Mariner, and Mazda Tribute
- New axle shaft construction
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 44-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 30.8 mm hex size, and self-locking design
- Overall compressed length: 31.42 in. (798 mm)
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Detailed Description
The TrakMotive FD-8133 is a rear left CV axle shaft engineered for specific Ford Escape, Mercury Mariner, and Mazda Tribute driveline applications. It features a male inboard connection, conventional outboard joint design, and a neoprene boot for durable service in everyday driving conditions. The included toothed ABS tone ring and 44-tooth count support vehicles equipped with ABS, while the axle nut specifications are matched to the application for proper service replacement. TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts, and this FD-8133 axle is built as a new component for the listed rear left positions.
This part cross-references Cardone New 66-2098 and Dayco 71533 for the same application.
What It Helps Fix
- Clicking or popping noises from the rear axle area during turns or acceleration
- Vibration or shudder caused by a worn CV joint
- ABS warning concerns related to a damaged or missing tone ring
- Grease leakage from a deteriorated axle boot
- Driveline looseness or reduced power transfer at the rear left wheel
Installation Notes and Tips
Verify rear left fitment by year, make, model, and ABS configuration before installation. Confirm axle nut thread size, hex size, and overall length against the original part to ensure correct replacement. Inspect the hub, seals, and surrounding suspension components during service, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The part is produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent manufacturing control for the listed Ford Escape, Mercury Mariner, and Mazda Tribute applications.
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Ford | Escape | — | AWD | — | Rear Left | CV Axle Shaft |
| 2007 | Ford | Escape | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2007 | Mercury | Mariner | — | AWD | — | Rear Left | CV Axle Shaft |
| 2007 | Mercury | Mariner | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2006 | Ford | Escape | — | AWD | — | Rear Left | CV Axle Shaft |
| 2006 | Ford | Escape | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2006 | Mazda | Tribute | — | AWD | — | Rear Left | CV Axle Shaft |
| 2006 | Mercury | Mariner | — | AWD | — | Rear Left | CV Axle Shaft |
| 2006 | Mercury | Mariner | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2005 | Ford | Escape | — | AWD | — | Rear Left | CV Axle Shaft |
| 2005 | Ford | Escape | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2005 | Mazda | Tribute | — | AWD | — | Rear Left | CV Axle Shaft |
| 2005 | Mercury | Mariner | — | AWD | GAS | Rear Left | CV Axle Shaft |
| 2005 | Mercury | Mariner | Base | 4WD | GAS | Rear Left | CV Axle Shaft |
| 2004 | Ford | Escape | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2004 | Mazda | Tribute | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2003 | Ford | Escape | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2003 | Mazda | Tribute | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2002 | Ford | Escape | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2002 | Mazda | Tribute | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2001 | Ford | Escape | — | 4WD | — | Rear Left | CV Axle Shaft |
| 2001 | Mazda | Tribute | — | 4WD | — | Rear Left | CV Axle Shaft |
