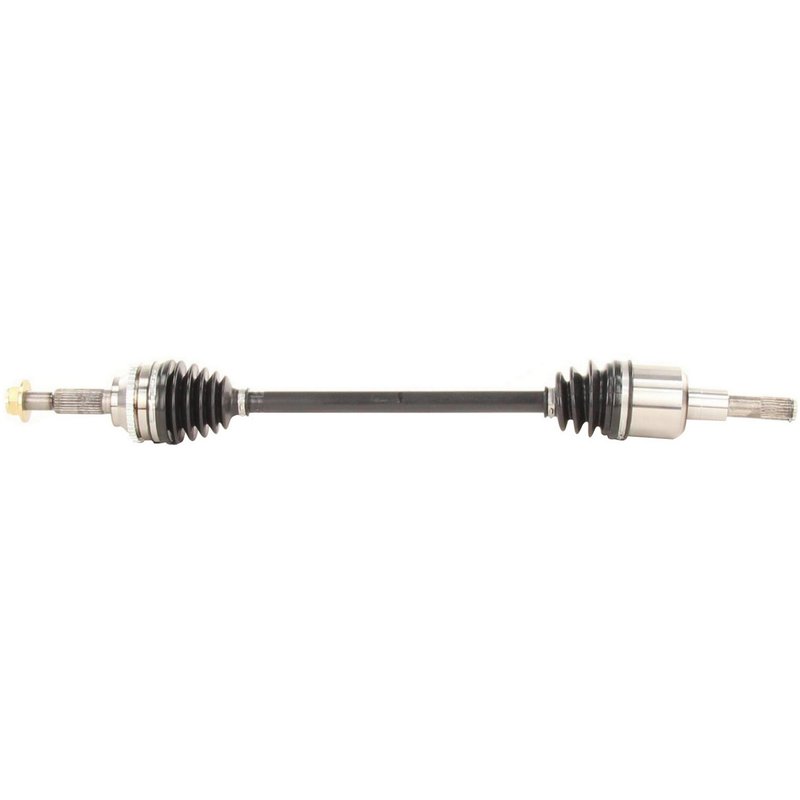

TrakMotive FD-8135 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-8135 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/5 |
| Axle Nut Hex Size (mm) | 30.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 2/5 |
| Axle Nut Length (mm) | 35.56 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 33.46 |
| Overall Compressed Length (mm) | 850 |
| Product line | CV Axle Shaft |
| Fits | Ford, Mercury, and Mazda · 22 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references Cardone New 66-2102, Cardone Reman 60-2100 and Cardone Reman 60-2102 for the same application. See all 18.
Rear Right CV Axle Shaft for Ford Escape
Restore smooth power transfer at the rear right corner with the TrakMotive CV Axle Shaft FD-8135. This new axle shaft is built for confirmed rear right fitment on 2001-2007 Ford Escape, 2005-2007 Mercury Mariner, and 2001-2006 Mazda Tribute applications.
TrakMotive FD-8135 is a CV axle shaft from the TrakMotive CV Axle Shaft line, engineered as a direct replacement for the specified rear right driveline position. It includes a neoprene boot, a male inboard shaft connection, and a conventional outboard joint layout. The axle also comes with a self-lock axle nut and an ABS tone ring with 44 teeth for applications that require ABS signal integration.
Key Features
- New CV axle shaft for rear right installation
- Fits 2001-2007 Ford Escape, rear right
- Fits 2005-2007 Mercury Mariner, rear right
- Fits 2001-2006 Mazda Tribute, rear right
- 44-tooth toothed ABS ring with ABS tone ring included
- Neoprene boot material for driveline protection
- Male inboard shaft connection with conventional outboard joint
- Includes axle nut with M22 x 1.5 thread size and 30.8 mm hex
- Overall compressed length: 850 mm (33.46 in.)
Detailed Description
TrakMotive FD-8135 is a rear right CV axle shaft for Ford Escape, Mercury Mariner, and Mazda Tribute models listed above. It is built as a new replacement axle with 23 inboard splines, 26 outboard splines, and an overall compressed length of 850 mm to match the specified driveline geometry. The axle nut is included, and the assembly uses a hex-head, self-lock nut with M22 x 1.5 threads.
This part cross-references Cardone New 66-2102 and Dayco 71534 for the same application. If you are searching for a rear right CV axle shaft for 2001-2007 Ford Escape, 2005-2007 Mercury Mariner, or 2001-2006 Mazda Tribute, FD-8135 is the direct part number to reference.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint during acceleration or turning
- Vibration caused by a damaged or out-of-balance axle shaft
- Boot failure that allows grease loss and contamination
- ABS warning concerns related to a damaged tone ring or sensor signal path
- Driveline noise from excessive spline or joint wear
Installation Notes and Tips
Verify rear right position, spline count, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification, and inspect the hub, seals, and surrounding suspension components for wear before installing the new axle shaft. For ABS-equipped vehicles, confirm the tone ring orientation and sensor clearance during assembly.
Quality Assurance
TrakMotive states that this axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The FD-8135 also carries a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Ford | Escape | AWD | Rear Right | CV Axle Shaft |
| 2007 | Ford | Escape | 4WD | Rear Right | CV Axle Shaft |
| 2007 | Mercury | Mariner | AWD | Rear Right | CV Axle Shaft |
| 2007 | Mercury | Mariner | 4WD | Rear Right | CV Axle Shaft |
| 2006 | Ford | Escape | AWD | Rear Right | CV Axle Shaft |
| 2006 | Ford | Escape | 4WD | Rear Right | CV Axle Shaft |
| 2006 | Mazda | Tribute | AWD | Rear Right | CV Axle Shaft |
| 2006 | Mercury | Mariner | AWD | Rear Right | CV Axle Shaft |
| 2006 | Mercury | Mariner | 4WD | Rear Right | CV Axle Shaft |
| 2005 | Ford | Escape | AWD | Rear Right | CV Axle Shaft |
| 2005 | Ford | Escape | 4WD | Rear Right | CV Axle Shaft |
| 2005 | Mazda | Tribute | AWD | Rear Right | CV Axle Shaft |
| 2005 | Mercury | Mariner | AWD | Rear Right | CV Axle Shaft |
| 2005 | Mercury | Mariner | 4WD | Rear Right | CV Axle Shaft |
| 2004 | Ford | Escape | 4WD | Rear Right | CV Axle Shaft |
| 2004 | Mazda | Tribute | 4WD | Rear Right | CV Axle Shaft |
| 2003 | Ford | Escape | 4WD | Rear Right | CV Axle Shaft |
| 2003 | Mazda | Tribute | 4WD | Rear Right | CV Axle Shaft |
| 2002 | Ford | Escape | 4WD | Rear Right | CV Axle Shaft |
| 2002 | Mazda | Tribute | 4WD | Rear Right | CV Axle Shaft |
| 2001 | Ford | Escape | 4WD | Rear Right | CV Axle Shaft |
| 2001 | Mazda | Tribute | 4WD | Rear Right | CV Axle Shaft |
