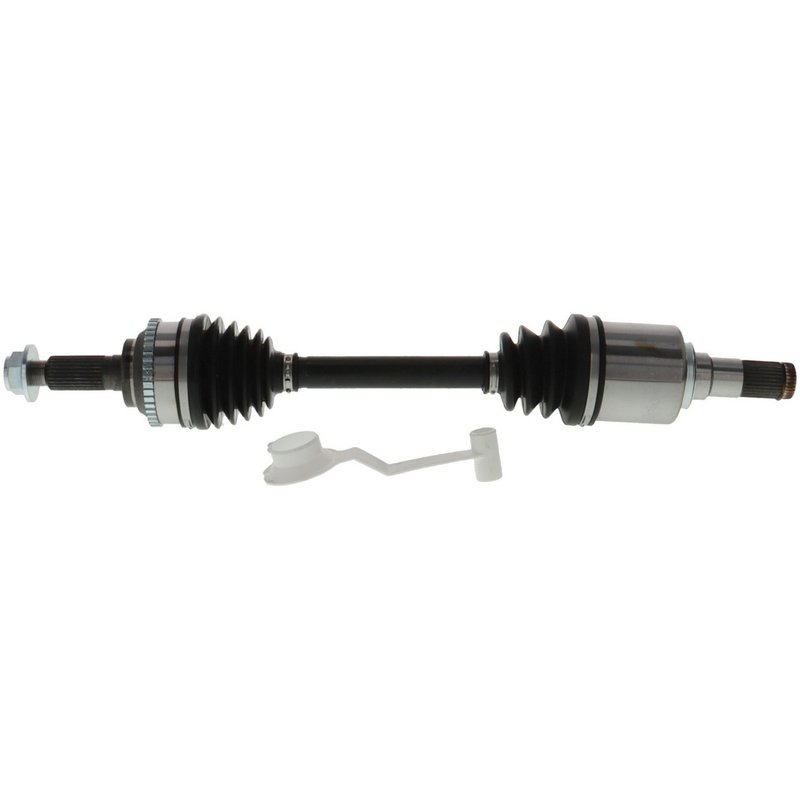

TrakMotive FD-8144 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8144

The TrakMotive CV Axle Shaft FD-8144 is engineered for reliable driveline performance in Ford Escape and Mazda Tribute vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Ford Escape and Mazda Tribute models
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• 44-tooth ABS ring with included tone ring for accurate wheel speed sensing
• Overall compressed length of 24.45 inches (621 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable constant velocity components designed to meet or exceed OEM specifications. This CV Axle Shaft FD-8144 features a conventional outboard joint and a male inboard joint connection style, ensuring compatibility with the driveline systems of Ford Escape and Mazda Tribute models. The inclusion of a toothed ABS ring and tone ring supports proper ABS functionality, critical for vehicle safety systems.

Technical Specifications and Features

This CV axle shaft includes a 44-tooth ABS ring with a toothed design and an ABS tone ring, which are essential for accurate wheel speed monitoring. The axle nut is a self-locking hex type, measuring 1 1/4 inches (31.8 mm) across the flats, with a height of 21.2 mm (5/6 inch) and a length of 34.4 mm (1 1/3 inch). The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is male type with 30 splines, while the outboard joint is conventional with 28 splines, ensuring a secure and precise fit.

Applications and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Ford Escape and Mazda Tribute
• Restoring proper ABS sensor function due to damaged or missing tone rings
• Resolving axle nut thread or locking issues with included self-locking nut
• Addressing torn or degraded CV boots to prevent joint contamination
• Fixing driveline vibrations or clicking noises caused by joint wear

Installation Notes and Tips

Ensure the axle nut torque specifications are followed according to the vehicle manufacturer’s guidelines. The included self-locking hex axle nut simplifies installation and helps maintain secure fastening. Inspect the mating surfaces and splines for damage before installation. Properly seat the neoprene boot to prevent premature wear and contamination. Verify ABS tone ring alignment to maintain accurate sensor readings.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8144 is a new, OEM-quality replacement part designed to meet strict manufacturing standards. It includes all necessary components such as the axle nut and ABS tone ring to ensure complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
