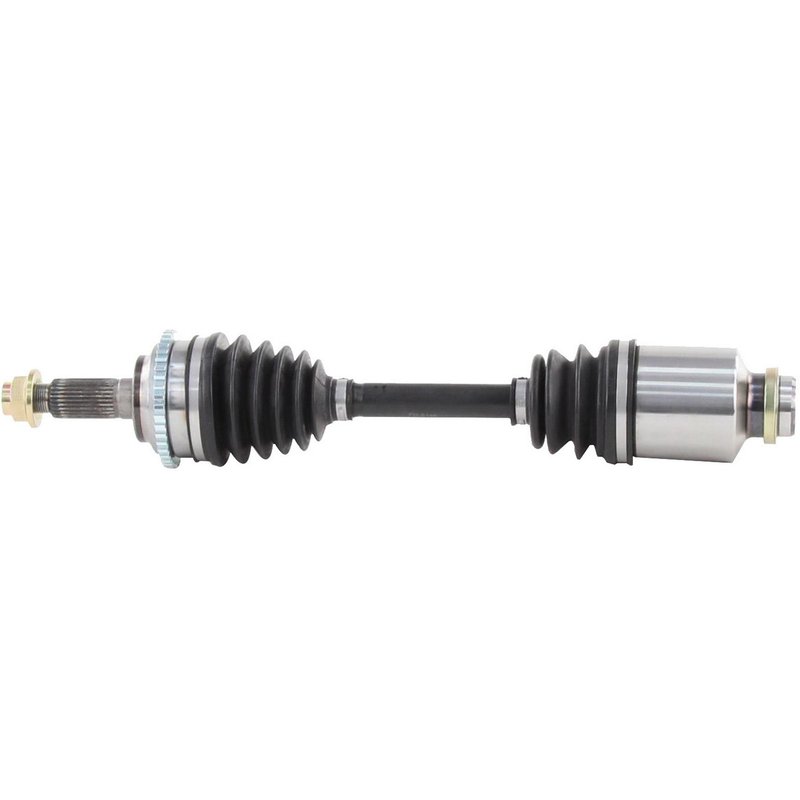

TrakMotive FD-8146 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8146

The TrakMotive CV Axle Shaft FD-8146 is engineered for reliable driveline performance in select Ford, Lincoln, and Mercury vehicles. Designed specifically for models like the Fusion, Milan, and Zephyr, this new axle shaft ensures precise fitment and durability.

• Compatible with Ford Fusion, Lincoln Milan, and Mercury Zephyr
• Includes a neoprene boot for enhanced protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Comes with a hex head axle nut (1 1/4 inch hex size)
• Overall compressed length of 20.61 inches (523.5 mm)
• Stake-type locking axle nut with M22*1.5 thread size
• Female inboard joint and conventional outboard joint design

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts to provide a complete replacement solution. The FD-8146 model exemplifies this approach by combining robust joint types and accurate spline counts for dependable operation in compatible Ford, Lincoln, and Mercury models.

Technical Specifications and Features

The FD-8146 CV Axle Shaft features a 44-tooth toothed ABS ring with an included tone ring, ensuring proper ABS sensor functionality. The axle nut is a hex head type measuring 1 1/4 inches across flats, with a height of 1 inch (24 mm) and length of 1 1/2 inches (37 mm). It uses a stake locking mechanism and an M22*1.5 thread size for secure installation. The shaft has 28-2t inboard splines with a female connection style and 28 outboard splines with a conventional joint type. The neoprene boot material offers resistance to wear and environmental factors, contributing to the longevity of the axle assembly. The overall compressed length is 20.61 inches (523.5 mm), matching OEM specifications for proper fitment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Ford Fusion, Lincoln Milan, and Mercury Zephyr
• Restores proper ABS sensor operation with included toothed ABS ring and tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Addresses grease leakage issues by utilizing durable neoprene boots
• Ensures secure wheel attachment with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive FD-8146 CV Axle Shaft, verify compatibility with your vehicle’s make and model. Use the included hex head axle nut with the specified M22*1.5 thread size and stake locking method to secure the axle properly. Inspect the neoprene boot for any damage during installation to maintain joint protection. It is recommended to torque the axle nut to manufacturer specifications and check ABS sensor alignment to ensure accurate readings.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive products undergo rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, TrakMotive typically offers coverage against manufacturing defects. Consult product documentation or your supplier for exact warranty terms.
