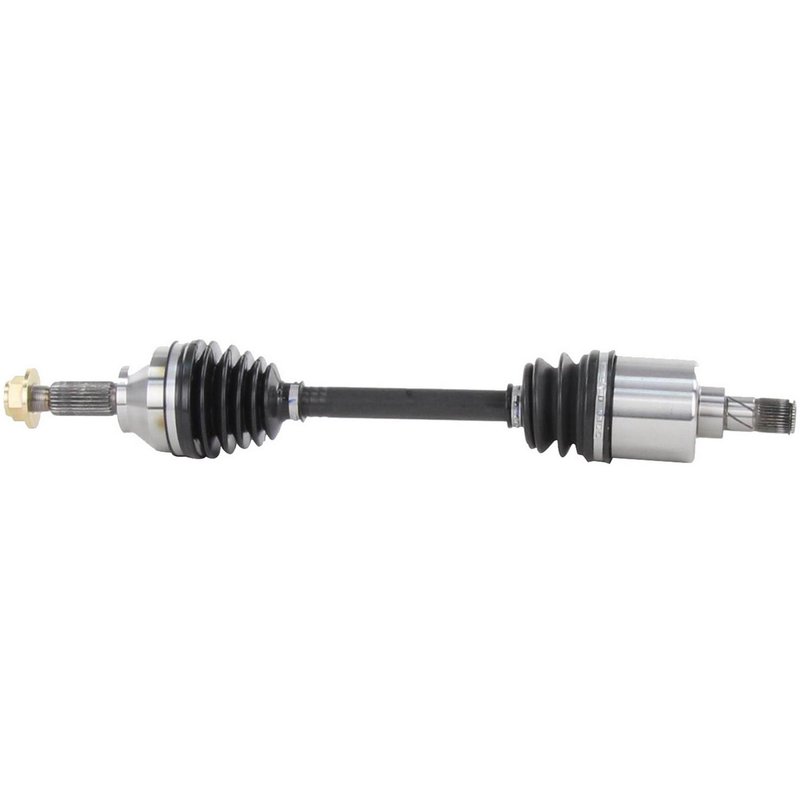

TrakMotive FD-8156 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8156 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/5 |
| Axle Nut Hex Size (mm) | 30.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 2/5 |
| Axle Nut Length (mm) | 35.56 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.7 |
| Overall Compressed Length (mm) | 602 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot material. Helps protect the joint from wear and contamination.
Axle nut included. Conveniently supplied with a self-locking hex nut.
Cross-references Cardone New 66-2170, Cardone Reman 60-2170 and Dayco 71523 for the same application. See all 14.
Ford Focus Front Left CV Axle Shaft
TrakMotive FD-8156 is a new CV axle shaft for the front left position on select 2002-2004 Ford Focus models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with application-specific fitment and OE-style construction details. FD-8156 is a front left axle for Ford Focus service and includes the axle nut specified for this application.
Key Features
- Fits 2002-2004 Ford Focus, front left
- New CV axle shaft for driveline repair
- Neoprene boot material for joint protection
- Male inboard shaft connection style
- Conventional outboard joint and shaft connection style
- Includes axle nut with M22 x 1.5 thread size
- No ABS tone ring included
- 34 inboard splines and 25 outboard splines
- Overall compressed length: 23.7 in. (602 mm)
Product Details
TrakMotive FD-8156 is engineered as a direct replacement CV axle shaft for the front left side of the 2002-2004 Ford Focus. The axle uses a male inboard joint, a conventional outboard joint, and a neoprene boot to support consistent articulation in the driveline. This part number, FD-8156, is also referenced in cross-application listings for the same vehicle fitment, including Cardone New 66-2170.
Use FD-8156 when servicing a worn or damaged front axle on a Ford Focus and you need a replacement built to the listed spline count, compressed length, and axle nut specifications. The part number FD-8156 is the correct reference for this front left Ford Focus application.
Common Repair Uses
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn boot or grease loss at the axle assembly
- Excessive play in the front left driveline shaft
- Replacement after axle damage or joint failure
Installation Notes
Verify the vehicle is a 2002-2004 Ford Focus with front left axle service before installation. Confirm spline counts, compressed length, and axle nut thread size against the removed part. The axle nut is included; use the specified self-locking nut and torque fasteners to the vehicle manufacturer’s service procedure. This axle does not include an ABS tone ring.
Quality Assurance
TrakMotive lists FD-8156 as a new part and identifies the product line under ISO 9001:1007 and TS 16949:2009 certified manufacturing. The manufacturer also backs this CV axle shaft with a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Ford | Focus | SVT | Front Left | CV Axle Shaft |
| 2003 | Ford | Focus | SVT | Front Left | CV Axle Shaft |
| 2002 | Ford | Focus | SVT | Front Left | CV Axle Shaft |
