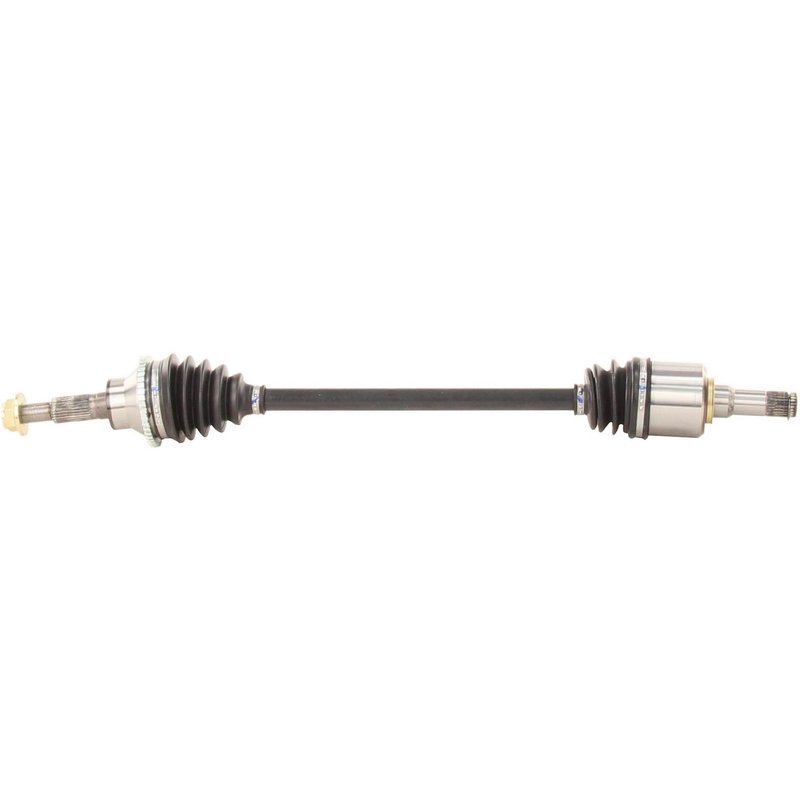

TrakMotive FD-8158 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft FD-8158

The TrakMotive CV Axle Shaft FD-8158 is designed for reliable driveline performance in Ford Edge and Lincoln MKX vehicles. This new CV axle shaft ensures proper torque transfer and smooth operation, featuring a robust neoprene boot and a self-locking axle nut for secure installation.

• Compatible with Ford Edge and Lincoln MKX models
• Includes a 44-tooth ABS ring with a toothed tone ring for accurate wheel speed sensing
• Equipped with a self-locking hex axle nut (M22*1.5 thread size) for secure fitment
• Neoprene boot material for enhanced durability and protection against contaminants
• Overall compressed length of 32.83 inches (834 mm) for precise fit

Detailed Features and Specifications

This TrakMotive CV Axle Shaft FD-8158 belongs to the CV Axle Shaft product line, which focuses on delivering dependable constant velocity joint components engineered for specific vehicle applications. The axle shaft features a male inboard joint type with 25 splines and a conventional outboard joint with 28 splines, ensuring compatibility with the driveline system of Ford Edge and Lincoln MKX models. The included ABS tone ring has 44 teeth and is toothed, providing accurate input for the vehicle's anti-lock braking system.

The axle nut included is a self-locking type with a hex head measuring 1 1/4 inches (31.8 mm) across flats and a height of 21.2 mm (5/6 inch). Its length is 34.4 mm (1 1/3 inch), designed to maintain secure fastening under driving conditions. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the CV joint.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Ford Edge and Lincoln MKX vehicles
• Addresses issues such as clicking noises during turns caused by joint wear
• Eliminates vibration or shuddering from axle imbalance or joint failure
• Prevents grease leakage and contamination with durable neoprene boot
• Restores proper ABS sensor function with included toothed ABS tone ring

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft FD-8158, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Verify the ABS tone ring is properly seated to avoid sensor errors. Inspect the mating surfaces for cleanliness and damage before assembly. The male inboard joint and conventional outboard joint connection styles require correct alignment to prevent premature wear.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and performance. Warranty coverage details should be confirmed with the product documentation or supplier.
