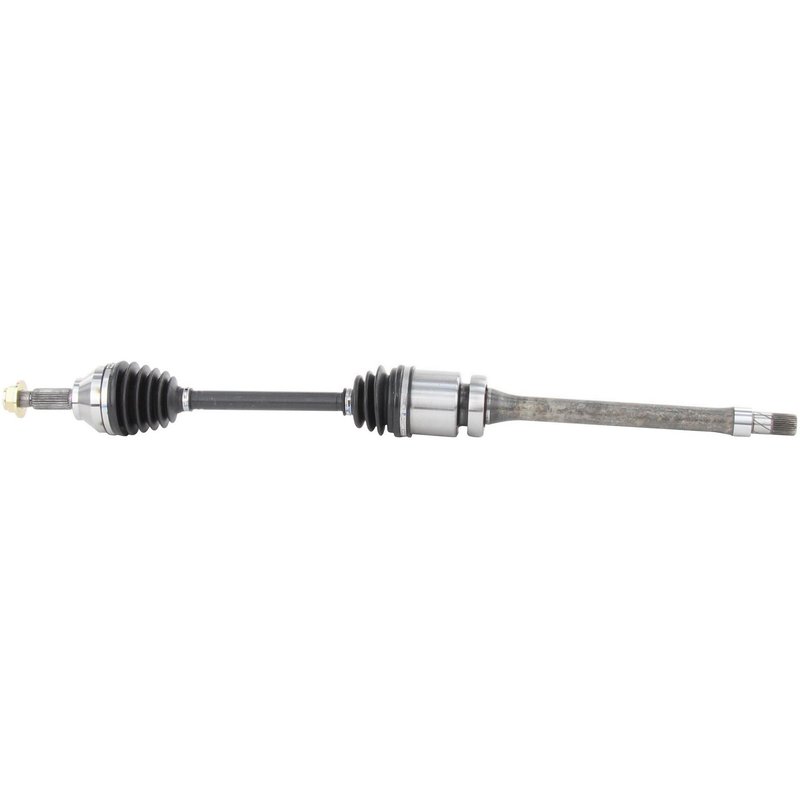

TrakMotive FD-8159 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8159 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/5 |
| Axle Nut Hex Size (mm) | 30.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 2/5 |
| Axle Nut Length (mm) | 35.56 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.36 |
| Overall Compressed Length (mm) | 949 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
New CV axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.
Axle nut included. Comes with a self-locking hex nut for a complete install.
ISO certified manufacturing. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-2171, Cardone Reman 60-2171 and Dayco 71224 for the same application. See all 10.
TrakMotive FD-8159 CV Axle Shaft
TrakMotive FD-8159 is a new CV axle shaft for the front right position on select Ford Focus models. It is built for 2002-2004 Ford Focus applications and includes the axle nut for a direct replacement on the specified fitment.
Key Features
- Fits 2002-2004 Ford Focus, front right
- New CV axle shaft for driveline repair and replacement
- Male inboard shaft connection with 34 inboard splines
- Conventional outboard joint with 25 outboard splines
- Neoprene boot material for joint protection
- Overall compressed length: 37.36 in. (949 mm)
- Axle nut included with M22 x 1.5 thread, 30.8 mm hex size, and self-locking design
- No ABS tone ring included
Detailed Description
TrakMotive FD-8159 is a CV axle shaft for the front right side of 2002, 2003, and 2004 Ford Focus models. This axle shaft uses a male inboard connection and a conventional outboard joint, with dimensions and spline counts matched to the listed application for proper driveline service. The included axle nut and neoprene boot support a complete replacement on the confirmed Ford Focus fitment. This part cross-references Cardone New 66-2171 for the same application.
What It Helps Fix
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or unbalanced axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline noise from excessive axle wear
- Front right axle failure on the listed Ford Focus models
Installation Notes and Tips
Verify front right fitment before installation and confirm spline count, axle length, and axle nut thread size against the original part. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline issues. Because this axle is listed without an ABS tone ring, confirm the vehicle’s ABS configuration before ordering.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. FD-8159 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Ford | Focus | SVT | Front Right | CV Axle Shaft |
| 2003 | Ford | Focus | SVT | Front Right | CV Axle Shaft |
| 2002 | Ford | Focus | SVT | Front Right | CV Axle Shaft |
