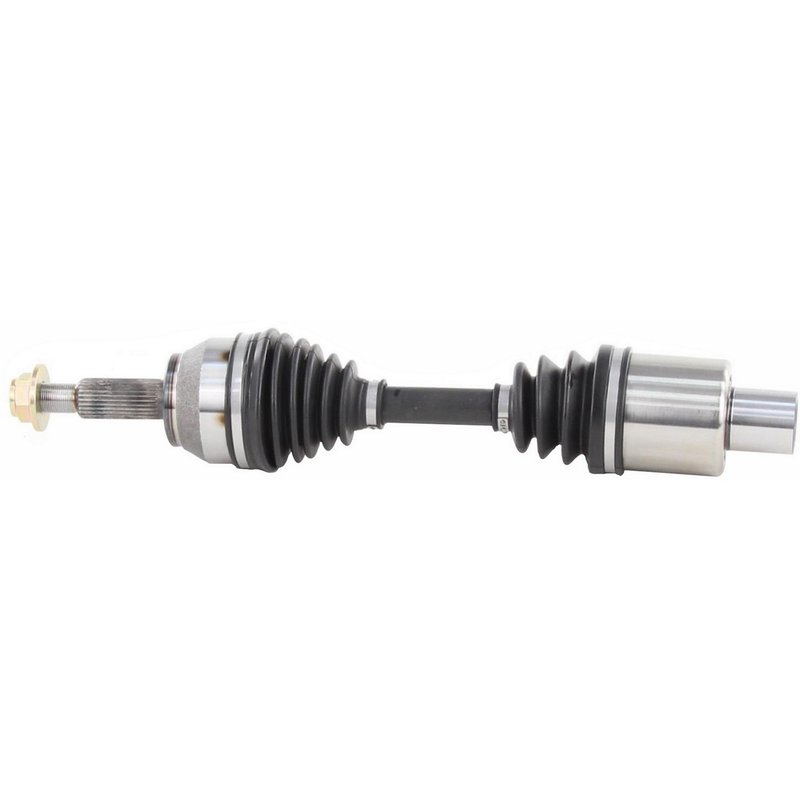

TrakMotive FD-8167 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8167 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21.2 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-1T |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.24 |
| Overall Compressed Length (mm) | 514 |
| Product line | CV Axle Shaft |
| Fits | Ford and Mazda · 24 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a self-locking hex nut.
Cross-references Cardone New 66-2169, Dayco 71278 and TrakMotive FD-8167 for the same application. See all 12.
Front Right CV Axle Shaft for Ranger and Explorer
TrakMotive FD-8167 is a new front right CV axle shaft built for select Ford and Mazda applications. It is a direct-fit driveline replacement for vehicles such as the Ford Ranger, Ford Explorer, Ford Explorer Sport Trac, Ford Explorer Sport, and Mazda B4000.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: FD-8167
- Front right position
- New axle shaft assembly
- Overall compressed length: 20.24 in. (514 mm)
- Neoprene boot material
- Female inboard joint and conventional outboard joint
- 27 outboard splines and 27-1T inboard splines
- Axle nut included with self-lock design
- Axle nut thread size: M22 x 1.5
- No ABS tone ring included
Product Details
TrakMotive FD-8167 is a CV axle shaft for front right driveline service on 2002-2011 Ford and Mazda platforms. It is engineered with a female inboard connection, a conventional outboard connection, and a neoprene boot for the specified application. The axle measures 20.24 inches compressed length and includes the axle nut with a hex head, self-lock design, and M22 x 1.5 thread size. This part cross-references Cardone New 66-2169 for the same application.
Compatible With 2003-2011 Ford Ranger, front right; 2004-2010 Mazda B4000, front right; 2003-2005 Ford Explorer Sport Trac, front right; 2003 Ford Explorer, front right; 2003 Ford Explorer Sport, front right; and 2002 Ford Explorer, Explorer Sport, and Explorer Sport Trac, front right from 3/4/02.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder under acceleration
- Torn boot or grease loss at the axle assembly
- Excessive play in the front right driveline
- Noise from a damaged or worn axle shaft
Installation Notes
Verify spline count, axle length, and front right fitment before installation. Confirm whether the vehicle uses ABS or non-ABS configuration, since this axle does not include an ABS tone ring. Always inspect the axle nut, hub, and surrounding suspension components during replacement.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part and identifies the product line with ISO 9001:1007 and TS 16949:2009 certified company standards. Limited lifetime warranty information is provided by the manufacturer.
| Year | Make | Model | Submodel | Body Type | # Doors | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2011 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2010 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2010 | Mazda | B4000 | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2009 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2009 | Mazda | B4000 | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2008 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2008 | Mazda | B4000 | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2007 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2007 | Mazda | B4000 | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2006 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2006 | Mazda | B4000 | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2005 | Ford | Explorer Sport Trac | — | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2005 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2005 | Mazda | B4000 | — | — | — | RWD | — | — | Front Right | CV Axle Shaft |
| 2004 | Ford | Explorer Sport Trac | — | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2004 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2004 | Mazda | B4000 | — | — | — | RWD | — | — | Front Right | CV Axle Shaft |
| 2003 | Ford | Explorer | XLS | Sport Utility | — | RWD | 4.0L | V6 | Front Right | CV Axle Shaft |
| 2003 | Ford | Explorer Sport | — | — | 2 Door | — | — | — | Front Right | CV Axle Shaft |
| 2003 | Ford | Explorer Sport Trac | — | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2003 | Ford | Ranger | — | — | — | 4WD | — | — | Front Right | CV Axle Shaft |
| 2002 | Ford | Explorer | — | Sport Utility | — | — | — | — | Front Right | From 3/4/02; CV Axle Shaft |
| 2002 | Ford | Explorer Sport | — | — | 2 Door | — | — | — | Front Right | From 3/4/02; CV Axle Shaft |
| 2002 | Ford | Explorer Sport Trac | — | — | — | — | — | — | Front Right | From 3/4/02; CV Axle Shaft |
