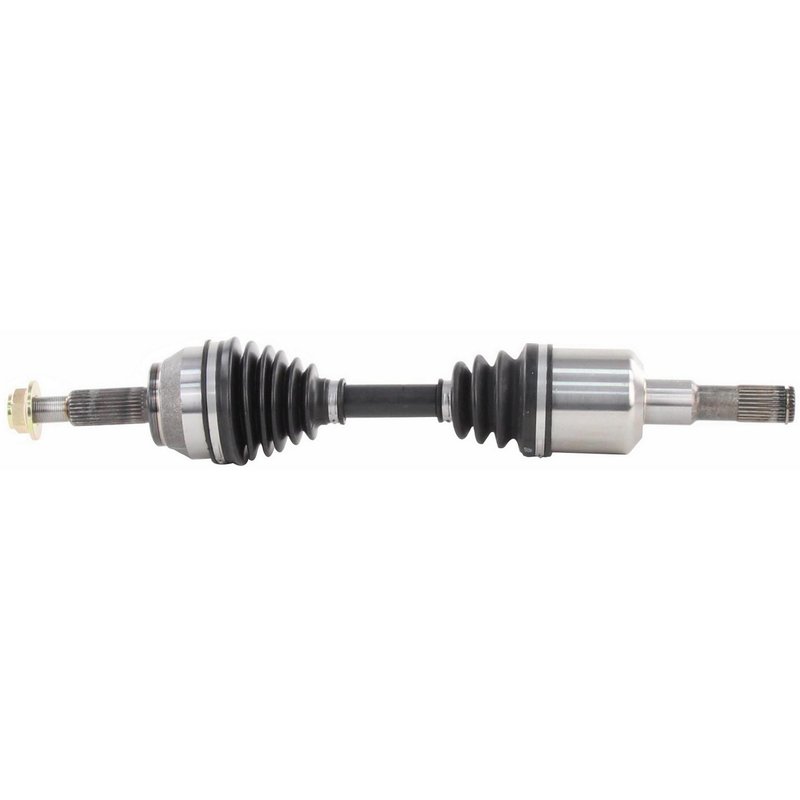

TrakMotive FD-8168 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8168 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21.2 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.99 |
| Overall Compressed Length (mm) | 584 |
| Product line | CV Axle Shaft |
| Fits | Ford and Mazda · 23 vehicles |
New axle shaft. Replacement component with a neoprene boot for dependable driveline protection.
Axle nut included. Self-locking hardware is ready for installation.
ISO certified. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-2168, Cardone Reman 60-2168 and Dayco 71599 for the same application. See all 13.
CV Axle Shaft for Ford Ranger and Mazda B4000
TrakMotive FD-8168 is a new front left CV axle shaft built for specific Ford and Mazda applications. It is a direct-fit driveline replacement for 2002-2011 Ford Explorer, Explorer Sport, Explorer Sport Trac, and Ranger, plus 2004-2010 Mazda B4000 front left applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: FD-8168
- New axle shaft construction
- Front left position
- 27 inboard splines and 27 outboard splines
- Male inboard shaft connection with conventional outboard joint type
- Neoprene boot material
- Axle nut included with self-lock design, M22 x 1.5 thread
- Overall compressed length: 22.99 in. (584 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is engineered for front left driveline service on Ford Ranger, Mazda B4000, and select Ford Explorer variants. The FD-8168 uses a male inboard connection, a conventional outboard joint, and matching 27-spline counts at both ends for the listed applications. The neoprene boot helps protect the joint assembly, while the included self-lock axle nut supports proper reassembly on the specified vehicles. TrakMotive identifies this axle as a new part and notes that ABS axles fit non-ABS applications unless otherwise noted.
This part cross-references Cardone New 66-2168 and Dayco 71599 for the same application.
What This Part Helps Address
- Clicking or popping during turns from a worn front left CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage caused by a torn or deteriorated boot
- Noise under acceleration from spline or joint wear
- Front driveline issues on Ford Ranger and Mazda B4000 applications
Installation Notes and Tips
Verify the vehicle’s year, model, and front left application before installation. Confirm axle nut thread size, spline count, and overall length against the removed part. Because this axle does not include an ABS tone ring, check the vehicle’s ABS configuration before ordering. For 2002 Ford Explorer, Explorer Sport, and Explorer Sport Trac applications, confirm the build date note of from 3/4/02. Always inspect seals, hub components, and related suspension parts during axle replacement.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes for driveline components.
| Year | Make | Model | Body Type | # Doors | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2010 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2010 | Mazda | B4000 | — | — | 4WD | Front Left | CV Axle Shaft |
| 2009 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2009 | Mazda | B4000 | — | — | 4WD | Front Left | CV Axle Shaft |
| 2008 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2008 | Mazda | B4000 | — | — | 4WD | Front Left | CV Axle Shaft |
| 2007 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2007 | Mazda | B4000 | — | — | 4WD | Front Left | CV Axle Shaft |
| 2006 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2006 | Mazda | B4000 | — | — | 4WD | Front Left | CV Axle Shaft |
| 2005 | Ford | Explorer Sport Trac | — | — | — | Front Left | CV Axle Shaft |
| 2005 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2005 | Mazda | B4000 | — | — | RWD | Front Left | CV Axle Shaft |
| 2004 | Ford | Explorer Sport Trac | — | — | — | Front Left | CV Axle Shaft |
| 2004 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2004 | Mazda | B4000 | — | — | RWD | Front Left | CV Axle Shaft |
| 2003 | Ford | Explorer Sport | — | 2 Door | — | Front Left | CV Axle Shaft |
| 2003 | Ford | Explorer Sport Trac | — | — | — | Front Left | CV Axle Shaft |
| 2003 | Ford | Ranger | — | — | 4WD | Front Left | CV Axle Shaft |
| 2002 | Ford | Explorer | Sport Utility | — | — | Front Left | From 3/4/02; CV Axle Shaft |
| 2002 | Ford | Explorer Sport | — | 2 Door | — | Front Left | From 3/4/02; CV Axle Shaft |
| 2002 | Ford | Explorer Sport Trac | — | — | — | Front Left | From 3/4/02; CV Axle Shaft |
