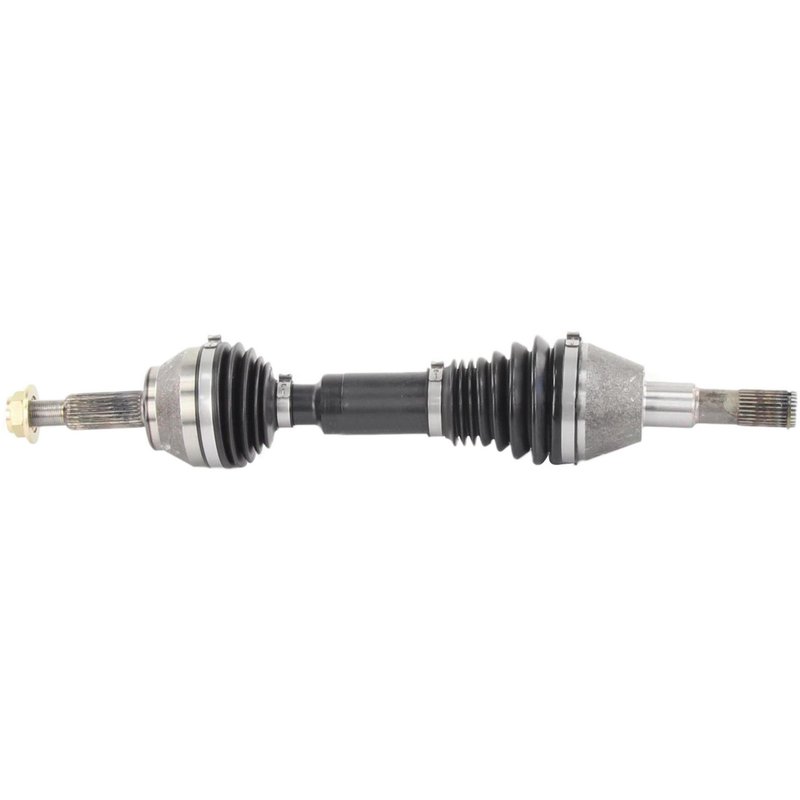

TrakMotive FD-8168XTT CV Axle Shaft - Front Left

Overview of TrakMotive Extended Travel CV Axle Shaft FD-8168XTT

The TrakMotive Extended Travel CV Axle Shaft FD-8168XTT is engineered for reliable driveline performance in select Ford and Mazda vehicles. Designed specifically for models like the Ford Explorer, Ranger, and Mazda B4000, this CV axle shaft supports extended suspension travel while maintaining precise fitment and durability.

• Compatible with Ford Explorer, Explorer Sport, Explorer Sport Trac, Ranger, and Mazda B4000
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced joint protection
• 27 splines on both inboard and outboard shafts for secure connection
• Overall compressed length of 22.56 inches (573 mm)
• New, not remanufactured, ensuring original equipment quality

Detailed Features and Specifications

This CV axle shaft features a male inboard joint type with a spline connection style, providing a secure and precise fit. The outboard joint is conventional with a matching spline shaft connection, both having 27 splines to ensure compatibility and strength. The included axle nut is a self-locking type with a hex head measuring 1.25 inches (31.8 mm) across flats and a height of 0.83 inches (21.2 mm). The axle nut thread size is M22x1.5, and the nut length is 1.45 inches (36.72 mm), designed to meet factory specifications.

The neoprene boot material offers resistance to environmental factors such as dirt, moisture, and temperature variations, helping to extend the life of the CV joint. The overall compressed length of 22.56 inches (573 mm) ensures proper fitment in vehicles requiring extended travel axles.

About the Extended Travel CV Axle Shaft Product Line

The TrakMotive Extended Travel CV Axle Shaft line is designed to accommodate vehicles with modified or extended suspension travel requirements. This product line provides enhanced axle length and durability to maintain driveline integrity under increased suspension articulation. The FD-8168XTT model is part of this line, offering a balance of OEM fitment and extended travel capability for Ford and Mazda trucks and SUVs.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Ford Explorer and Ranger models
• Supports vehicles with extended suspension travel without compromising joint integrity
• Addresses issues related to axle shaft length mismatches in lifted or modified vehicles
• Prevents premature joint failure caused by torn or degraded boots
• Restores driveline smoothness and reduces vibrations from faulty CV components

Installation Notes and Tips

Ensure compatibility by verifying vehicle make, model, and year before installation. The included self-locking axle nut requires a 1.25-inch (31.8 mm) hex socket for proper torque application. Inspect the axle splines and mating surfaces for cleanliness and damage prior to installation. Use appropriate torque specifications as outlined by the vehicle manufacturer to secure the axle nut. The neoprene boot should be checked for proper seating to prevent contamination.

Quality Assurance and Warranty

This TrakMotive CV axle shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. The product undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, TrakMotive products typically come with limited warranties covering defects in materials and workmanship.
