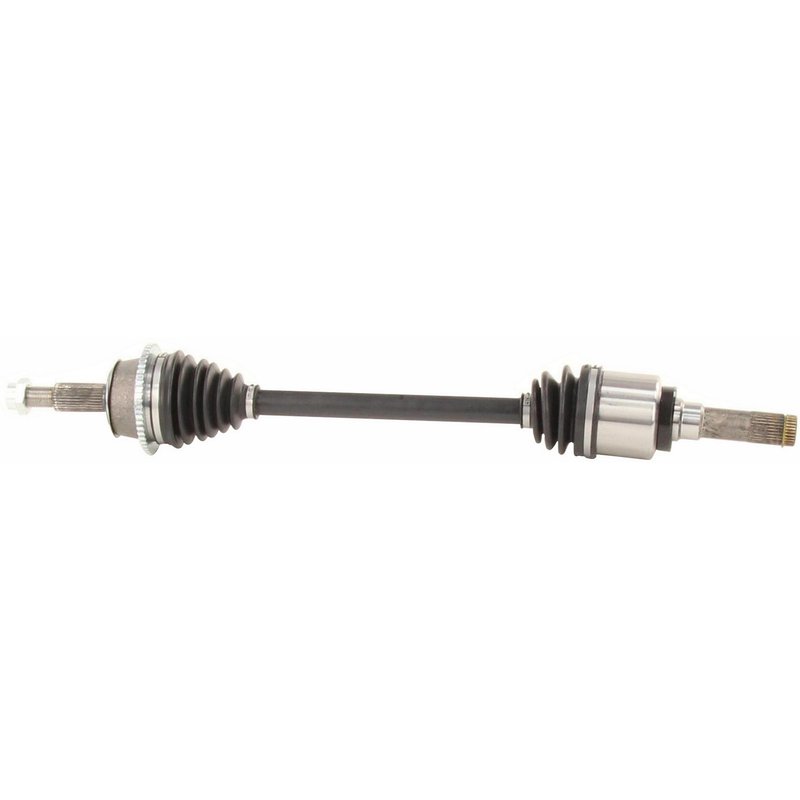

TrakMotive FD-8169 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-8169 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 54 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.8 |
| Overall Compressed Length (mm) | 833 |
| Product line | CV Axle Shaft |
| Fits | Ford, Lincoln, and Mercury · 9 vehicles |
New CV axle shaft. Direct replacement for a straightforward install.
Neoprene boot material. Helps resist wear and keep the joint protected.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references Cardone Reman 60-2179, Cardone Reman 60-2194 and Dayco 71058 for the same application. See all 20.
Rear Right CV Axle Shaft for Ford, Lincoln, and Mercury
TrakMotive FD-8169 is a new rear right CV axle shaft built for specific Ford Explorer, Lincoln Aviator, and Mercury Mountaineer applications. It is engineered with the correct spline counts, ABS tone ring details, and axle nut specifications for direct replacement in the listed vehicles.
Key Features
- New CV axle shaft for rear right position
- Fits 2002 Ford Explorer, rear right, from 2/19/02; differential mounted ABS sensor
- Fits 2002 Mercury Mountaineer, rear right, from 2/19/02
- Fits 2003 Ford Explorer, rear right; differential mounted ABS sensor
- Fits 2003 Lincoln Aviator, rear right
- Fits 2003 Mercury Mountaineer, rear right; w/o Roll Stability Control
- Fits 2004 Ford Explorer, rear right; differential mounted ABS sensor
- Fits 2004 Lincoln Aviator, rear right; w/o Roll Stability Control
- Fits 2004 Mercury Mountaineer, rear right; w/o Roll Stability Control
- 31 inboard splines and 29 outboard splines
- 54-tooth toothed ABS ring with tone ring included
- Neoprene boot material
- Includes axle nut with M24 x 2 thread, 36 mm hex size, and self-locking design
- Overall compressed length: 32.8 in. (833 mm)
Product Details
TrakMotive CV Axle Shaft FD-8169 is part of the CV Axle Shaft line and is built for rear right driveline service where the original axle has worn joints, damaged splines, or ABS-related concerns. The axle uses a male inboard connection, spline-style outboard shaft connection, and a conventional outboard joint type to match the listed fitments. TrakMotive FD-8169 also reflects the brand’s manufacturing controls as an ISO 9001:1007 and TS 16949:2009 certified company.
This part cross-references Cardone Reman 60-2179 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint during acceleration or turning
- Vibration or shudder from a damaged axle shaft
- ABS warning concerns related to a failed tone ring or sensor interface
- Grease leakage from a deteriorated axle boot
- Noise from spline wear or internal joint damage
Installation Notes and Tips
Verify rear right fitment against the vehicle build date and equipment notes before installation. This axle is listed for 2002 Ford Explorer from 2/19/02, 2003-2004 Ford Explorer with differential mounted ABS sensor, 2003-2004 Lincoln Aviator without Roll Stability Control, and 2002-2004 Mercury Mountaineer with the noted configuration differences. Confirm axle nut thread size, hex size, and spline counts against the original part before assembly.
Quality Assurance
TrakMotive lists this CV axle shaft with a limited lifetime warranty. The brand also states that ABS axles fit non-ABS applications unless otherwise noted, and its manufacturing is backed by ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | # Doors | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Ford | Explorer | 4 Door | — | Rear Right | Differential Mounted ABS Sensor; CV Axle Shaft |
| 2004 | Lincoln | Aviator | — | — | Rear Right | w/o Roll Stability Control; CV Axle Shaft |
| 2004 | Mercury | Mountaineer | — | — | Rear Right | w/o Roll Stability Control; CV Axle Shaft |
| 2003 | Ford | Explorer | 4 Door | — | Rear Right | Differential Mounted ABS Sensor; CV Axle Shaft |
| 2003 | Lincoln | Aviator | — | RWD | Rear Right | CV Axle Shaft |
| 2003 | Lincoln | Aviator | — | AWD | Rear Right | w/o Roll Stability Control; CV Axle Shaft |
| 2003 | Mercury | Mountaineer | — | — | Rear Right | w/o Roll Stability Control; CV Axle Shaft |
| 2002 | Ford | Explorer | 4 Door | — | Rear Right | From 2/19/02; Differential Mounted ABS Sensor; CV Axle Shaft |
| 2002 | Mercury | Mountaineer | — | — | Rear Right | From 2/19/02; CV Axle Shaft |
