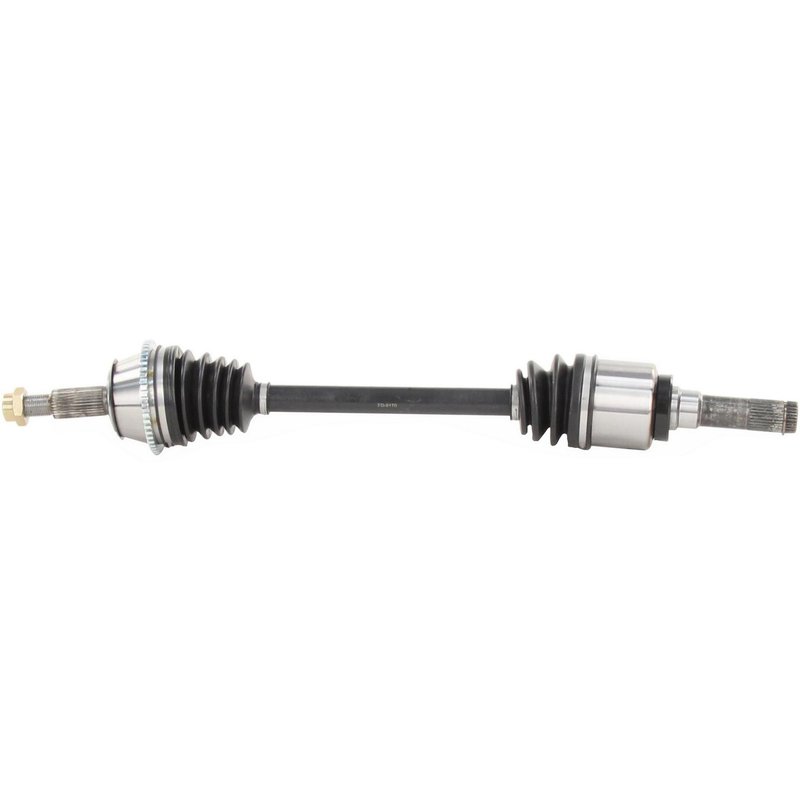

TrakMotive FD-8170 CV Axle Shaft - Rear Left
| Brand | TrakMotive FD-8170 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 54 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.61 |
| Overall Compressed Length (mm) | 803 |
| Product line | CV Axle Shaft |
| Fits | Ford, Lincoln, and Mercury · 9 vehicles |
New axle shaft. Built with a neoprene boot and conventional outboard joint.
ABS tone ring included. Toothed ring with 54 teeth for ABS applications.
Hardware included. Comes with a self-locking axle nut for easier installation.
Cross-references Cardone New 66-2193, Cardone Reman 60-2178 and OSC 1428 for the same application. See all 20.
CV Axle Shaft for Rear Left Applications
TrakMotive FD-8170 is a new CV axle shaft for rear left applications on select Ford, Lincoln, and Mercury vehicles. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct replacement service on the listed applications.
Key Features
- New CV axle shaft for driveline and axle service
- Rear left position for listed Ford Explorer, Lincoln Aviator, and Mercury Mountaineer applications
- 31 inboard splines and 29 outboard splines
- Overall compressed length: 31.61 in. (803 mm)
- Neoprene boot material for axle joint protection
- ABS tone ring included with 54-tooth toothed ring
- Axle nut included with M24 x 2 thread, 36 mm hex size, and self-locking design
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Detailed Description
TrakMotive FD-8170 is a CV axle shaft engineered for rear left fitment on 2002-2004 Ford Explorer, 2002-2004 Mercury Mountaineer, and 2002-2004 Lincoln Aviator applications listed below. This axle uses a male inboard shaft connection, a spline-style outboard connection, and a conventional outboard joint design to match the specified driveline configuration. The included ABS tone ring and toothed 54-tooth ring support vehicles equipped with a differential mounted ABS sensor, while the axle nut is supplied with the correct thread and hex dimensions for the application. This part cross-references Cardone New 66-2193 and Cardone Reman 60-2178 for the same application.
Vehicle Fitment
- Fits 2003-2004 Ford Explorer, rear left, differential mounted ABS sensor; CV axle shaft
- Fits 2003-2004 Lincoln Aviator, rear left, w/o Roll Stability Control; CV axle shaft
- Fits 2003-2004 Mercury Mountaineer, rear left, w/o Roll Stability Control; CV axle shaft
- Fits 2003 Lincoln Aviator, rear left, CV axle shaft
- Fits 2002 Ford Explorer, rear left, from 2/19/02; differential mounted ABS sensor; CV axle shaft
- Fits 2002 Mercury Mountaineer, rear left, from 2/19/02; CV axle shaft
Common Replacement Uses
- Clunking or clicking from the rear driveline during acceleration or turning
- Vibration caused by a worn or damaged axle shaft
- ABS warning concerns related to a damaged tone ring or sensor interface
- Boot failure that can lead to grease loss and joint wear
- Excessive play in the rear left CV axle assembly
Installation Notes and Tips
Verify rear left fitment by year, model, and vehicle configuration before installation. Confirm spline counts, axle nut thread size, and ABS sensor style against the original part. Inspect the hub, seals, and surrounding driveline components during replacement to help ensure proper operation after installation.
Quality Assurance
TrakMotive FD-8170 is a new replacement axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer lists a limited lifetime warranty.
| Year | Make | Model | # Doors | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Ford | Explorer | 4 Door | — | Rear Left | Differential Mounted ABS Sensor; CV Axle Shaft |
| 2004 | Lincoln | Aviator | — | — | Rear Left | w/o Roll Stability Control; CV Axle Shaft |
| 2004 | Mercury | Mountaineer | — | — | Rear Left | w/o Roll Stability Control; CV Axle Shaft |
| 2003 | Ford | Explorer | 4 Door | — | Rear Left | Differential Mounted ABS Sensor; CV Axle Shaft |
| 2003 | Lincoln | Aviator | — | RWD | Rear Left | CV Axle Shaft |
| 2003 | Lincoln | Aviator | — | AWD | Rear Left | w/o Roll Stability Control; CV Axle Shaft |
| 2003 | Mercury | Mountaineer | — | — | Rear Left | w/o Roll Stability Control; CV Axle Shaft |
| 2002 | Ford | Explorer | 4 Door | — | Rear Left | From 2/19/02; Differential Mounted ABS Sensor; CV Axle Shaft |
| 2002 | Mercury | Mountaineer | — | — | Rear Left | From 2/19/02; CV Axle Shaft |
