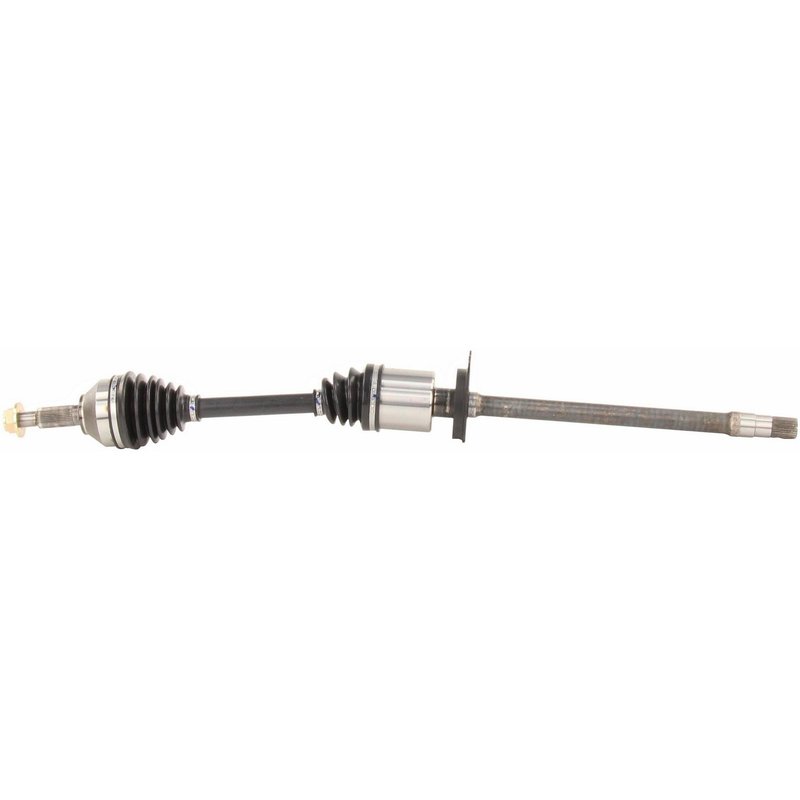

TrakMotive FD-8171 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive FD-8171 CV Axle Shaft - Front Right

Brand TrakMotive FD-8171
Position Front Right
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 5/6
Axle Nut Height (mm) 21.2
Axle Nut Hex Size (in) 1 1/4
Axle Nut Hex Size (mm) 31.8
Axle Nut Included Yes
Axle Nut Length (in) 1 1/3
Axle Nut Length (mm) 34.4
Axle Nut Locking Type Self-Lock
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Male
New Or Remanufactured New
Number Of Inboard Splines 28
Number Of Outboard Splines 38
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 40.28
Overall Compressed Length (mm) 1023
Product line CV Axle Shaft
Fits Ford and Mercury · 6 vehicles

New CV axle shaft. A direct replacement for restoring driveline performance.

Neoprene boot material. Helps resist wear while keeping the joint protected.

Axle nut included. Saves time by providing the matching hardware.

Cross-references Cardone New 66-2163, Cardone Reman 60-2163 and TrakMotive FD-8171 for the same application. See all 12.

$133.51Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $133.51
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

CV Axle Shaft for Ford Five Hundred and Mercury Montego

TrakMotive FD-8171 is a new CV axle shaft for the front right position on select 2005-2007 Ford Five Hundred and 2005-2007 Mercury Montego applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service.

Key Features

  • Part number FD-8171 CV axle shaft for front right fitment
  • Fits 2005-2007 Ford Five Hundred, front right
  • Fits 2005-2007 Mercury Montego, front right
  • New axle assembly with 28 inboard splines and 38 outboard splines
  • Neoprene boot material for driveline protection
  • Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and self-lock design
  • No ABS tone ring included
  • Overall compressed length: 40.28 in. (1023 mm)

Product Details

TrakMotive CV Axle Shaft FD-8171 is engineered for front right driveline replacement on the Ford Five Hundred and Mercury Montego. The axle uses a male inboard shaft connection, a spline-style outboard connection, and a conventional outboard joint layout. It also includes the axle nut specified for the application, with a hex head, self-lock design, and M22 x 1.5 thread size. TrakMotive identifies this axle line as a new replacement component and notes ISO 9001:1007 and TS 16949:2009 certification for the company.

This part cross-references Cardone New 66-2163 and Cardone Reman 60-2163 for the same application.

Common Replacement Reasons

  • Clicking or popping during turns from worn CV joints
  • Vibration or shudder during acceleration
  • Torn or deteriorated axle boot with grease loss
  • Excessive driveline play or noise from a damaged axle shaft
  • Front right axle failure on 2005-2007 Ford Five Hundred or Mercury Montego

Installation Notes

Verify front right application, spline count, and axle length before installation. Confirm whether the vehicle is equipped for a non-ABS axle application, since ABS axles fit non-ABS applications unless otherwise noted. Inspect the hub, seals, and related suspension components during replacement to help ensure proper axle engagement and smooth operation.

Quality Assurance

TrakMotive FD-8171 is a new CV axle shaft backed by a limited lifetime warranty. The brand also states company certification to ISO 9001:1007 and TS 16949:2009 standards.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeTransmissionPositionNotes
2007FordFive HundredFWDAutomaticFront RightCV Axle Shaft
2007MercuryMontegoFWDAutomaticFront RightCV Axle Shaft
2006FordFive HundredFWDAutomaticFront RightCV Axle Shaft
2006MercuryMontegoFWDAutomaticFront RightCV Axle Shaft
2005FordFive HundredFWDAutomaticFront RightCV Axle Shaft
2005MercuryMontegoFWDAutomaticFront RightCV Axle Shaft
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone New — 66-2163Cardone Reman — 60-2163TrakMotive — FD-81715F9Z3B436AA6F9Z3B436A80-270070772169171AX-9716FD-8-8659FD10502NCV10629
