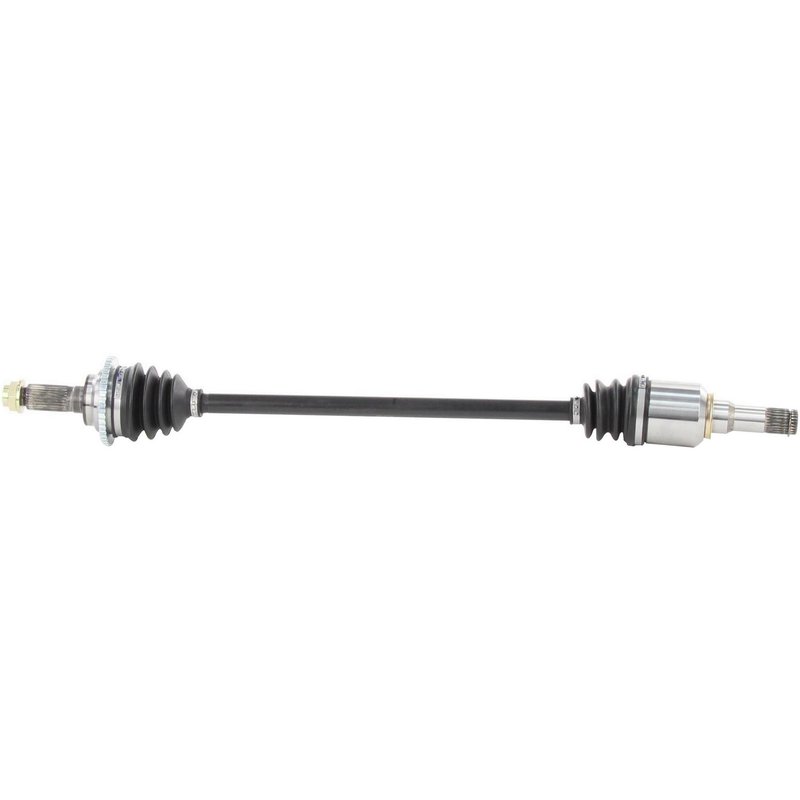

TrakMotive FD-8174 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft FD-8174

The TrakMotive CV Axle Shaft FD-8174 is engineered for reliable driveline performance in select Ford, Lincoln, and Mercury vehicles. Designed specifically for models like the Fusion, Milan, MKX, and MKZ, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Ford Fusion, Lincoln MKZ, Mercury Milan, and Lincoln MKX
• Includes a neoprene boot for enhanced protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Axle nut features a hex head with stake locking type
• Overall compressed length of 32.64 inches (829 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance. The FD-8174 model exemplifies this approach with its male inboard joint and conventional outboard joint, making it suitable for the specified Ford, Lincoln, and Mercury vehicles.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors. The inboard joint is male type with 25 splines, while the outboard joint is conventional with 28 splines, providing secure shaft connection styles. The included axle nut has a hex head measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). The axle nut uses an M22x1.5 thread size and a stake locking mechanism to maintain secure fastening. Additionally, the ABS ring is toothed with 44 teeth and includes a tone ring for accurate wheel speed sensor readings.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Fusion, Lincoln MKZ, Mercury Milan, and Lincoln MKX
• Addresses issues such as axle vibration and clicking noises during turns
• Resolves grease leakage caused by torn or degraded boots
• Corrects ABS sensor errors related to faulty or missing tone rings
• Improves driveline stability and smooth power transfer to wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft FD-8174, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to ensure long-term protection. This part is designed for direct replacement on compatible Ford, Lincoln, and Mercury models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8174 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut with a stake locking type for secure fitment. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and performance in driveline applications.
