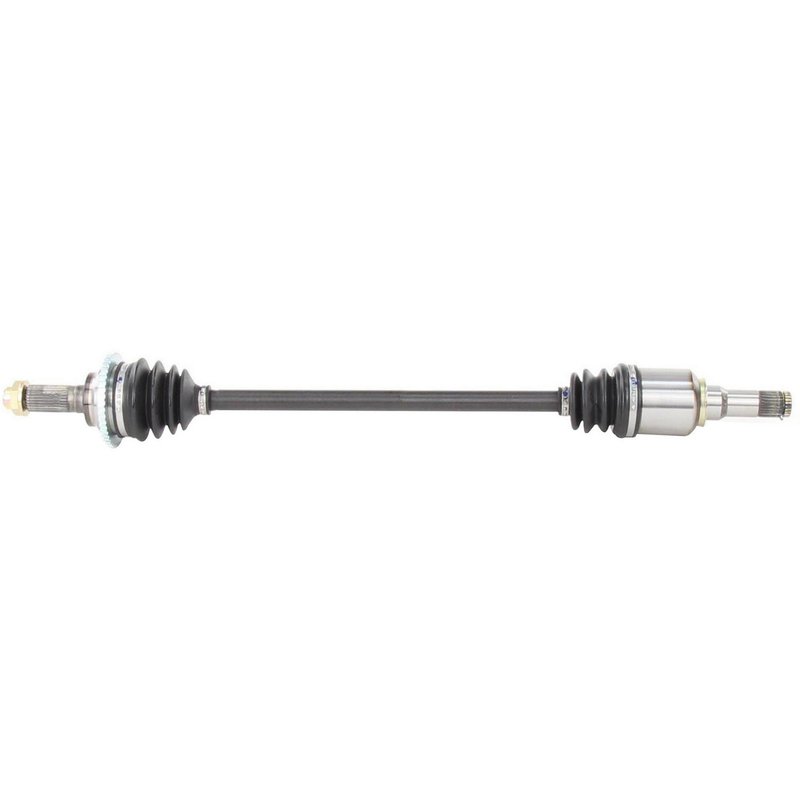

TrakMotive FD-8175 CV Axle Shaft - Rear Left

Reliable CV Axle Shaft for Ford Fusion, Lincoln MKZ, and Mercury Milan

The TrakMotive FD-8175 CV Axle Shaft is engineered to restore driveline performance for select Ford, Lincoln, and Mercury vehicles. Designed specifically for models like the Ford Fusion, Lincoln MKZ, and Mercury Milan, this new CV axle shaft ensures precise fitment and dependable operation.

• Compatible with Ford Fusion, Lincoln MKZ, and Mercury Milan
• Includes a 44-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Features a hex head axle nut with stake locking for secure installation
• Overall compressed length of 30.63 inches (778 mm) for exact fit

TrakMotive CV Axle Shaft Product Line Overview

The TrakMotive CV Axle Shaft line focuses on delivering new, high-quality constant velocity components designed to meet OEM specifications. This product line emphasizes durability and precise engineering, including features like ABS tone rings and neoprene boots to maintain driveline integrity and vehicle safety systems. The FD-8175 is part of this line, offering a reliable replacement option for vehicles requiring exact fit and function.

Detailed Product Features and Specifications

The FD-8175 CV Axle Shaft includes a 44-tooth ABS ring with a toothed design, which is essential for accurate ABS sensor readings. The ABS tone ring is included, ensuring compatibility with the vehicle’s anti-lock braking system. The axle nut is a hex head type, measuring 1 1/4 inches (31.8 mm) across the flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It features a stake locking mechanism and a thread size of M22x1.5 for secure fastening. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 28 splines, ensuring proper connection and torque transfer. The overall compressed length of 30.63 inches (778 mm) matches OEM specifications for the intended vehicle models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Fusion, Lincoln MKZ, and Mercury Milan
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates vibrations or clicking noises caused by failing CV joints
• Prevents grease leaks and contamination with durable neoprene boot
• Ensures secure wheel attachment with included stake-locking hex axle nut

Installation Notes and Tips

When installing the FD-8175 CV Axle Shaft, verify compatibility with your specific vehicle model and year. Use the included hex axle nut with the correct torque specifications and ensure the stake locking is properly engaged to prevent loosening. Inspect the neoprene boot for any damage during installation to maintain joint protection. Proper alignment of the splines on both inboard and outboard joints is critical for smooth driveline operation.

Quality Assurance and Warranty Information

This TrakMotive CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring to maintain vehicle safety system functionality. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and fitment for Ford Fusion, Lincoln MKZ, and Mercury Milan vehicles.
