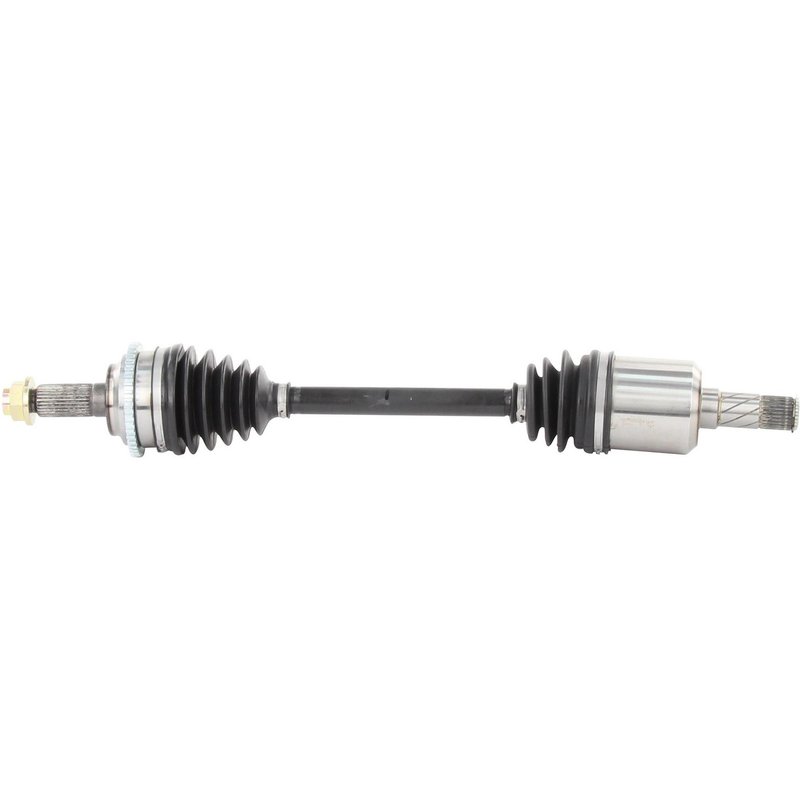

TrakMotive FD-8185 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8185

The TrakMotive CV Axle Shaft FD-8185 is engineered for reliable driveline performance in Ford Fusion and Mercury Milan vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Ford Fusion and Mercury Milan models
• Includes a neoprene boot for enhanced joint protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Axle nut with hex head, 1 1/4 inch (32 mm) hex size, and stake locking type
• Overall compressed length of 25.39 inches (645 mm)
• Inboard and outboard joints with 28 splines each for secure shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable constant velocity components designed to meet OEM specifications. This CV Axle Shaft FD-8185 is part of that line, offering a balance of quality materials and precise engineering to maintain driveline integrity and vehicle safety.

Detailed Product Description and Specifications

This CV Axle Shaft features a neoprene boot material that provides resistance to wear and environmental factors, extending the life of the joint. The ABS ring is a toothed type with 44 teeth, and the tone ring is included to ensure proper ABS sensor function. The axle nut is included with the shaft and features a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses a stake locking mechanism to secure the nut in place. Both the inboard and outboard joints have 28 splines, with the inboard joint designed as a male type and the outboard joint as conventional, ensuring compatibility with the specified vehicle models. The overall compressed length of the shaft is 25.39 inches (645 mm), matching the OEM dimensions for proper installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Ford Fusion and Mercury Milan
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leaks with durable neoprene boot
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Ford Fusion or Mercury Milan before installation
• Use proper torque specifications for the M22*1.5 axle nut with stake locking
• Inspect surrounding components such as wheel bearings and suspension for wear
• Ensure ABS sensor alignment with the toothed ABS ring during installation
• Replace any damaged boots or clamps to maintain joint protection

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft FD-8185 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes a neoprene boot and a stake-lock axle nut to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable driveline operation.
