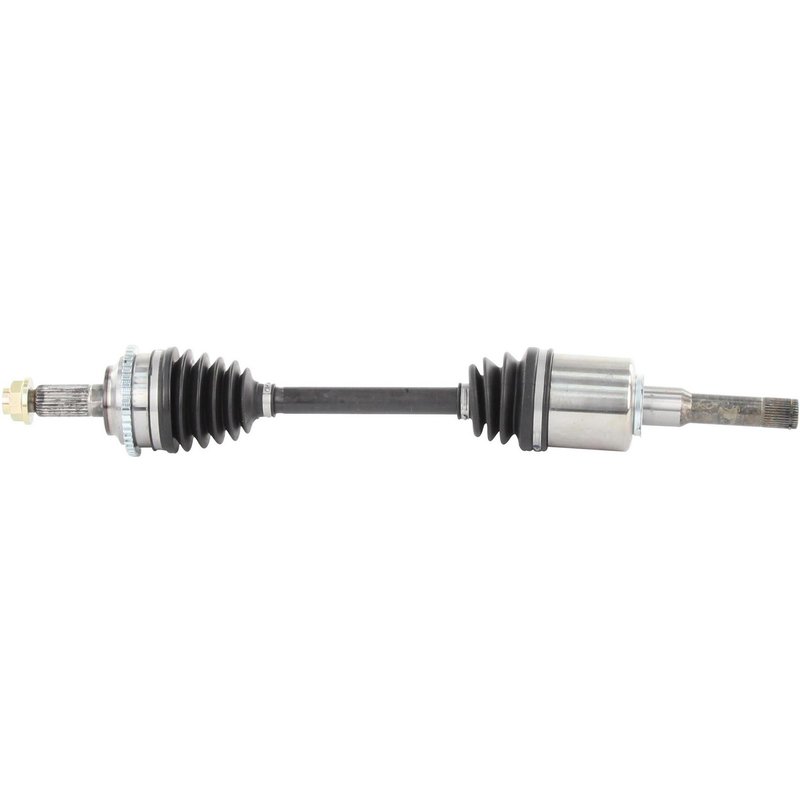

TrakMotive FD-8187 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8187

The TrakMotive CV Axle Shaft FD-8187 is engineered for reliable driveline performance in Ford Fusion and Mercury Milan vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Ford Fusion and Mercury Milan models
• Includes a neoprene boot for enhanced protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Comes with a hex head axle nut (M22*1.5 thread size)
• Overall compressed length of 26.61 inches (676 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components designed to meet OEM specifications. This CV Axle Shaft line provides new, high-quality parts that maintain proper driveline function and vehicle safety. The FD-8187 model features both inboard and outboard joints with male and conventional connection styles, respectively, ensuring compatibility with specific Ford and Mercury drivetrains.

Technical Specifications and Features

This CV axle shaft includes a 44-tooth toothed ABS ring with an included tone ring, which supports accurate wheel speed sensor readings for anti-lock braking systems. The axle nut is a 1 1/4 inch (32 mm) hex head type with a stake locking mechanism, measuring 1 inch (24 mm) in height and 1 1/2 inches (37 mm) in length. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint features 35 splines with a male connection style, while the outboard joint has 28 splines with a conventional connection style. The overall compressed length of 26.61 inches (676 mm) ensures proper fitment within the vehicle's driveline assembly.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Ford Fusion and Mercury Milan
• Addresses issues with torn or leaking CV boots
• Resolves ABS sensor errors related to damaged or missing tone rings
• Fixes axle shaft vibrations or clicking noises during turns
• Restores proper driveline function and vehicle stability

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft FD-8187, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. It is recommended to replace axle nuts and related hardware included with the part to ensure secure assembly.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8187 is a new, remanufactured-quality replacement part designed to meet or exceed OEM standards. It includes all necessary components such as the axle nut and ABS tone ring for a complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Ford Fusion and Mercury Milan vehicles.
