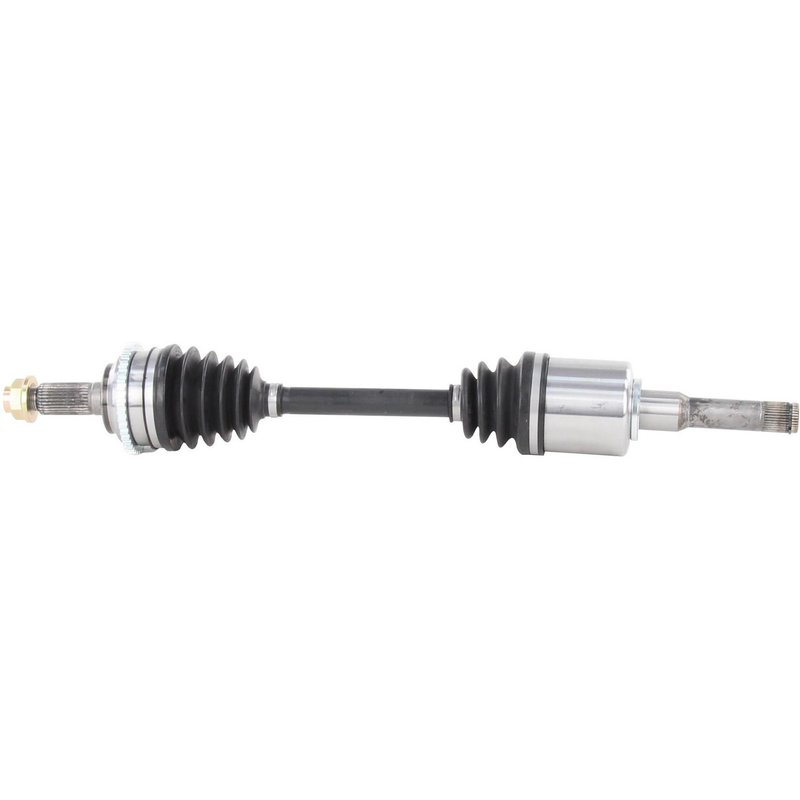

TrakMotive FD-8189 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8189 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.18 |
| Overall Compressed Length (mm) | 665 |
| Product line | CV Axle Shaft |
| Fits | Ford and Mercury · 5 vehicles |
New CV axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references Cardone New 66-2250, Cardone Reman 60-2250 and Dayco 72060 for the same application. See all 10.
CV Axle Shaft for Ford Fusion and Mercury Milan
TrakMotive FD-8189 is a new CV axle shaft for front left applications on select 2010-2012 Ford Fusion and 2010-2011 Mercury Milan models. It is built with a neoprene boot, a toothed ABS ring with 44 teeth, and the correct spline and joint configuration for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: FD-8189
- Front left axle for select Ford Fusion and Mercury Milan vehicles
- New construction with male inboard shaft connection
- Conventional outboard joint type
- Neoprene boot material for drivetrain protection
- ABS tone ring included with toothed ring design
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 26.18 in. (665 mm)
- Inboard splines: 35; outboard splines: 28
Detailed Description
TrakMotive FD-8189 is a CV axle shaft engineered for front left driveline replacement on 2010-2012 Ford Fusion and 2010-2011 Mercury Milan models. The axle uses a male inboard connection, a conventional outboard joint, and the specified spline counts to match the original drivetrain layout. The included ABS tone ring and 44-tooth toothed ring support vehicles equipped with ABS, while TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted.
This part cross-references Cardone New 66-2250 and Dayco 72060 for the same application. TrakMotive FD-8189 is part of the CV Axle Shaft line, focused on replacement driveline components built to match OE-style fitment requirements for Ford Fusion and Mercury Milan front left service.
What It Helps Repair
- Clicking or popping during turns caused by worn CV joints
- Vibration under acceleration from a worn axle shaft
- Torn or leaking axle boot conditions
- ABS warning concerns related to a damaged tone ring or axle sensor interface
- Driveline noise from excessive axle play or spline wear
Installation Notes and Tips
Verify front left fitment by year, make, model, and axle configuration before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle requirements. Inspect the hub, seals, and mating components for wear before installing the new axle shaft, and follow the vehicle service procedure for torque and staking.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and states that the company is ISO 9001:1007 and TS 16949:2009 certified. Manufacturer coverage includes a limited lifetime warranty.
Vehicle Fitment
- Fits 2010-2012 Ford Fusion, front left.
- Fits 2010-2011 Mercury Milan, front left.
| Year | Make | Model | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2012 | Ford | Fusion | — | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2011 | Ford | Fusion | Automatic | 3.0L | V6 | FLEX | Front Left | CV Axle Shaft |
| 2011 | Mercury | Milan | — | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2010 | Ford | Fusion | — | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2010 | Mercury | Milan | — | 3.0L | V6 | — | Front Left | CV Axle Shaft |
