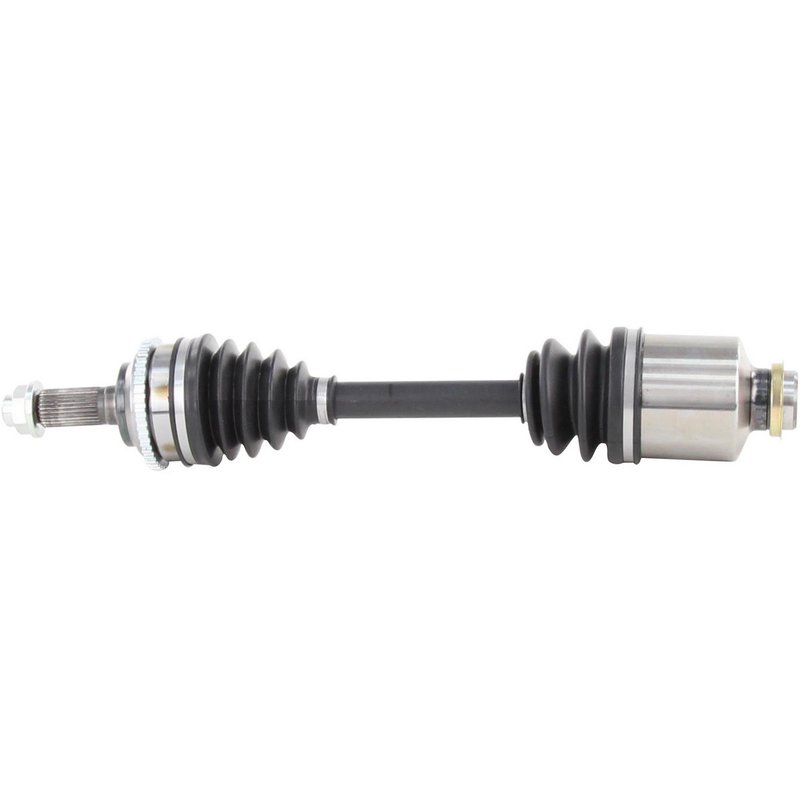

TrakMotive FD-8190 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Ford Fusion and Lincoln MKZ

The TrakMotive AAR CV Axle Shaft FD-8190 is engineered to provide dependable driveline performance for select Ford Fusion and Lincoln MKZ models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Ford Fusion and Lincoln MKZ models
• Includes ABS tone ring with 44 toothed ring teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced joint protection and longevity
• Comes with a hex head axle nut (M22*1.5 thread size) featuring a stake locking mechanism
• Overall compressed length of 21.85 inches (555 mm) for exact fit

About the TrakMotive AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering high-quality constant velocity components designed to meet OEM specifications. This product line emphasizes precise engineering, including features like ABS tone rings and durable neoprene boots, to maintain driveline integrity and vehicle safety. The FD-8190 model exemplifies these standards with its comprehensive design tailored for Ford and Lincoln vehicles.

Detailed Product Features and Specifications

This CV axle shaft features a female inboard joint type with 28-2 splines and a conventional outboard joint with 28 splines, ensuring secure shaft connections. The included ABS tone ring is toothed with 44 teeth, supporting accurate anti-lock braking system functionality. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut is a hex type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and 1 1/2 inch (37 mm) length, secured by a stake locking method to prevent loosening during operation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Ford Fusion and Lincoln MKZ
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boots
• Ensures secure wheel attachment with included locking axle nut

Installation Notes and Tips

When installing the FD-8190 CV axle shaft, verify compatibility with your specific Ford Fusion or Lincoln MKZ model year. Use the included hex head axle nut with the specified M22*1.5 thread size and stake locking method to secure the axle properly. Inspect the ABS tone ring alignment to maintain accurate wheel speed sensor readings. It is recommended to replace axle nuts with the new ones provided to ensure proper locking and safety.

Quality Assurance and Warranty

The TrakMotive AAR CV Axle Shaft FD-8190 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes an ABS tone ring and a neoprene boot for long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Ford Fusion and Lincoln MKZ vehicles.
